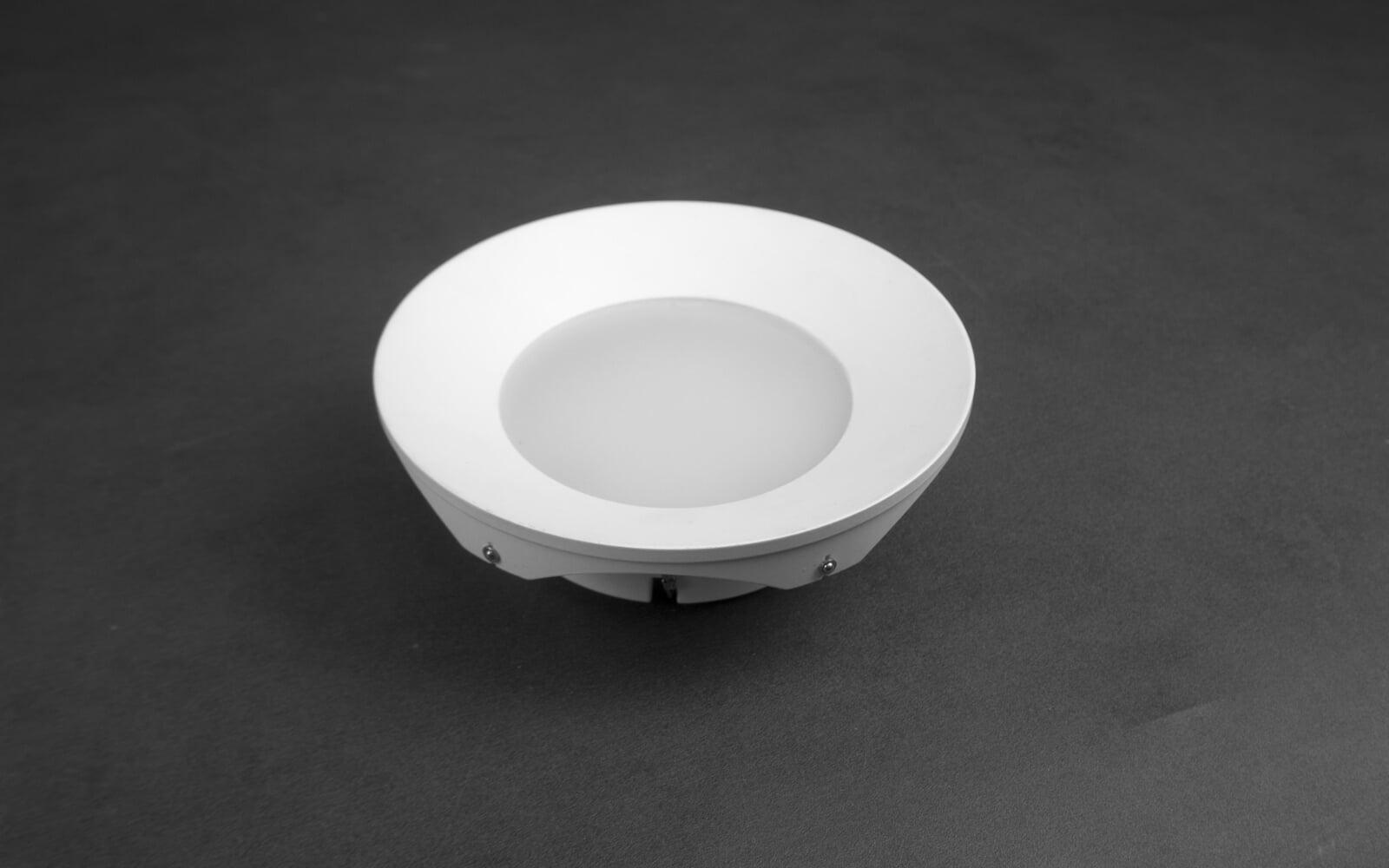

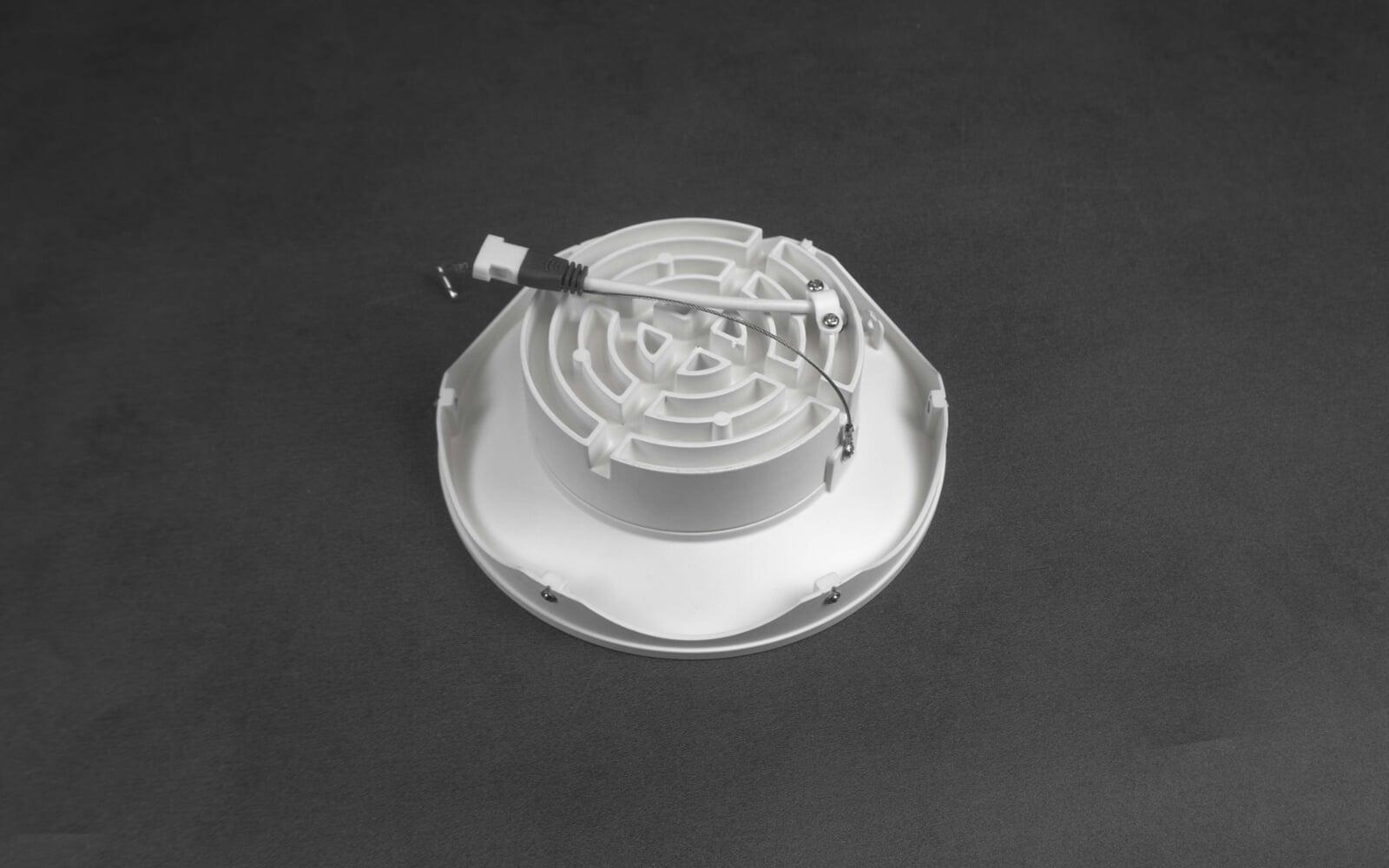

LN-CR-RIM-D24
- Max. 15W
- CREE CRI80+, 90+
- Beam angle 120
- UGR<17
- Mesh control, 0-10V, DALI optional
Need more help？
Power:*
15W
Input Voltage:
AC220-240V, or AC100-250V optional
Dimming：
On/Off, TRIAC, 0/1-10V, DALI optional
Class：
III SELV
Ambient Temperature：
0 - 40℃
Relative humidity：
<85%
LED Brand:
OSRAM, SANAN
LED Chip Qty:
60 pcs
LED Type:
SMD2835
C.C.T.：
3000K, 4000K, 6000K
Color Randering Index:
>80,>90
Lumen Maintenance:
LM80
SDCM:
4
Beam Angle:
120°
Luminous Flux (LED):*
1550lm
Lumen Efficiency(LED)：*
120lm/W
Luminous Flux (Luminare):*
1200lm
Lumen Efficiency (Luminare):*
80lm/W
Body & Heatsink:
Die-casting Aluminum
Optics:
Optical PMMA
Installation:
Ceiling recessed
Surface Treament:
Powder-coated, Ring: sanded black
Housing Color:
white
IP Grade:
IP20
Size:
D160.4xH47.6mm
Cutout:
fit for RIM24
Certificates:
CE
- different power, CRI, C.C.T..
- other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.
- other Drivers, OSRAM, PHILIPS, Meanwell, KEGU, Lifud, etc.
- dimming functions: TRIAC, 0/1-10V, DALI, Mesh, 2.5G
- emergency kit with specific duration.
LN-CR-RIM-D18
- Max. 10W
- CREE CRI80+, 90+
- Beam angle 120
- UGR<17
- Mesh control, 0-10V, DALI optional
Need more help？
Power:*
10W
Input Voltage:
AC220-240V, or AC100-250V optional
Dimming：
On/Off, TRIAC, 0/1-10V, DALI optional
Class：
III SELV
Ambient Temperature：
0 - 40℃
Relative humidity：
<85%
LED Brand:
OSRAM, SANAN
LED Chip Qty:
48 pcs
LED Type:
SMD2835
C.C.T.：
3000K, 4000K, 6000K
Color Randering Index:
>80,>90
Lumen Maintenance:
LM80
SDCM:
4
Beam Angle:
120°
Luminous Flux (LED):*
960lm
Lumen Efficiency(LED)：*
120lm/W
Luminous Flux (Luminare):*
800lm
Lumen Efficiency (Luminare):*
80lm/W
Body & Heatsink:
Die-casting Aluminum
Optics:
Optical PMMA
Installation:
Ceiling recessed
Surface Treament:
Powder-coated, Ring: sanded black
Housing Color:
white
IP Grade:
IP20
Size:
D115.4xH45.6mm
Cutout:
fit for RIM18
Certificates:
CE
- different power, CRI, C.C.T..
- other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.
- other Drivers, OSRAM, PHILIPS, Meanwell, KEGU, Lifud, etc.
- dimming functions: TRIAC, 0/1-10V, DALI, Mesh, 2.5G
- emergency kit with specific duration.

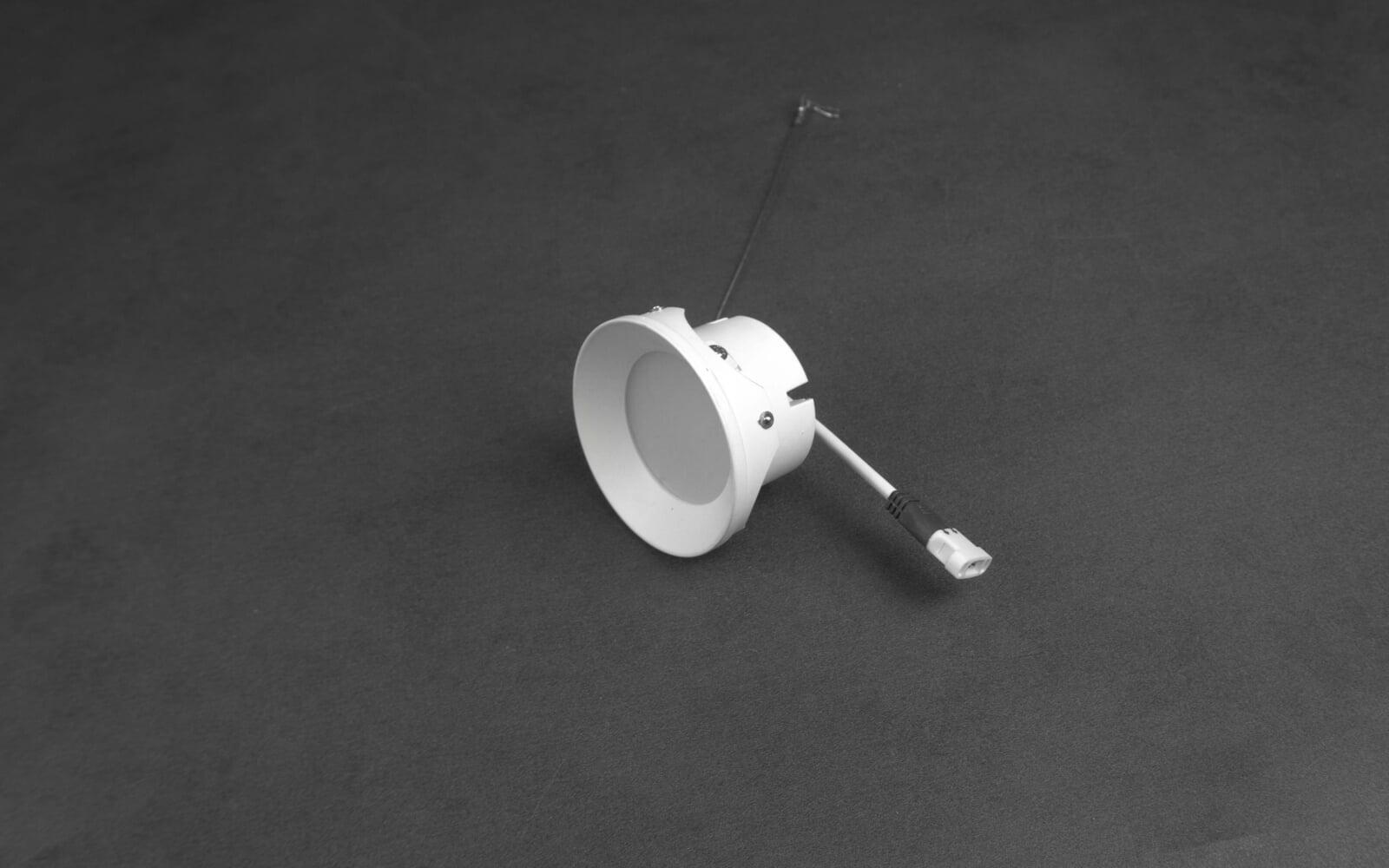

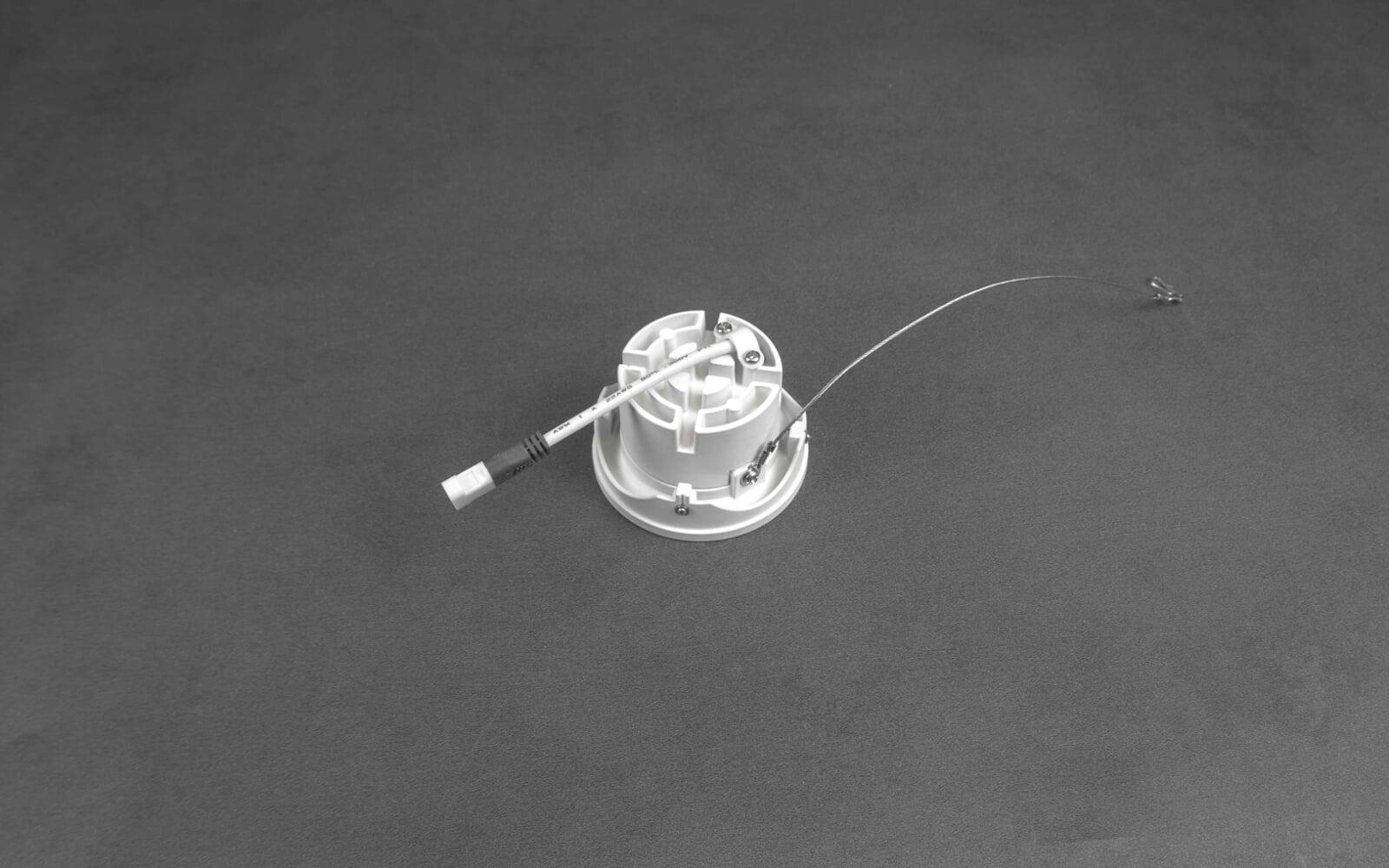

LN-CR-RIM-D12
- Max. 7W
- CREE CRI80+, 90+
- Beam angle 120
- UGR<17
- Mesh control, 0-10V, DALI optional
Need more help？
Power:*
7W
Input Voltage:
AC220-240V, or AC100-250V optional
Dimming：
On/Off, TRIAC, 0/1-10V, DALI optional
Class：
III SELV
Ambient Temperature：
0 - 40℃
Relative humidity：
<85%
LED Brand:
OSRAM, SANAN
LED Chip Qty:
22 pcs
LED Type:
SMD2835
C.C.T.：
3000K, 4000K, 6000K
Color Randering Index:
>80,>90
Lumen Maintenance:
LM80
SDCM:
4
Beam Angle:
120°
Luminous Flux (LED):*
650lm
Lumen Efficiency(LED)：*
120lm/W
Luminous Flux (Luminare):*
500lm
Lumen Efficiency (Luminare):*
75lm/W
Body & Heatsink:
Die-casting Aluminum
Optics:
Optical PMMA
Installation:
Ceiling recessed
Surface Treament:
Powder-coated, Ring: sanded black
Housing Color:
white
IP Grade:
IP20
Size:
D70.4xH41.6mm
Cutout:
fit for RIM12
Certificates:
CE
- different power, CRI, C.C.T..
- other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.
- other Drivers, OSRAM, PHILIPS, Meanwell, KEGU, Lifud, etc.
- dimming functions: TRIAC, 0/1-10V, DALI, Mesh, 2.5G
- emergency kit with specific duration.
