CMG-TS Spotlight
Magnetic Wall Washer Series 20W
Wall Washer on Magnetic Track

LUNA Magnetic Track System is a new comprehensive and flexible system to design light in space.

48VDC low-voltage safe power supply, allowing customers to safely put their hands into the track to disassemble and assemble the lamps.

Customers pre-installed the track: Extruded aluminum housing slots, and then matched different surface lighting, spotlights, chandeliers, wall washer and other lamps according to the actual application scene. The light elements snap in place and connect automatically though the magic of magnets.


Applications

architectural, commercial, exhibition areas, transit areas, corridors, shops, display windows, service areas, offices, staterooms, schools, halls, households, etc

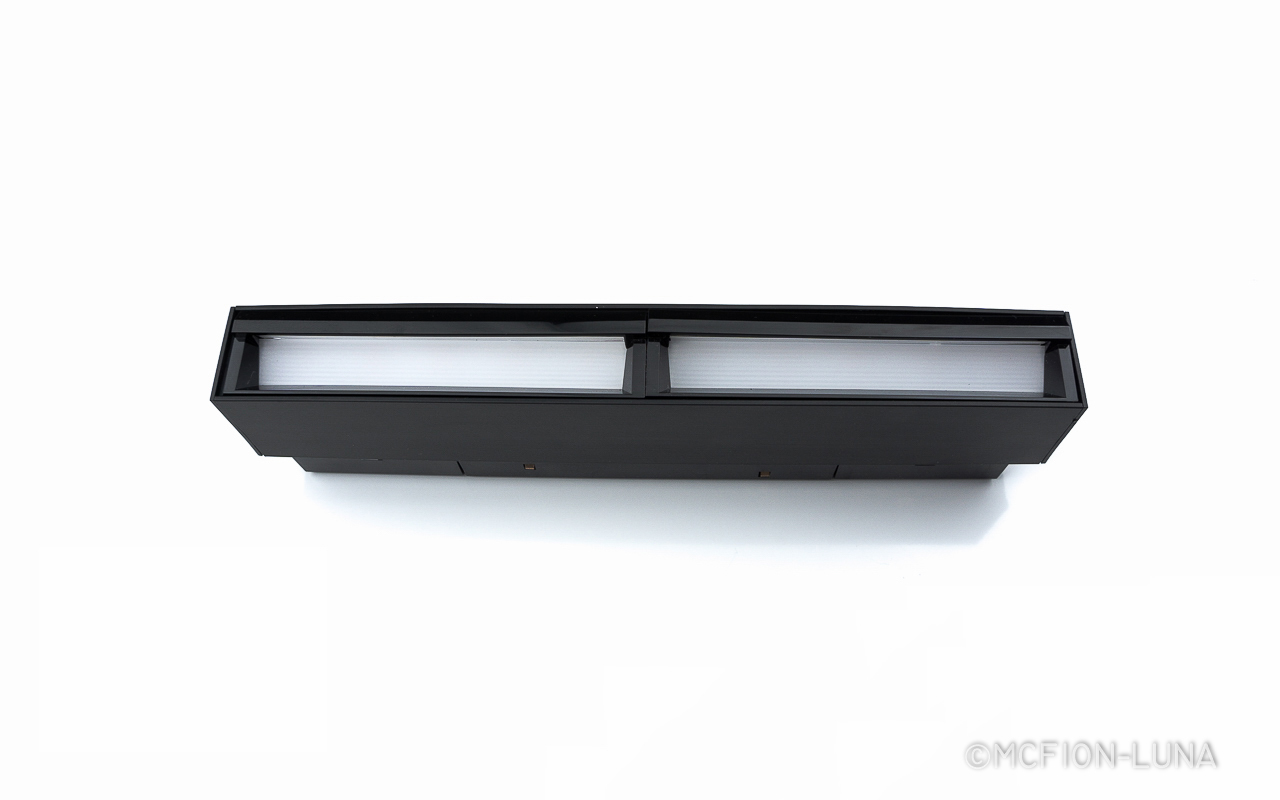

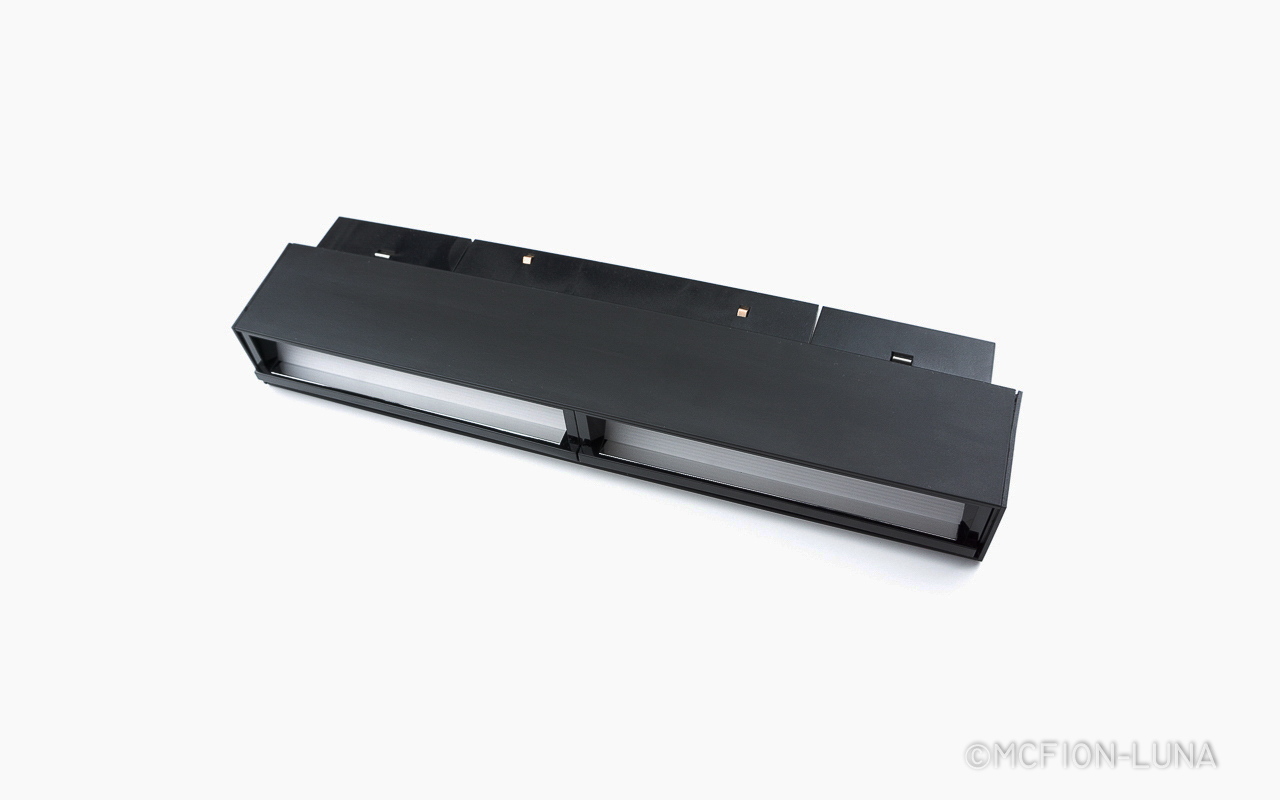

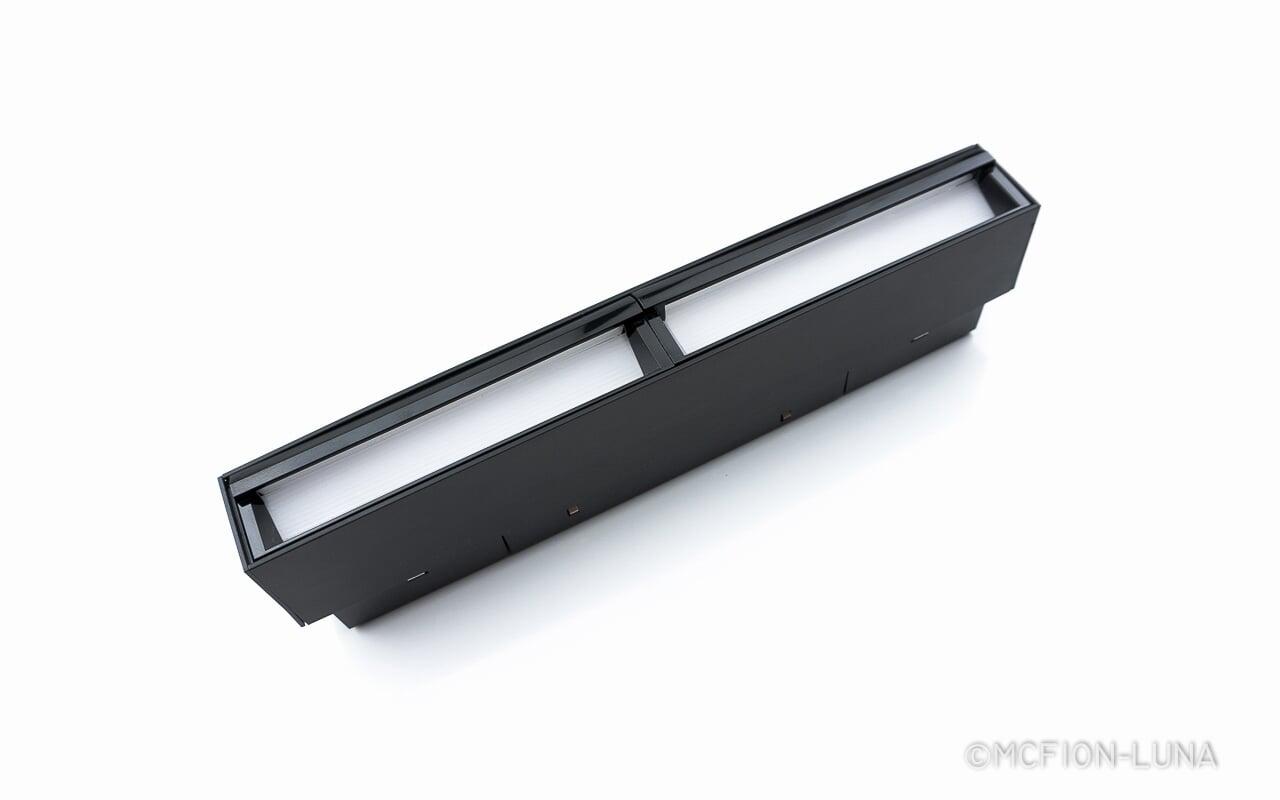

LN-CMG-SW10

  • Max. 20W, 12-20W optional
  • CREE CRI93
  • Beam angle wall washer
  • Mesh control, 0/1-10V, DALI optional

Need more help?

Inquiry Now
Electrical
LEDs
Optical
Materials
Downloads
On request
Electrical

Power:*

20W Max.  12-20W optional

Input Voltage:

DC48V

Dimming:

On/Off, 0/1-10V, DALI, Mesh wireless

Class:

III SELV

Ambient Temperature:

0 - 40℃

Relative humidity:

<85%

LEDs

LED Brand:

OSRAM, CREE optional

LED Chip Qty:

10pcs

LED Type:

SMD3030

C.C.T.:

3000K, 4000K, 6500K

Color Randering Index:

>80, or >90

Lumen Maintenance:

LM80

SDCM:

4 steps

Optical

Beam Angle:

120°

Luminous Flux (LED):*

2200lm

Lumen Efficiency(LED):*

125lm/W (CRI90)

Luminous Flux (Luminare):*

1500lm

Lumen Efficiency (Luminare):*

75lm/W

Materials

Body & Heatsink:

Die-casting Aluminum

Optics:

Optical PMMA

Installation:

M35 Magnetic Track

Surface Treament:

Powder-coated

Housing Color:

Matt Black

IP Grade:

IP20

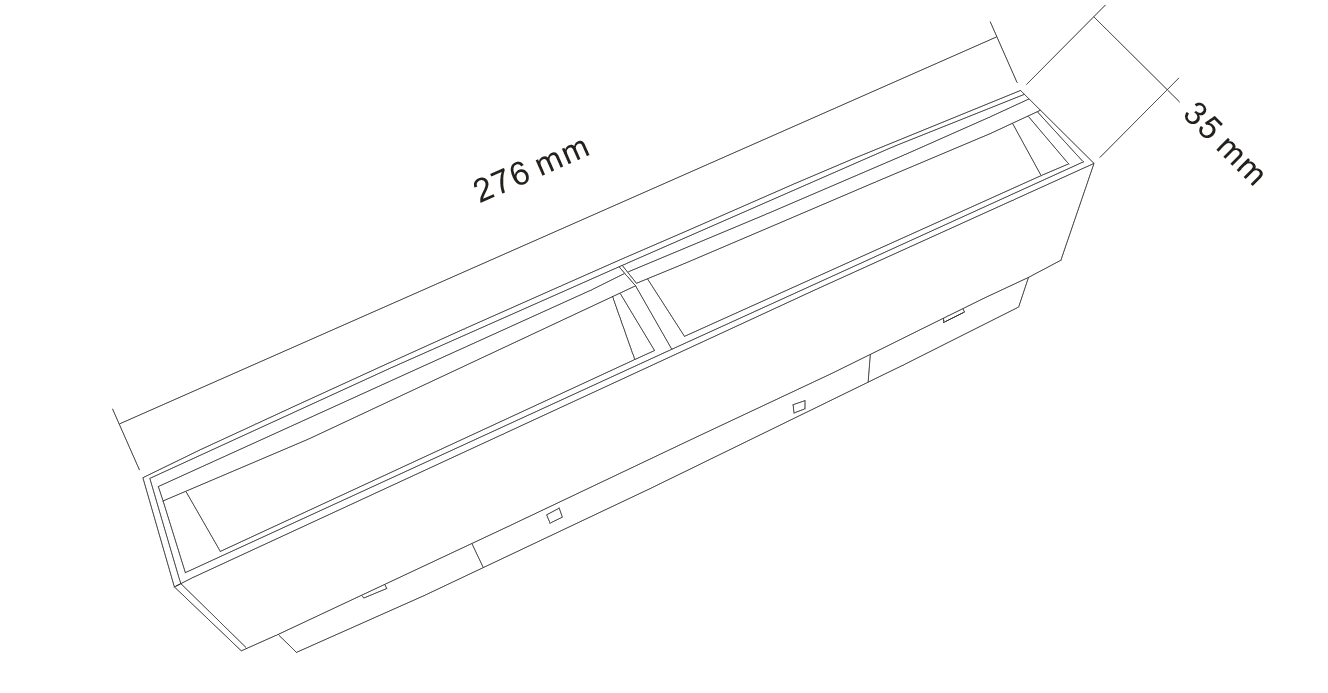

Size:

L276mm, W35mm, H100mm

Cutout:

N/A

Certificates:

CE

Downloads
Product Specification Download
On request

- different power, CRI, C.C.T..

- other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.

- other Drivers optional.

- dimming functions:  0/1-10V, DALI, Mesh optional.

- emergency kit with specific duration.

    *Due to the differences in test instruments and electronic components, the specific data may vary. Please confirm the specific parameters of the lamp before ordering to avoid misunderstanding. The luminous flux data and electrical data on the website will have  +/-10% tolerance and measured at Tc 25℃ indoors.

    *Dimensions and specifications subject to alterations without notice.
