Commercial & Decorating lighting | LUNA MCFION Lighting

LIKA

Surface Mounted Spotlight

Product Details

    • IP20 or IP43 anti-fog
    • UGR<19 anti-glare
    • Die-casting Aluminum body, rust-proof, excellent heat extraction
    • 360° adjustable, with 15°/24°/36° beam angles optional
    • Surface mounted with a comfortable IKEA feel
    • Ring color options: white, black, gold, chrome, silver
    • 6W & 12W two power heads
    • 1, 2, 3, 4 heads available
    • CRI up to 90
    • OSRAM or CREE chips used
    • TRIAC, 0-10V or DALI, bluetooth wireless dimming on requested

Lighting Effect

lighting effect of wall spot

Track spot lighting effect Track medium lighting effect track flood lighting effect

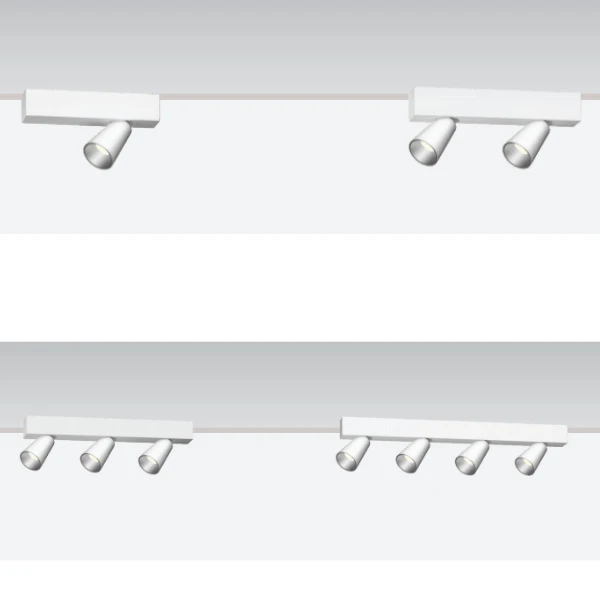

Applications & Gallery

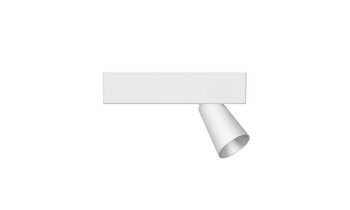

one head LIKA 5/10W

One Head 5W 10W optional

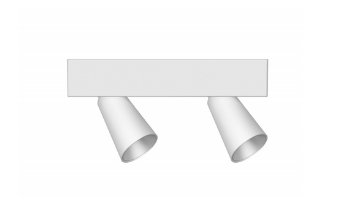

2 heads LIKA 5/10W

Two Heads 5W 10W optional

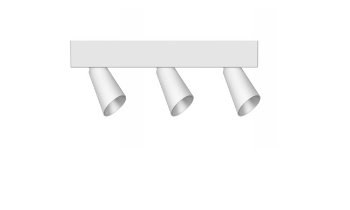

3 heads LIKA 5/10W

Three Heads 5W 10W optional

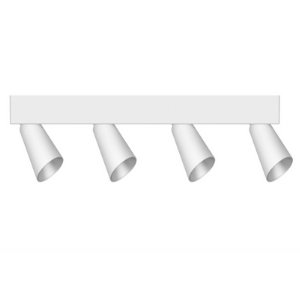

4 heads Lika spotlight

Four Heads 5W Only

Five Color Rings Optional

F Mark, suitable for flammable surface install Need to be grouded IP grade 20 indoor use IP grade 43 anti-fog optical designed Type II double isolated product High Color Rendering Index Anti-glare, comfortable for eyes Optional can be TRIAC dimming  Optional can be DALI dimming Optional can be wireless bluetooth dimming

used COB led chips

Click below button to fill an online form.

We are happy to reply within 24 hours.

Inquiry Now

LN-CCX-LIKA-5-1

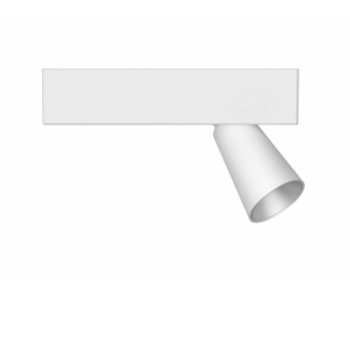

LN-CCX-LIKA-5-1-image

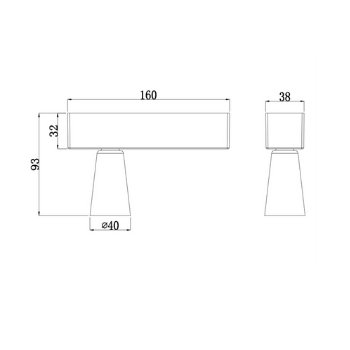

LN-CCX-LIKA-5-1-Dimension
 ModelPowerGear Box Size Lamp Size LED Flux C.C.T. CRIBeam angle 
                                                  LN-CCX-LIKA-5-15WL160xW38xH32mm
 D40mm x H93mm cob CREE/OSRAMLED 480lm
Lamp 350lm
3000K/4000K/6500K>80, >9015°/24°/38°

Scroll right to see more.

LN-CCX-LIKA-5-2

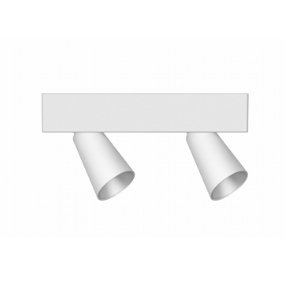

LN-CCX-LIKA-5-2-image

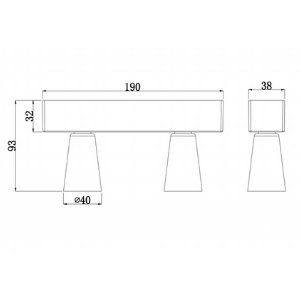

LN-CCX-LIKA-5-1-Dimension
 ModelPowerGear Box Size Lamp Size LED Flux C.C.T. CRIBeam angle 
 LN-CCX-LIKA-5-25Wx2L190xW38xH32mm
 D40mm x H93mm cob CREE/OSRAMLED 480lmx2
Lamp 350lmx2
3000K/4000K/6500K>80, >9015°/24°/38°

Scroll right to see more.

LN-CCX-LIKA-5-3

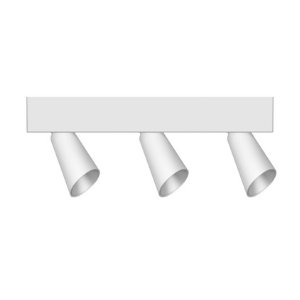

LN-CCX-LIKA-5-3-image

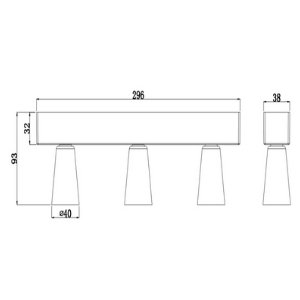

LN-CCX-LIKA-5-1-Dimension
 ModelPowerGear Box Size Lamp Size LED Flux C.C.T. CRIBeam angle 
  LN-CCX-LIKA-5-35Wx3L296xW38xH32mm
 D40mm x H93mm cob CREE/OSRAMLED 480lmx3
Lamp 350lmx3
3000K/4000K/6500K>80, >9015°/24°/38°

Scroll right to see more.

LN-CCX-LIKA-5-4

LN-CCX-LIKA-5-4-image

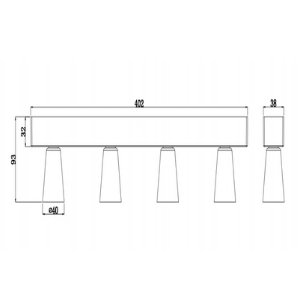

LN-CCX-LIKA-5-4-Dimension
 ModelPowerGear Box Size Lamp Size LED Flux C.C.T. CRIBeam angle 
  LN-CCX-LIKA-5-45Wx4L402xW38xH32mm
 D40mm x H93mm cob CREE/OSRAMLED 480lmx4
Lamp 350lmx4
3000K/4000K/6500K>80, >9015°/24°/38°

Scroll right to see more.

LN-CCX-LIKA-10-1

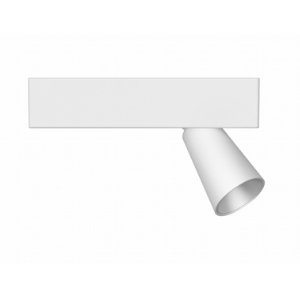

LN-CCX-LIKA-10-1-image

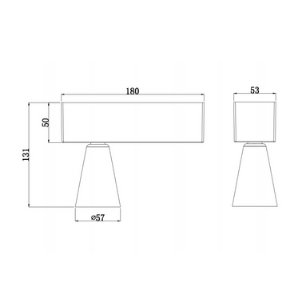

LN-CCX-LIKA-10-1-Dimension
 ModelPowerGear Box Size Lamp Size LED Flux C.C.T. CRIBeam angle 
  LN-CCX-LIKA-10-110WL180xW53xH50mm
 D57mm x H131mm cob CREE/OSRAMLED 1000lm
Lamp 750lm
3000K/4000K/6500K>80, >9015°/24°/38°

Scroll right to see more.

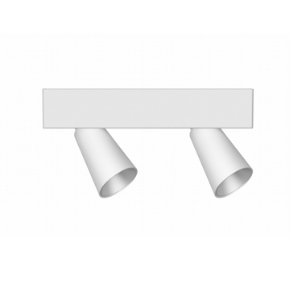

LN-CCX-LIKA-10-2

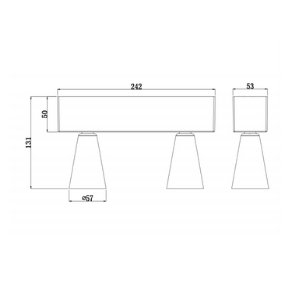

LN-CCX-LIKA-10-2-Dimension
LN-CCX-LIKA-10-1-Dimension
 ModelPowerGear Box Size Lamp Size LED Flux C.C.T. CRIBeam angle 
  LN-CCX-LIKA-10-210W x2L242xW53xH50mm
 D57mm x H131mm cob CREE/OSRAMLED 1000lmx2
Lamp 750lmx2
3000K/4000K/6500K>80, >9015°/24°/38°

Scroll right to see more.

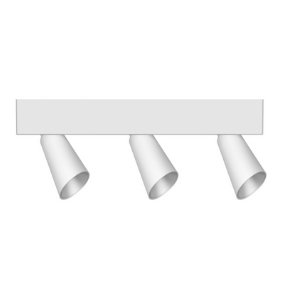

LN-CCX-LIKA-10-3

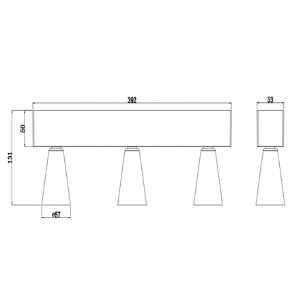

LN-CCX-LIKA-10-3-Dimension
LN-CCX-LIKA-10-3-Dimension
 ModelPowerGear Box Size Lamp Size LED Flux C.C.T. CRIBeam angle 
  LN-CCX-LIKA-10-310W x3L292xW53xH50mm
 D57mm x H131mm cob CREE/OSRAMLED 1000lmx3
Lamp 750lmx3
3000K/4000K/6500K>80, >9015°/24°/38°

Scroll right to see more.

Downloads

Catalogue Download
