HI Track light

Hidden Track Lighting System

Product Details

    • 10W, 20W, 30W three sizes
    • White & Chrome black front cups
    • Multiple angle adjustable
    • 15°/24°/36° beam angles optional
    • Single or double sides installation
    • Track lamp, or spotlight 2 in one.
    • CRI up to 90
    • OSRAM or CREE chips used
    • DALI,  dimming on requested
  •     Best fit for showrooms or stores.

Lighting Effect

lighting effect of wall spot

Surface spot lighting effect Surface medium lighting effect Surface wide lighting effect Track spot lighting effect Track medium lighting effect track flood lighting effect

Applications & Gallery

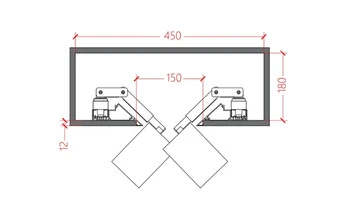

double sides hidden track installation

Double sides tracks installation

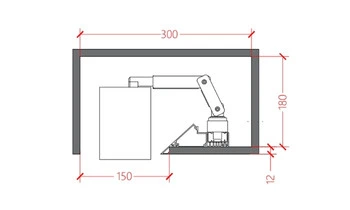

Single side track installation

Single side track installation

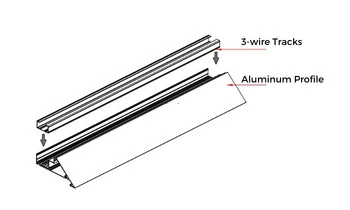

Aluminum profile & track installation

Aluminum profile & track installation

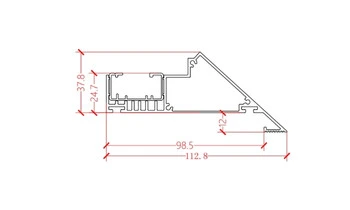

Hidden track aluminum profile image

Hidden track aluminum profile

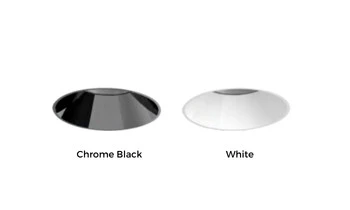

HI hidden track front cup optional

HI hidden track front cup optional

F Mark, suitable for flammable surface install Need to be grouded IP grade 20 indoor use IP grade 43 anti-fog optical designed Type II double isolated product High Color Rendering Index Anti-glare, comfortable for eyes Optional can be TRIAC dimming  Optional can be DALI dimming Optional can be wireless bluetooth dimming

used COB led chips

Click below button to fill an online form.

We are happy to reply within 24 hours.

Inquiry Now

LN-CTO-HI-10

LN-CTO-HI-10

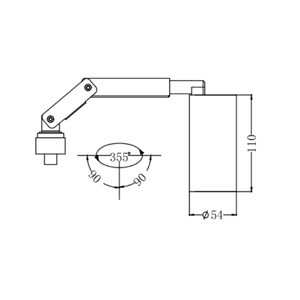

LN-CTO-HI-10-Dimension
 ModelPowerGear Box Size Lamp Size LED Flux C.C.T. CRIBeam angle 
 LN-CTO-HI-10
10WL180xW33.5xH18.5mm
 D54mm x H110mm cob CREE/OSRAMLED 1050lm
Lamp 850lm
3000K/4000K/6500K>80, >9015°/24°/36°

Scroll right to see more.

LN-CTO-HI-20

LN-CTO-HI-20

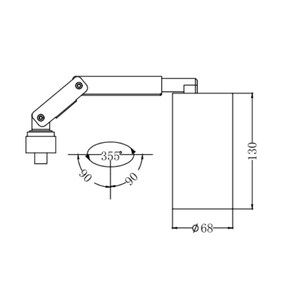

LN-CTO-HI-20-Dimension
 ModelPowerGear Box Size Lamp Size LED Flux C.C.T. CRIBeam angle 
 LN-CTO-HI-20
20WL180xW33.5xH18.5mm
 D68mm x H130mm cob CREE/OSRAMLED 2100lm
Lamp 1700lm
3000K/4000K/6500K>80, >9015°/24°/36°

Scroll right to see more.

LN-CTO-HI-30

LN-CTO-HI-30

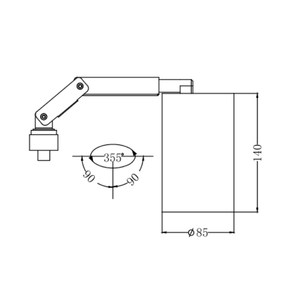

LN-CTO-HI-30-Dimension
 ModelPowerGear Box Size Lamp Size LED Flux C.C.T. CRIBeam angle 
 LN-CTO-HI-30
30WL180xW33.5xH18.5mm
 D85mm x H140mm cob CREE/OSRAMLED 3150lm
Lamp 2550lm
3000K/4000K/6500K>80, >9015°/24°/36°

Scroll right to see more.

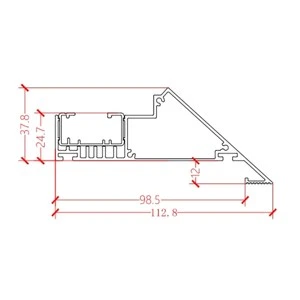

LN-CTO-HI-T
​Aluminum Profile

LN-CTO-HI-T-Dimension

Downloads

Catalogue Download
