2021 The Ultimate LED Magnetic Track Lighting Guide

2021.05.04 10:31 AM By 马克

2021 The Ultimate
​LED Magnetic Track Lighting Guide

Q&A

What's LED magnetic track lighting system?

LED magnetic track lighting system is a latest track lighting system. It runs in a safe low voltage DC48V in all the tracks, and it's much safe comparing to the normal direct electricity input track system.



The lamps connect to the tracks by magnetic force, and sure with spring enforcement structures. You can slide any lamps within the track even when it's on power.



The system provides more than 3 ways of installation, can fit in many applications, such as home, shops, offices, hotels, etc. Not to speak of a number of lamps with multiple functions.



It can dim using 0/1-10V, or even color changing using DALI or Bluetooth wireless control. And now can connect to intelligent home system as well.

How do you install a magnetic track light?

The magnetic track light system offers three or four different type of installation.


Recessed Install: You can use the recessed install if you have a false ceiling. Imaging this, you can not only install the magnetic track system in the ceiling, but also on walls and connect with the ceiling parts by the providing accessories. Using external power supply and place it in a proper place where easy for maintenance.


Ceiling Mounted Install: Do not have a false ceiling or suspended ceiling? Not a problem. You can use the ceiling mounted magnetic tracks. 100% as the recessed type, you can install the tracks and lamps on ceilings, or walls. Not only choosing an external power supply, you can have integrated power supplies for the ceiling mounted type for good looking.


Suspended Install: If you have a tall ceiling, such as hotel halls, or offices, No worries, use the suspended magnetic tracks. The formation of the tracks are lot more flexible than the normal track lighting.


You might need more skillful workers for trimless (border-less) installation. For the other installation method, you will find it's more easy than you expected.

Can I add more lights to track lighting?

Yes, sure you can.


Before adding more lamps, make sure you have installed big enough transformers in your magnetic track system. For example, you have installed a 350Watts capacity of power supply, and only fits in 100Watts of lamps for now. Surely you could place 200Watts more power of lamps in this system.


Be aware of NOT to use over 80% of the total capacity of the power supply for a stable and long operational system.

Are there different types of track lighting?

Only spotlights in track system? It's behind the times.


By using the magnetic track lighting system, you can have all lamps you could imaging of:

Linear down light, Linear spotlight, track spotlight, Swing-able (bendable) spotlight, decorative suspended lamp, etc.


what is more?


Dimming, using familiar 0/1-10V, DALI.

Dimming and also color changing using DALI 2 and Bluetooth.

Usage scenarios by intelligent wireless smart control system.

and many more.



How does the magnetic track system work?

The magnetic track lighting system runs in DC48V, so we need a AC to DC transformer before connect it into electricity.


You could choose using external power supply or integrated one. But make sure the Input Voltage of the power supply fits the voltage of your country. For example, AC220V in Europe, and AC110V in the United States.


There is a separated driver for Each magnetic track lamp in the gear box with strong magnets. This driver's input voltage is DC48V which is the standard power system runs inside the magnetic tracks. This DC48V input drivers not just provides stable voltage and current to the LED chips inside the lamps, but also gives more functionality, such as 0/1-10V dimming, DALI control, Bluetooth wireless control, etc.


When you plug a magnetic track lamp into the system, the lamp will on. And you can control it by the corresponding control gears or Apps.


This is how the magnetic track lighting system works.



Why choosing Magnetic Track Lighting System?

A fashion looking. This system matches the minimalist design style, and of course, many other main stream designing styles.


Abundant optional lamps. You can find more than 20 different types of magnetic track lamps to achieve your lighting design plan.


Powerful functions. Easy to dim, change color temperatures, and even intelligent control system.


Safe. Running in DC48V provides a much safer environment.


Flexible. You can add, move, remove lamps easily without any approval electrician. Just plug in, and out.


The shortest answer is doing. Consider the magnetic track lighting system into your current lighting plan now.



Quick links

The Magnetic Track System

Magnetic Tracks

​Four M20 Magnetic Tracks

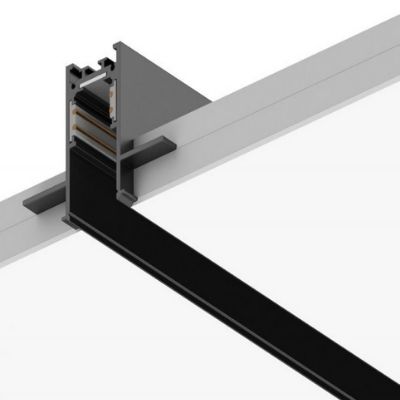

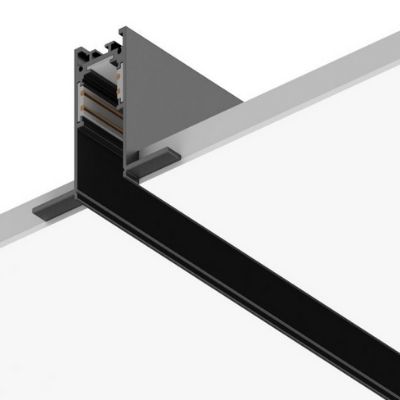

M20-TLF1 Built-in recessed track
M20-TLF1 Built-In Recessed Track
M20-TLF2 Built-In Recessed Track
M20-TLF2 Built-In Recessed Track
M20-TC Ceiling Mounted Track
M20-TC Ceiling Mounted Track
M20 -TP Pendant Track
M20 -TP Pendant Track

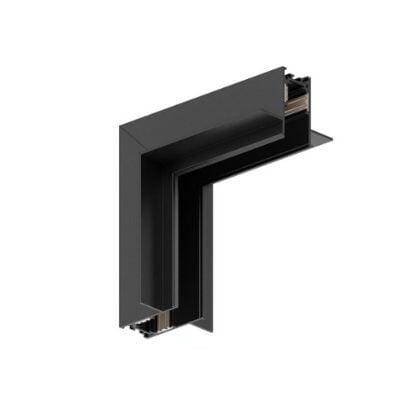

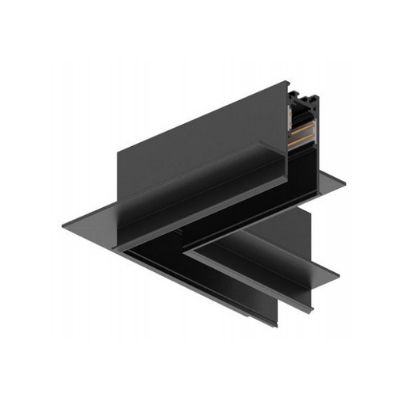

M20-TFL1 Recessed track L shape joints

M20-TLF1 Built-in recessed track
M20-TLF1 Built-In Recessed Track
CMG2-TFL1-01
CMG2-TFL1-02
CMG2-TFL1-03

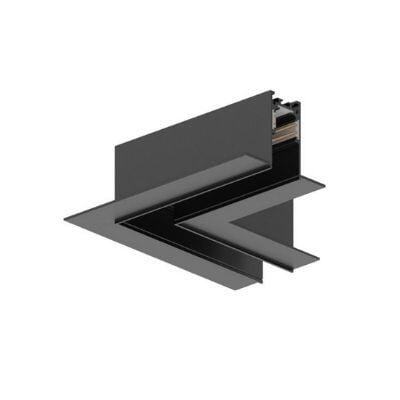

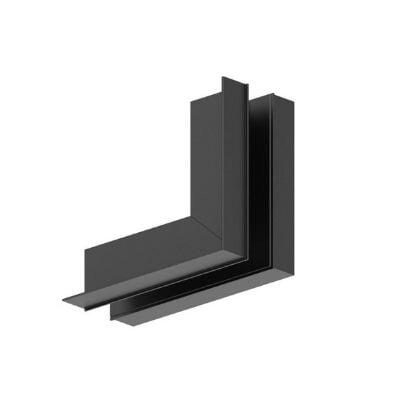

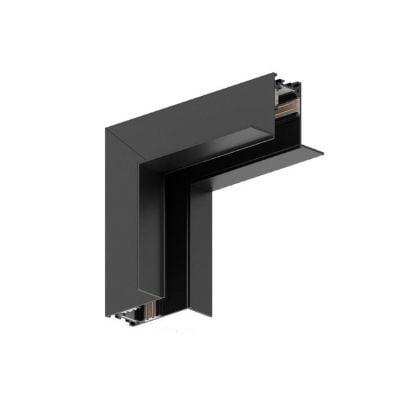

M20-TFL2 Recessed track L shape joints

M20-TLF2 Built-In Recessed Track
M20-TLF2 Built-In Recessed Track
CMG2-TFL2-01
CMG2-TFL2-01
CMG2-TFL2-02
CMG2-TFL2-02
CMG2-TFL2-03
CMG2-TFL2-03

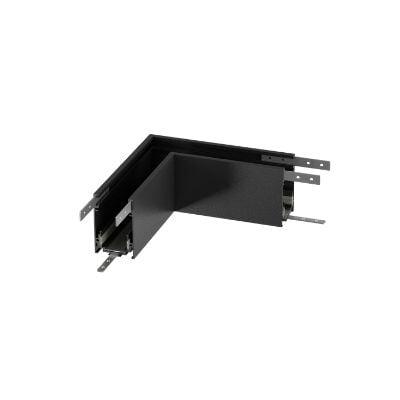

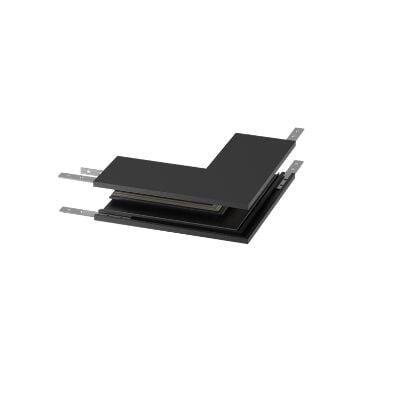

M20-TC Ceiling mounted track L shape joints

M20-TC Ceiling Mounted Track
M20-TC Ceiling Mounted Track
CMG2-TC-01
CMG2-TC-01
CMG2-TC-02
CMG2-TC-02
CMG2-TC-03
CMG2-TC-03

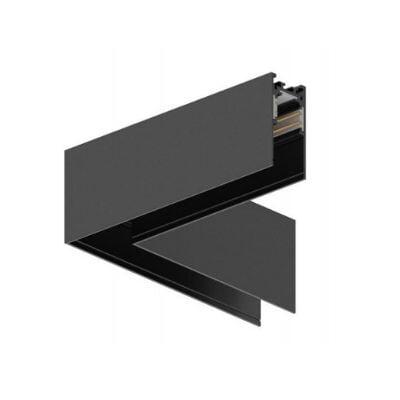

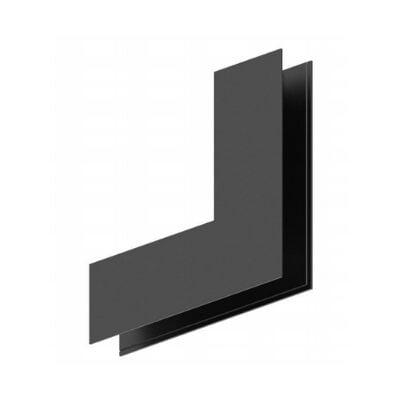

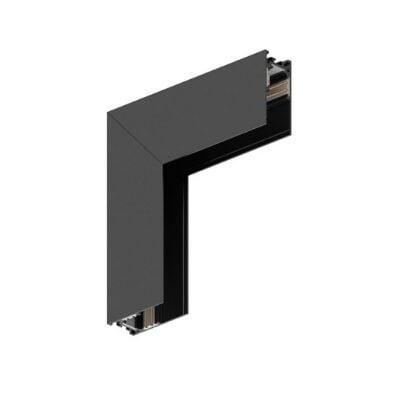

M20 -TP Hanging/suspended track L shape joints

M20 -TP Pendant Track
M20 -TP Pendant Track
CMG2-TP-01
CMG2-TP-01
CMG2-TP-01
CMG2-TP-02
CMG2-TP-03
CMG2-TP-03

M20 Magnetic Track Accessory fittings

Power In Kit
Power In Kit

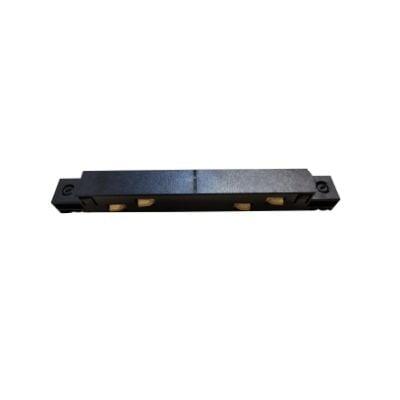

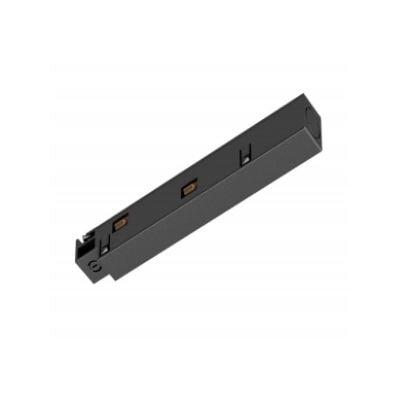

Power I Shape Connector
Power I Shape Connector

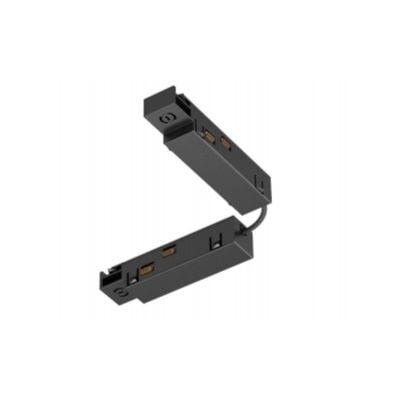

Universal Angle connector
Universal Angle connector

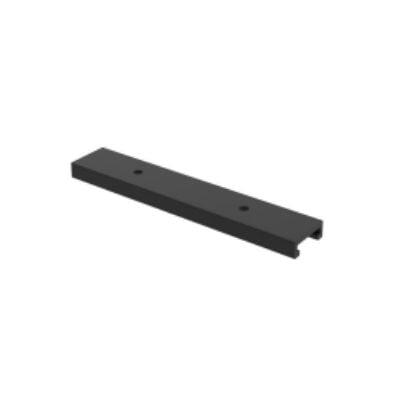

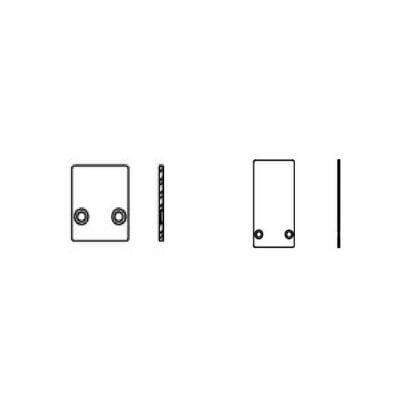

Track splicing fixed aluminum sheet
Track splicing fixed aluminum sheet

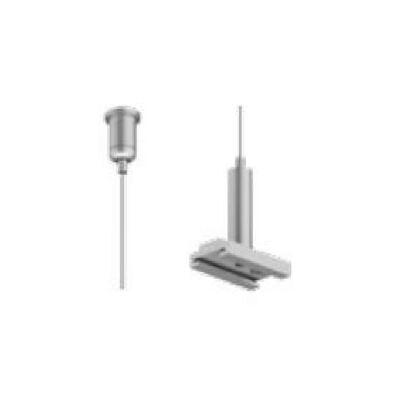

Hanging Kit -1
Hanging Kit -1

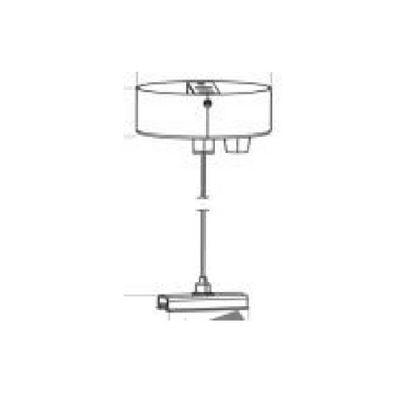

Hang Kit - Ceiling Box
Hang Kit - Ceiling Box
End Caps
End Caps
Videos of M20 Magnetic Track & Connections

​Three M35 Magnetic Tracks

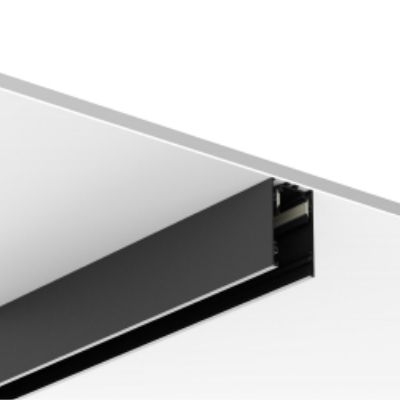

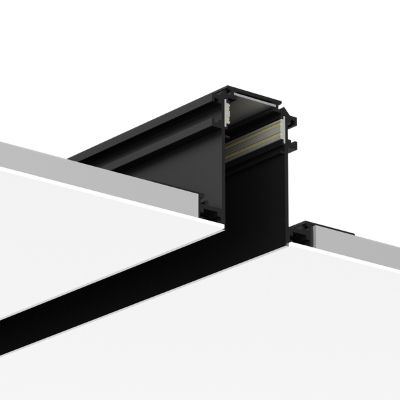

M35 Built-in recessed track
M35 Built-in recessed track
M35 Ceiling mounted track
M35 Ceiling mounted track

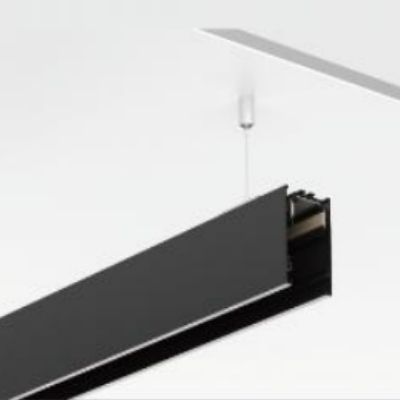

M35 Pendant hanging track
M35 Pendant hanging track

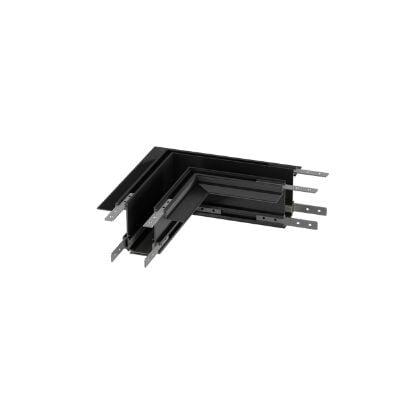

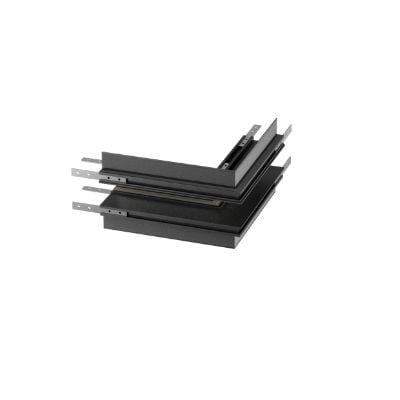

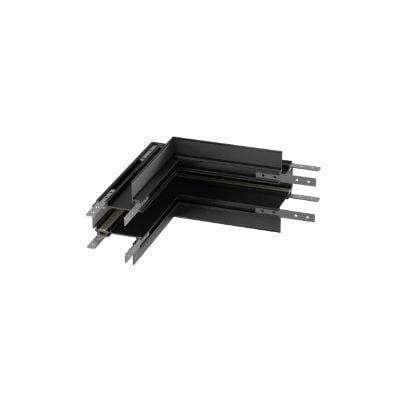

M35 Recessed Magnetic Track L shape joints

M35 Built-in recessed track
M35 Built-in recessed track
CMG-TFL-L
CMG-TFL-L
CMG-TFL-OL
CMG-TFL-OL
CMG-TFL-IL
CMG-TFL-IL

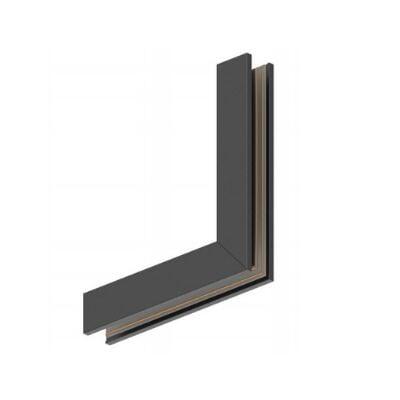

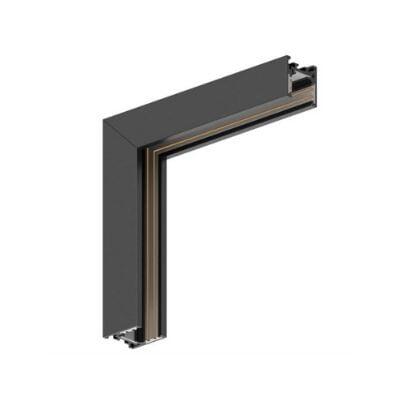

M35 Ceiling mounted/ Suspended Magnetic track L shape joints

M35 Ceiling mounted track
M35 Ceiling mounted track
CMG-TCP-L
CMG-TCP-L
CMG-TCP-OL
CMG-TCP-OL
CMG-TCP-IL
CMG-TCP-IL

M35 Magnetic Track Accessory fittings

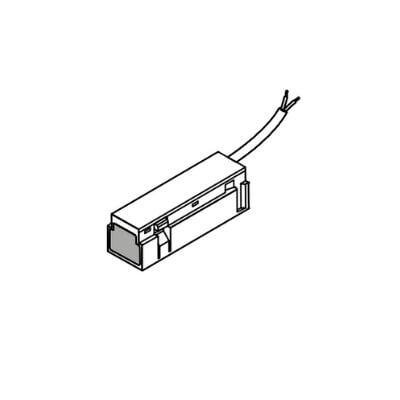

Power In
Power In

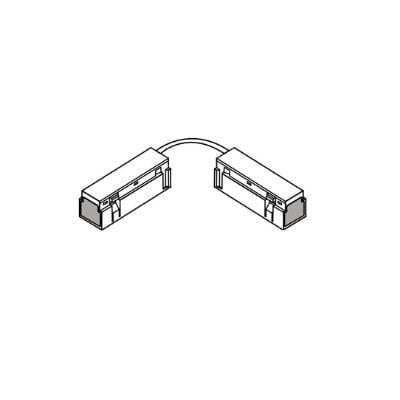

Power Connection
Power Connection

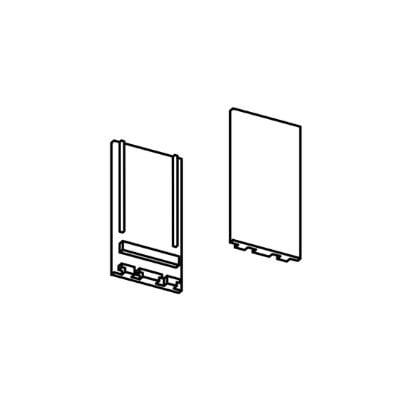

End caps
End caps

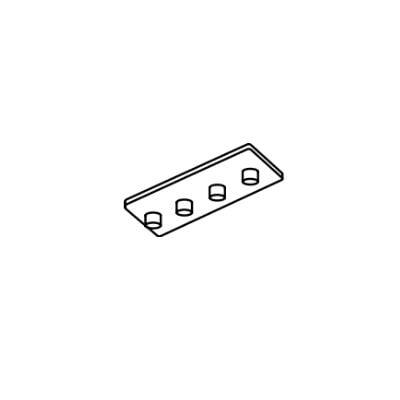

Fixing Metal Parts
Fixing Metal Parts

Videos of M35 Magnetic Track & Installation

Videos of M35 Magnetic Track Connections

Dimming & Controls

—— ​0/1-10V Dimming: connection diagram

By using the four-wire design of the magnetic track, we can support a magnetic track system which is 0/1-10V dimmable.

You can match our 0/1-10V dimming luminaries with any 0/1-10V dimmer or dimming system to achieve the ideal effects.

0-10V Wiring Diagram

—— ​DALI dimming: connection diagram

By using the four-wire design of the magnetic track, we can support a magnetic track system which is DALI dimmable & controllable.

We are supporting DALI-2 version.

DALL Wiring Diagram

—— ​Wireless Bluetooth Dimming & Scenes Function

By using the wireless bluetooth dimming & scene system, you could easily setting each luminaire into the exact brightness or color temperature at your will.


You can setting up as many using scenes as you need, such as: Party, Meeting, Living, Working, Movie, Study, Relaxing, etc.


Using smart phone APPs to setting, or controlling, or you could use traditional panels as follow.


What is more, you could using motion sensors, worked with the scenes together to provide you with a SMART & INTELLIGENT home or offices.

—— ​Wireless Bluetooth Dimming & Color changing Function
