CMG-TS Spotlight
Magnetic Swingable Spotlight Series 10W/20W

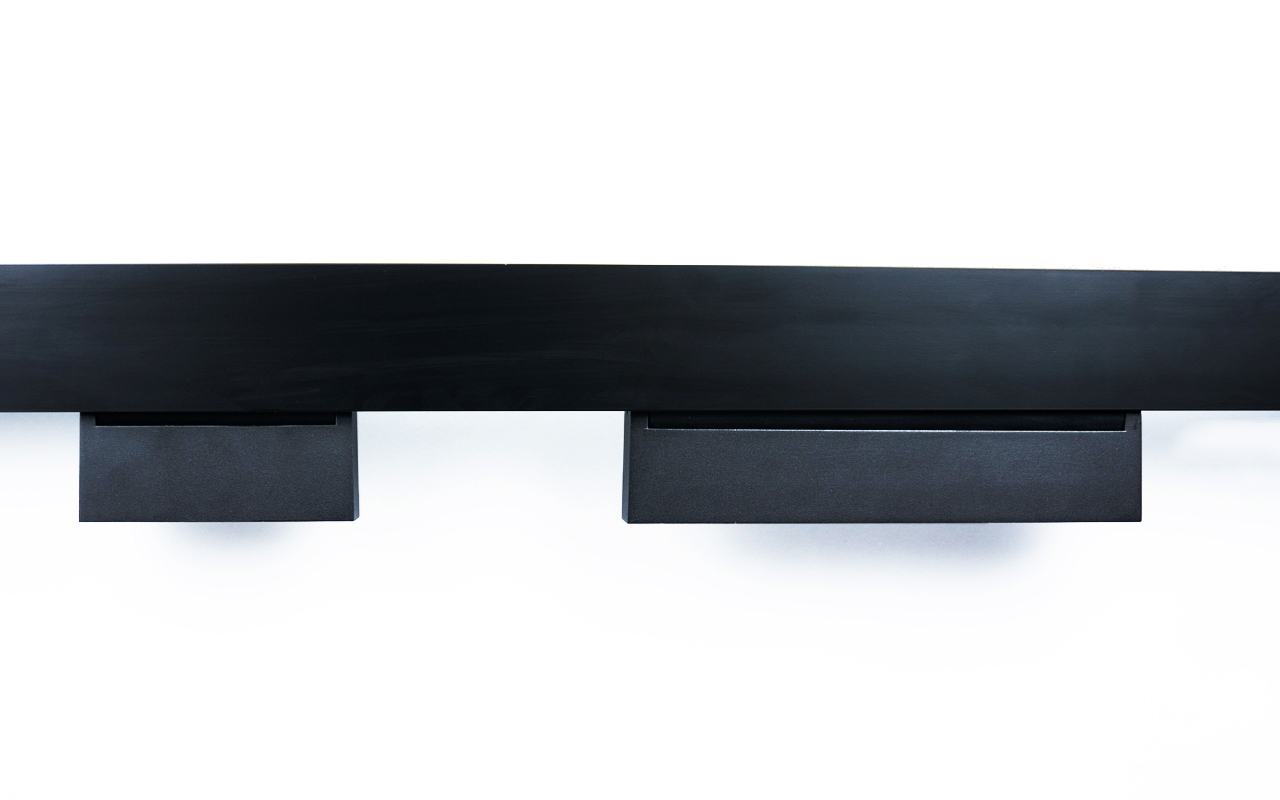

Swingable Spotlight on Magnetic Track

LUNA Magnetic Track System is a new comprehensive and flexible system to design light in space.

48VDC low-voltage safe power supply, allowing customers to safely put their hands into the track to disassemble and assemble the lamps.

Customers pre-installed the track: Extruded aluminum housing slots, and then matched different surface lighting, spotlights, chandeliers, wall washer and other lamps according to the actual application scene. The light elements snap in place and connect automatically though the magic of magnets.


Applications

architectural, commercial, exhibition areas, transit areas, corridors, shops, display windows, service areas, offices, staterooms, schools, halls, households, etc

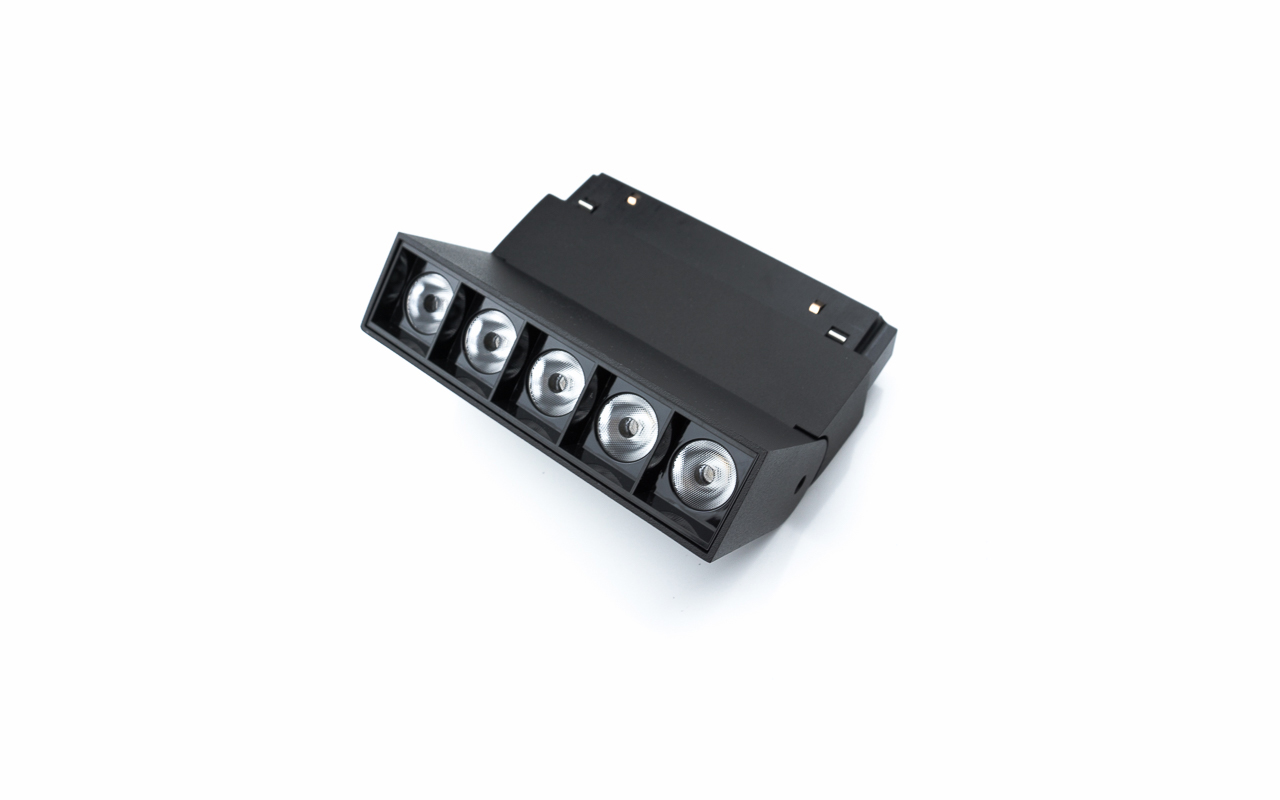

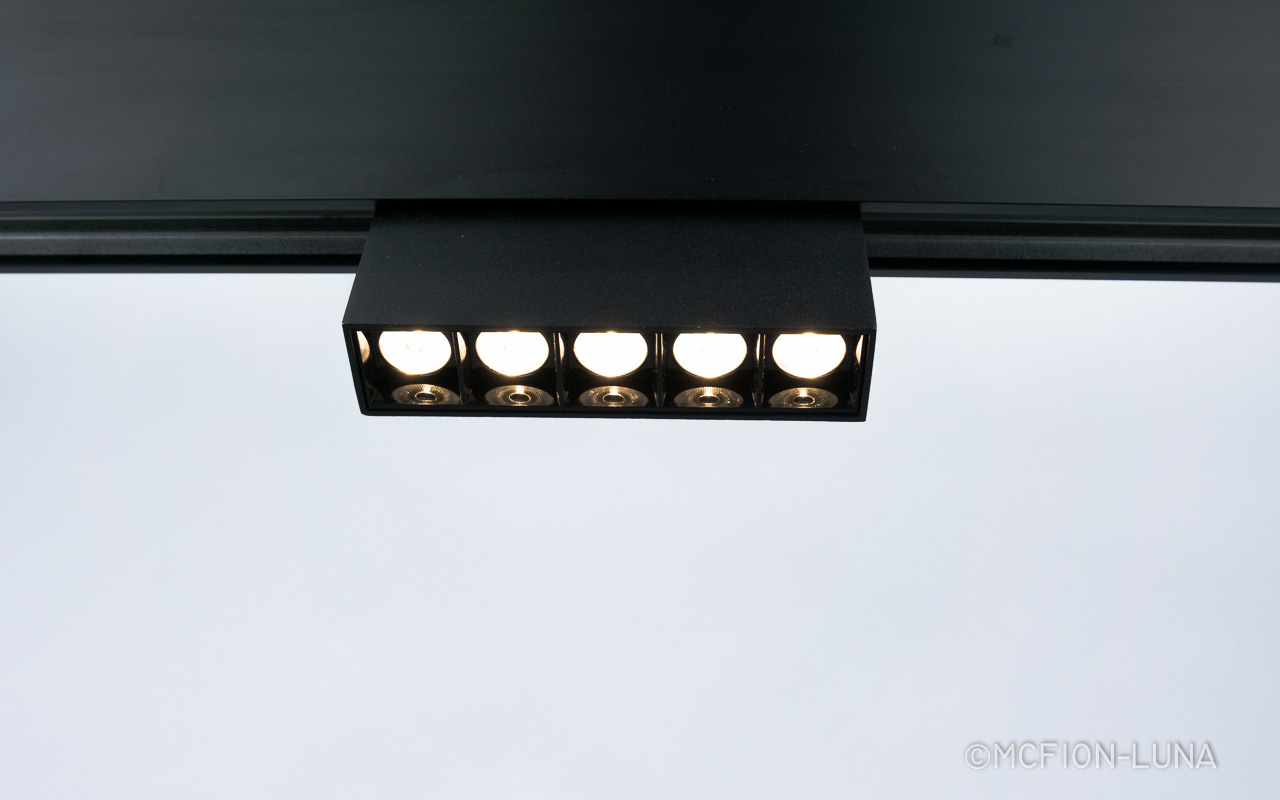

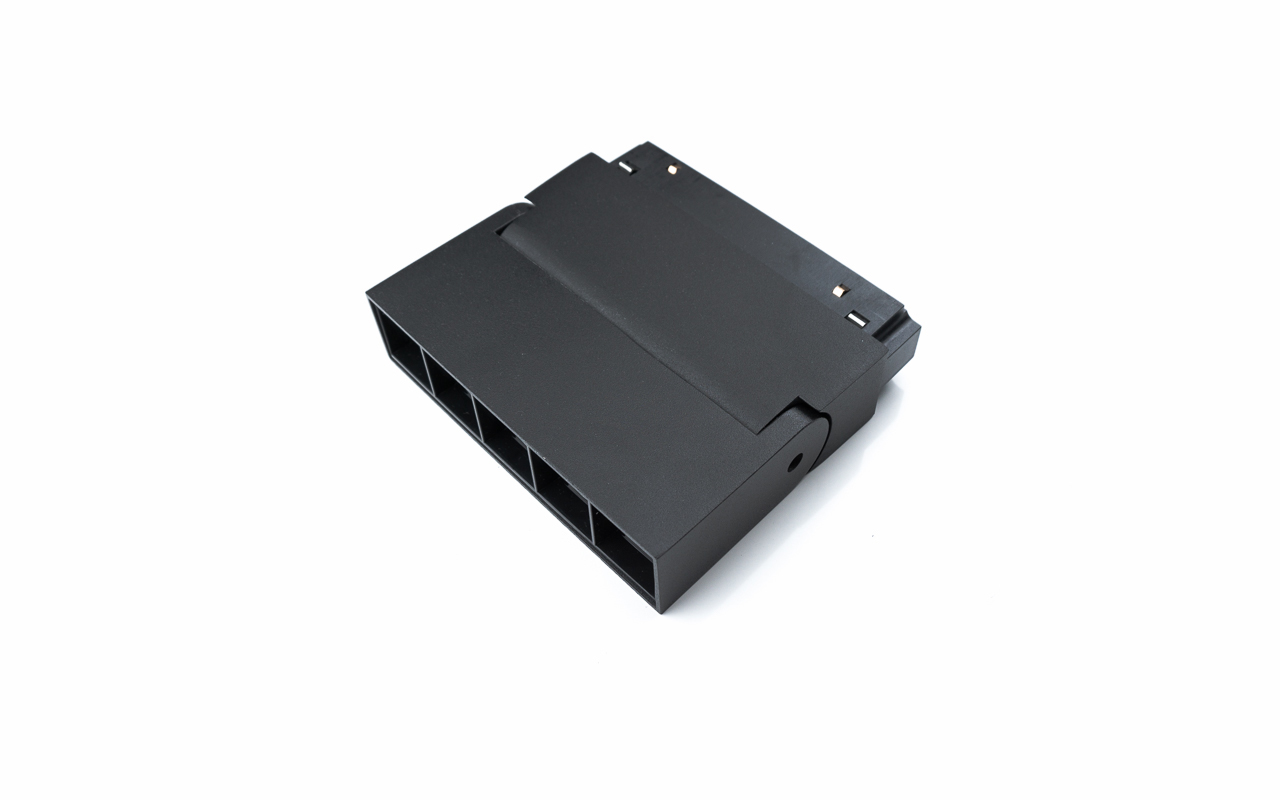

LN-CMG-SB05

  • Max. 10W, 5-10W optional
  • CREE CRI93
  • Beam angle 12/24/38
  • Mesh control, 0/1-10V, DALI optional

Need more help?

Inquiry Now
Electrical
LEDs
Optical
Materials
Downloads
On request
Electrical

Power:*

10W Max.  5-10W optional

Input Voltage:

DC48V

Dimming:

On/Off, 0/1-10V, DALI, Mesh wireless

Class:

III SELV

Ambient Temperature:

0 - 40℃

Relative humidity:

<85%

LEDs

LED Brand:

CREE, OSRAM optional

LED Chip Qty:

5pcs

LED Type:

SMD3030

C.C.T.:

3000K, 4000K, 6500K

Color Randering Index:

>80, or >90

Lumen Maintenance:

LM80

SDCM:

4 steps

Optical

Beam Angle:

12°, 24°, 38°

Luminous Flux (LED):*

1075lm

Lumen Efficiency(LED):*

125lm/W (CRI90)

Luminous Flux (Luminare):*

650lm(at 24°)

Lumen Efficiency (Luminare):*

65lm/W (at 24°)

Materials

Body & Heatsink:

Die-casting Aluminum

Optics:

Optical PMMA

Installation:

M35 Magnetic Track

Surface Treament:

Powder-coated

Housing Color:

Matt Black

IP Grade:

IP20

Size:

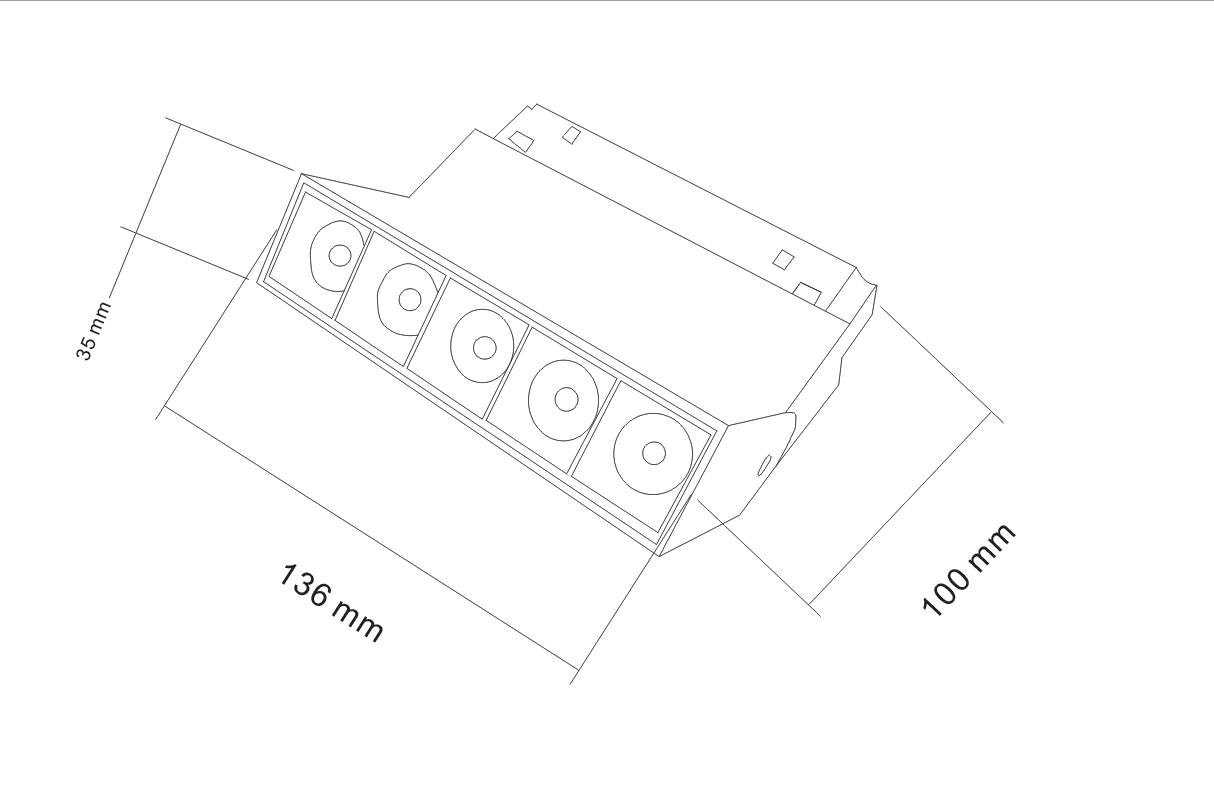

L136mm,W35mm,H100mm

Cutout:

N/A

Certificates:

CE

Downloads
Product Specification Download
On request

- different power, CRI, C.C.T..

- other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.

- other Drivers optional.

- dimming functions:  0/1-10V, DALI, Mesh optional.

- emergency kit with specific duration.

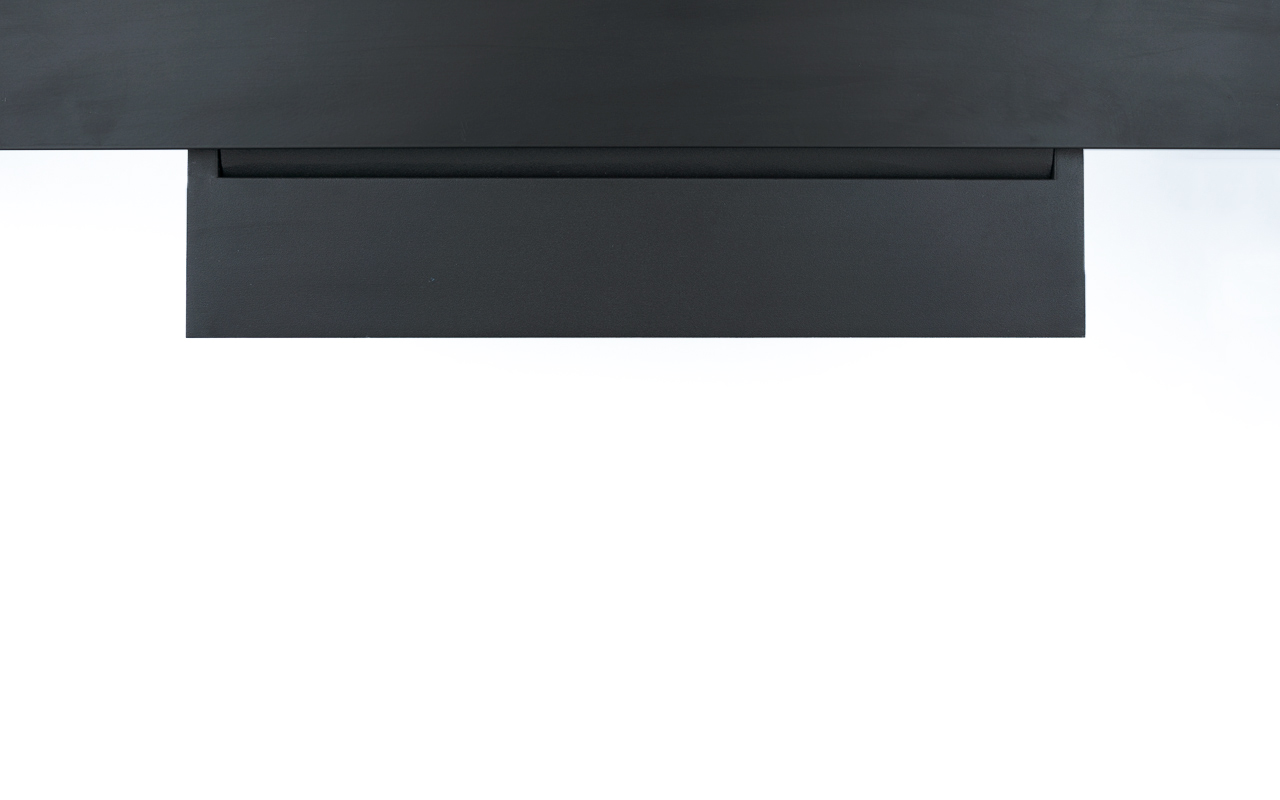

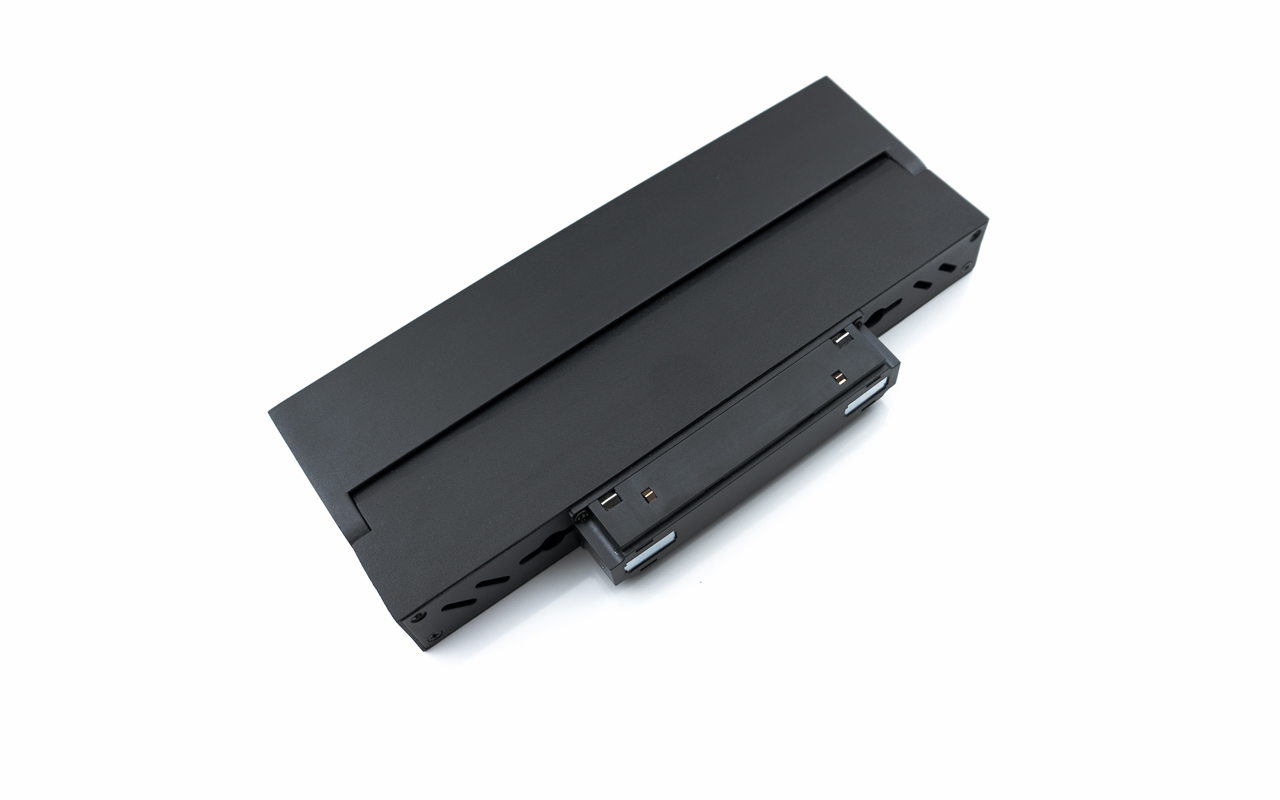

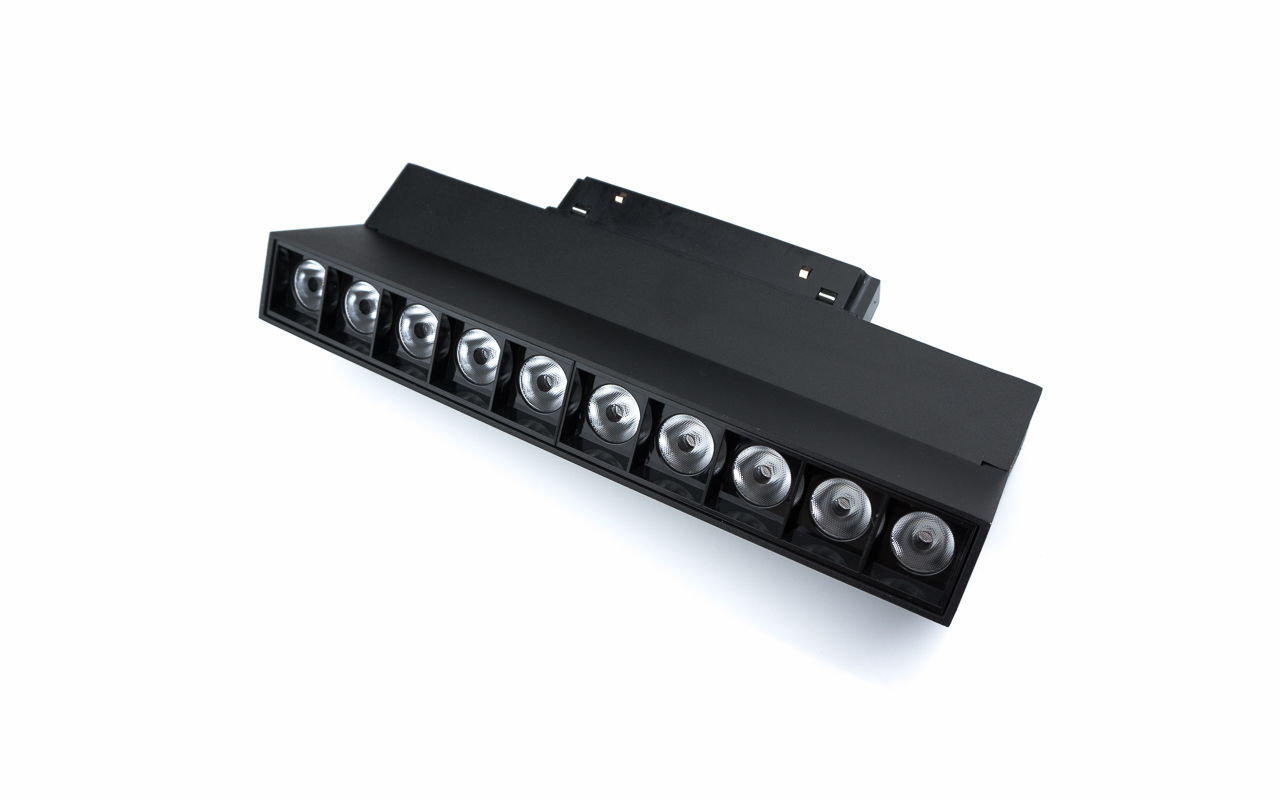

    LN-CMG-SB10

    • Max. 20W, 12-20W optional
    • CREE CRI93
    • Beam angle 15/24/36
    • Mesh control, 0/1-10V, DALI optional

    Need more help?

    Inquiry Now
    Electrical
    LEDs
    Optical
    Materials
    Downloads
    On request
    Electrical

    Power:*

    20W Max.  12-20W optional

    Input Voltage:

    DC48V

    Dimming:

    On/Off, 0/1-10V, DALI, Mesh wireless

    Class:

    III SELV

    Ambient Temperature:

    0 - 40℃

    Relative humidity:

    <85%

    LEDs

    LED Brand:

    OSRAM, CREE optional

    LED Chip Qty:

    10pcs

    LED Type:

    SMD3030

    C.C.T.:

    3000K, 4000K, 6500K

    Color Randering Index:

    >80, or >90

    Lumen Maintenance:

    LM80

    SDCM:

    4 steps

    Optical

    Beam Angle:

    12°, 24°, 38°

    Luminous Flux (LED):*

    1625lm

    Lumen Efficiency(LED):*

    125lm/W (CRI90)

    Luminous Flux (Luminare):*

    1300lm (at 24°)

    Lumen Efficiency (Luminare):*

    65lm/W (at 24°)

    Materials

    Body & Heatsink:

    Die-casting Aluminum

    Optics:

    Optical PMMA

    Installation:

    M35 Magnetic Track

    Surface Treament:

    Powder-coated

    Housing Color:

    Matt Black

    IP Grade:

    IP20

    Size:

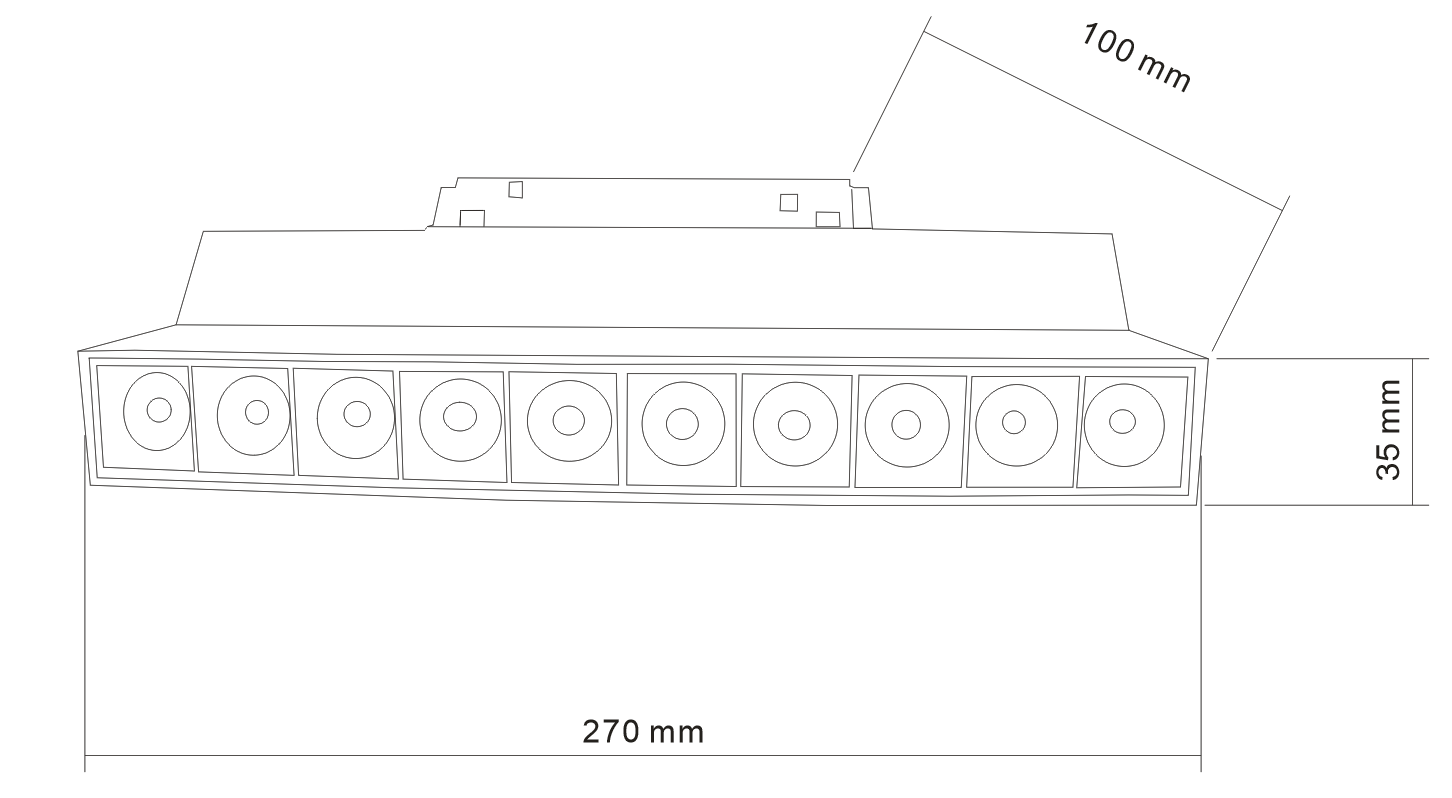

    L270mm, W35mm, H100mm

    Cutout:

    N/A

    Certificates:

    CE

    Downloads
    Product Specification Download
    On request

    - different power, CRI, C.C.T..

    - other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.

    - other Drivers optional.

    - dimming functions:  0/1-10V, DALI, Mesh optional.

    - emergency kit with specific duration.

      *Due to the differences in test instruments and electronic components, the specific data may vary. Please confirm the specific parameters of the lamp before ordering to avoid misunderstanding. The luminous flux data and electrical data on the website will have  +/-10% tolerance and measured at Tc 25℃ indoors.

      *Dimensions and specifications subject to alterations without notice.
