CMG-TS Spotlight
Magnetic Spotlight Series 6/12/20W
A Series of Spotlight on Magnetic Track

LUNA Magnetic Track System is a new comprehensive and flexible system to design light in space.

48VDC low-voltage safe power supply, allowing customers to safely put their hands into the track to disassemble and assemble the lamps.

Customers pre-installed the track: Extruded aluminum housing slots, and then matched different surface lighting, spotlights, chandeliers, wall washer and other lamps according to the actual application scene. The light elements snap in place and connect automatically though the magic of magnets.


Applications

architectural, commercial, exhibition areas, transit areas, corridors, shops, display windows, service areas, offices, staterooms, schools, halls, households, etc

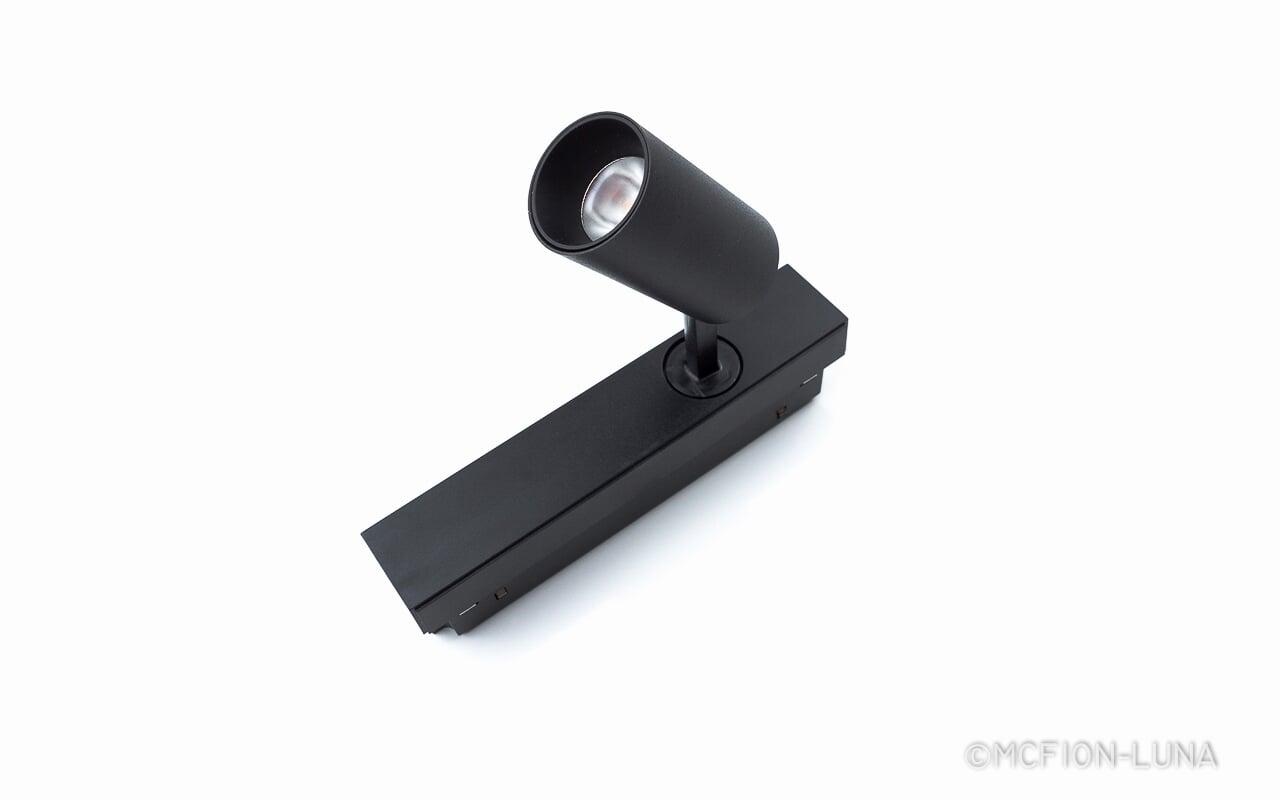

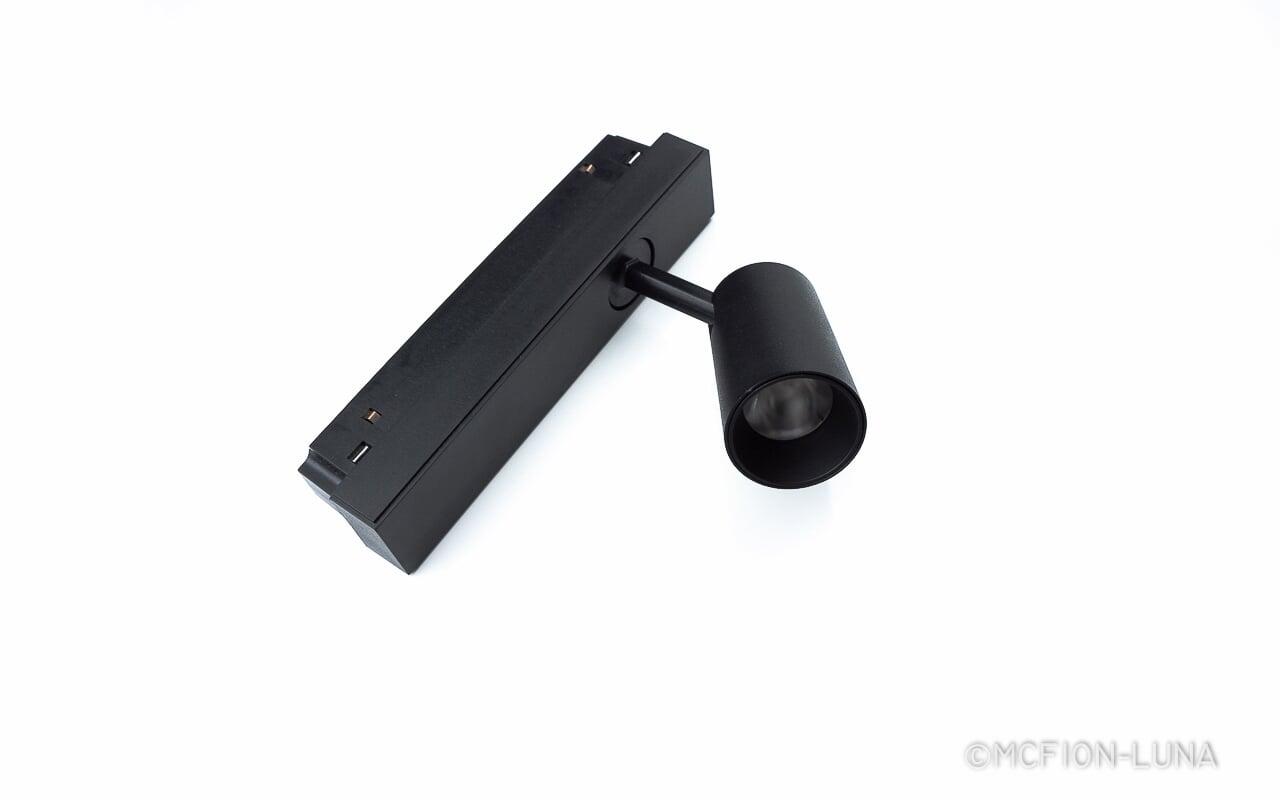

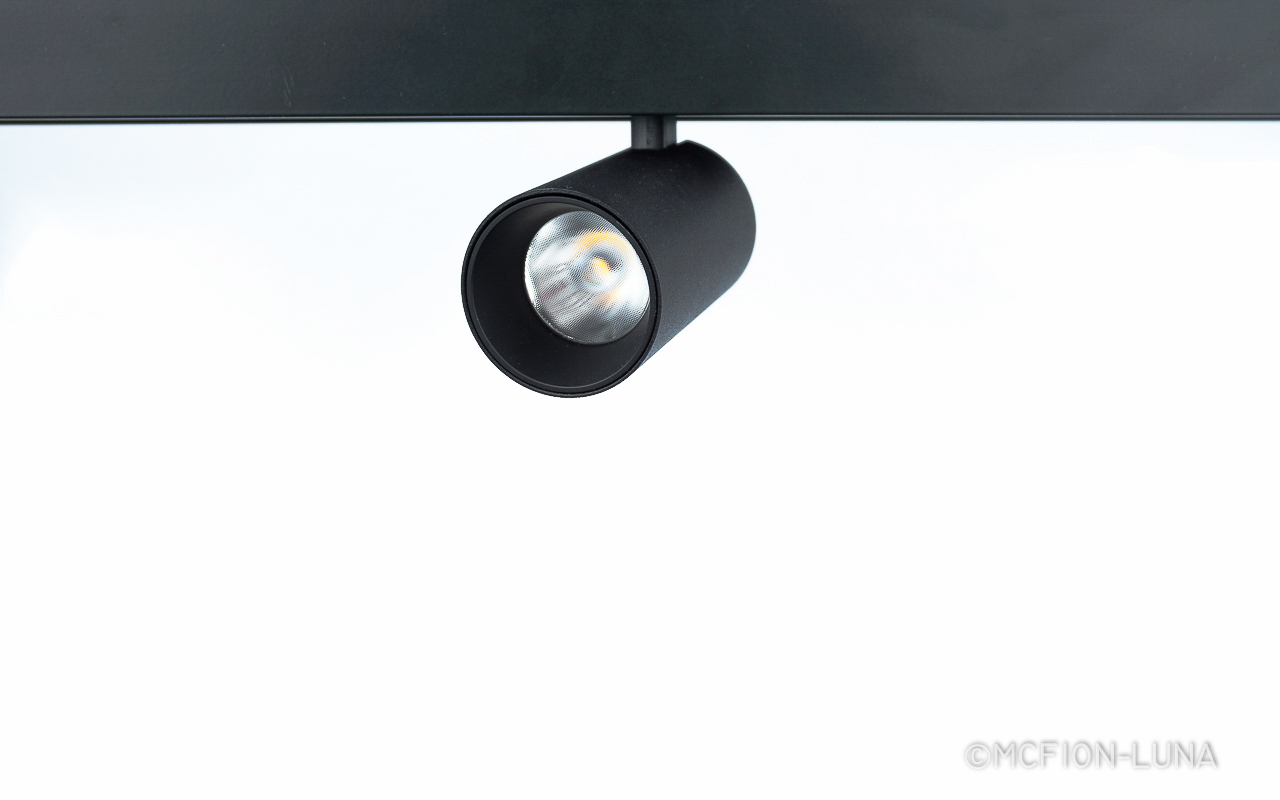

LN-CMG-TS6

  • Max. 6W, 2-6W optional
  • CREE CRI93
  • Beam angle 15/24/36
  • Mesh control, 0/1-10V, DALI optional

Need more help?

Inquiry Now
Electrical
LEDs
Optical
Materials
Downloads
On request
Electrical

Power:*

6W Max.  2-6W optional

Input Voltage:

DC48V

Dimming:

On/Off, 0/1-10V, DALI, Mesh wireless

Class:

III SELV

Ambient Temperature:

0 - 40℃

Relative humidity:

<85%

LEDs

LED Brand:

CREE, OSRAM optional

LED Chip Qty:

1pcs

LED Type:

COB

C.C.T.:

3000K, 4000K, 6500K

Color Randering Index:

>80, or >90

Lumen Maintenance:

LM80

SDCM:

4 steps

Optical

Beam Angle:

15°, 24°, 36°

Luminous Flux (LED):*

750lm

Lumen Efficiency(LED):*

125lm/W (CRI90)

Luminous Flux (Luminare):*

390lm (at 24°)

Lumen Efficiency (Luminare):*

65lm/W (at 24°)

Materials

Body & Heatsink:

Die-casting Aluminum

Optics:

Optical PMMA

Installation:

M35 Magnetic Track

Surface Treament:

Powder-coated

Housing Color:

Matt Black

IP Grade:

IP20

Size:

φ36mm, H66mm, L100mm

Cutout:

N/A

Certificates:

CE

Downloads
Product Specification Download
On request

- different power, CRI, C.C.T..

- other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.

- other Drivers optional.

- dimming functions:  0/1-10V, DALI, Mesh optional.

- emergency kit with specific duration.

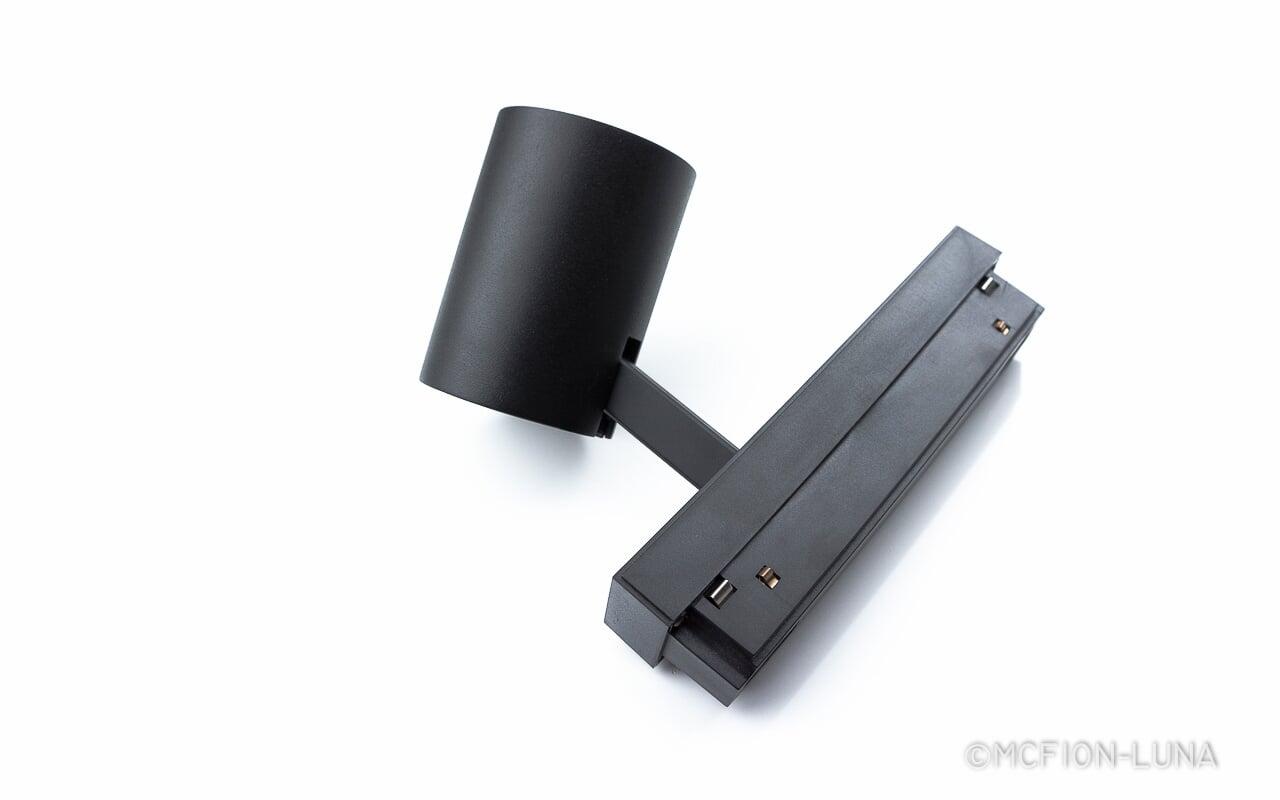

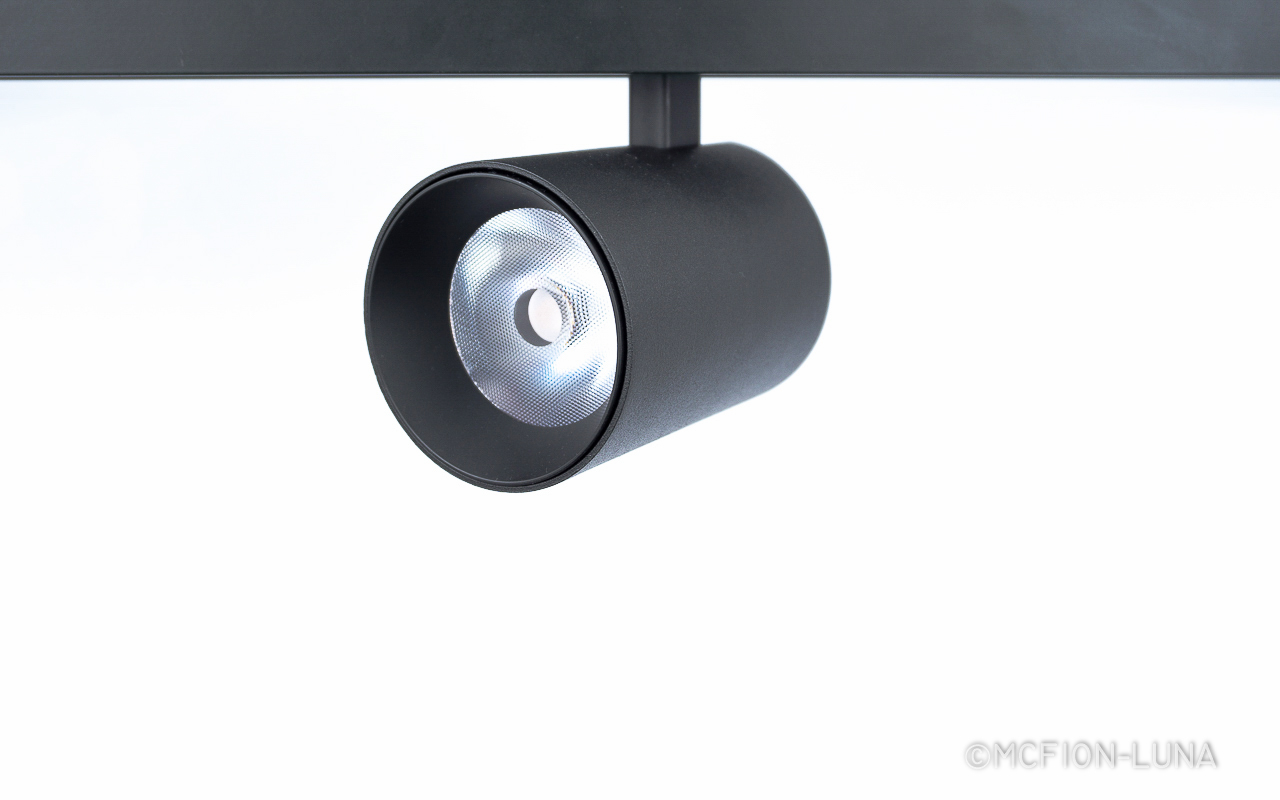

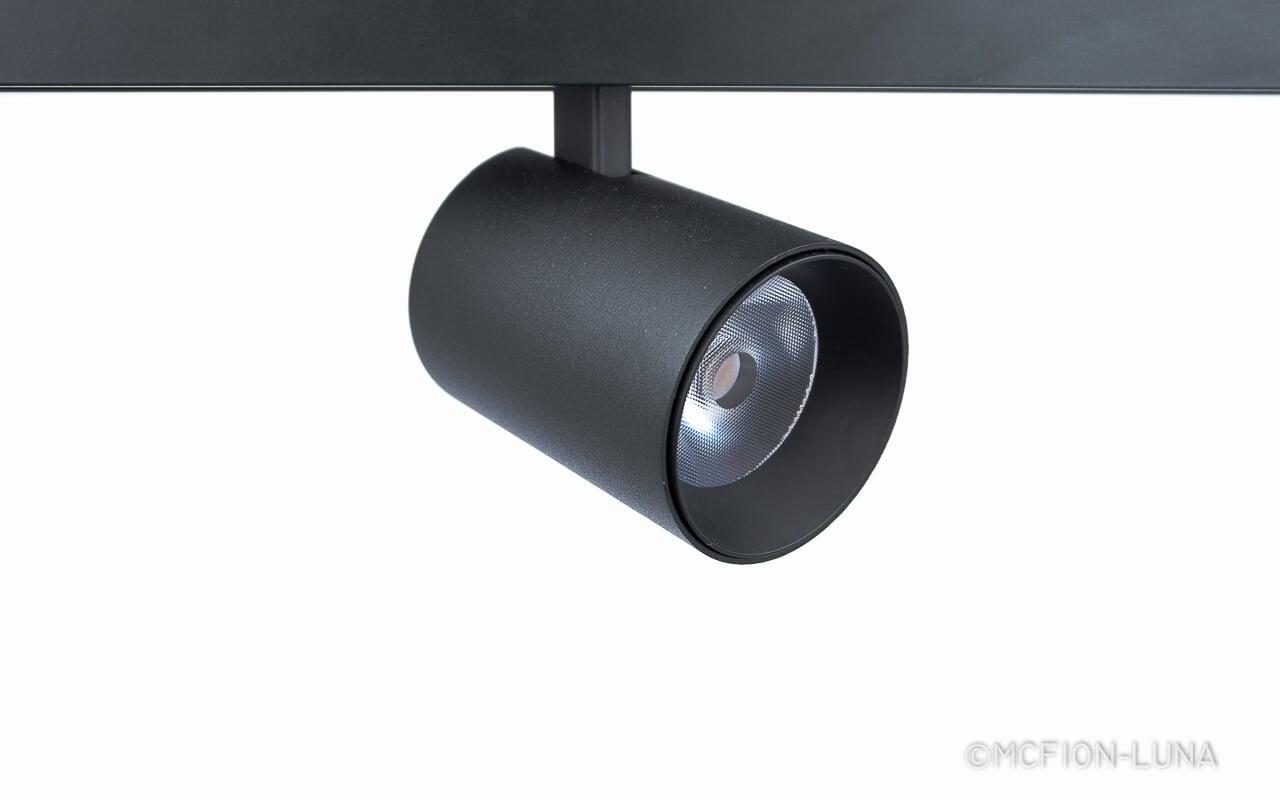

    LN-CMG-TS12

    • Max. 12W, 5-12W optional
    • CREE CRI93
    • Beam angle 15/24/36
    • Mesh control, 0/1-10V, DALI optional

    Need more help?

    Inquiry Now
    Electrical
    LEDs
    Optical
    Materials
    Downloads
    On request
    Electrical

    Power:*

    12W Max.  5-12W optional

    Input Voltage:

    DC48V

    Dimming:

    On/Off, 0/1-10V, DALI, Mesh wireless

    Class:

    III SELV

    Ambient Temperature:

    0 - 40℃

    Relative humidity:

    <85%

    LEDs

    LED Brand:

    CREE, OSRAM optional

    LED Chip Qty:

    1pcs

    LED Type:

    COB

    C.C.T.:

    3000K, 4000K, 6500K

    Color Randering Index:

    >80, or >90

    Lumen Maintenance:

    LM80

    SDCM:

    4 steps

    Optical

    Beam Angle:

    15°, 24°, 36°

    Luminous Flux (LED):*

    1350lm

    Lumen Efficiency(LED):*

    125lm/W (CRI90)

    Luminous Flux (Luminare):*

    780lm (at 24°)

    Lumen Efficiency (Luminare):*

    65lm/W (at 24°)

    Materials

    Body & Heatsink:

    Die-casting Aluminum

    Optics:

    Optical PMMA

    Installation:

    M35 Magnetic Track

    Surface Treament:

    Powder-coated

    Housing Color:

    Matt Black

    IP Grade:

    IP20

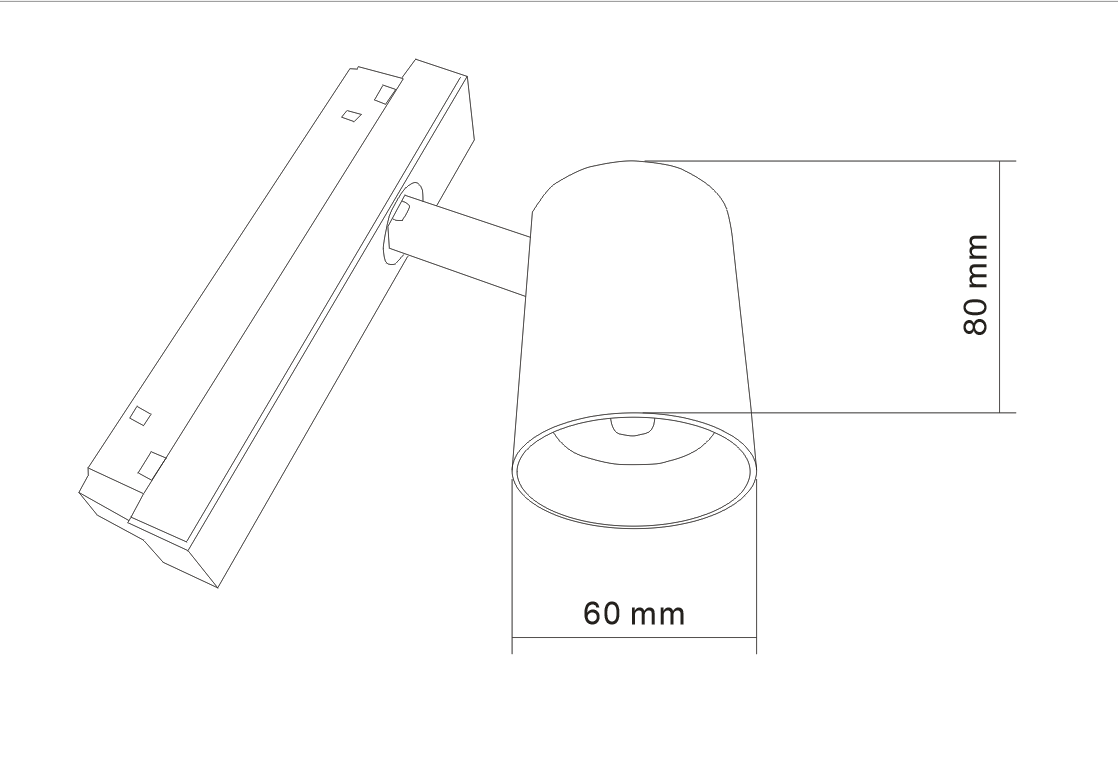

    Size:

    φ60mm, H80mm, L100mm

    Cutout:

    N/A

    Certificates:

    CE

    Downloads
    Product Specification Download
    On request

    - different power, CRI, C.C.T..

    - other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.

    - other Drivers optional.

    - dimming functions:  0/1-10V, DALI, Mesh optional.

    - emergency kit with specific duration.

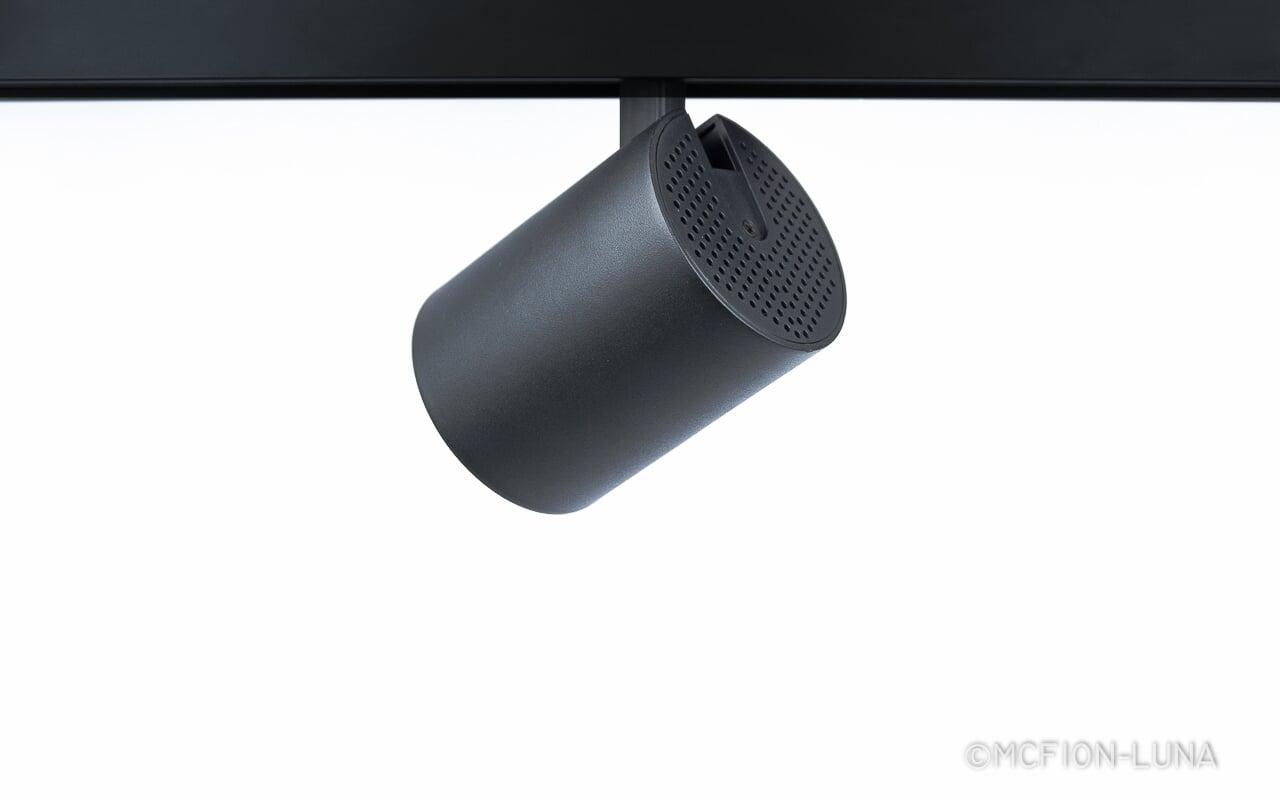

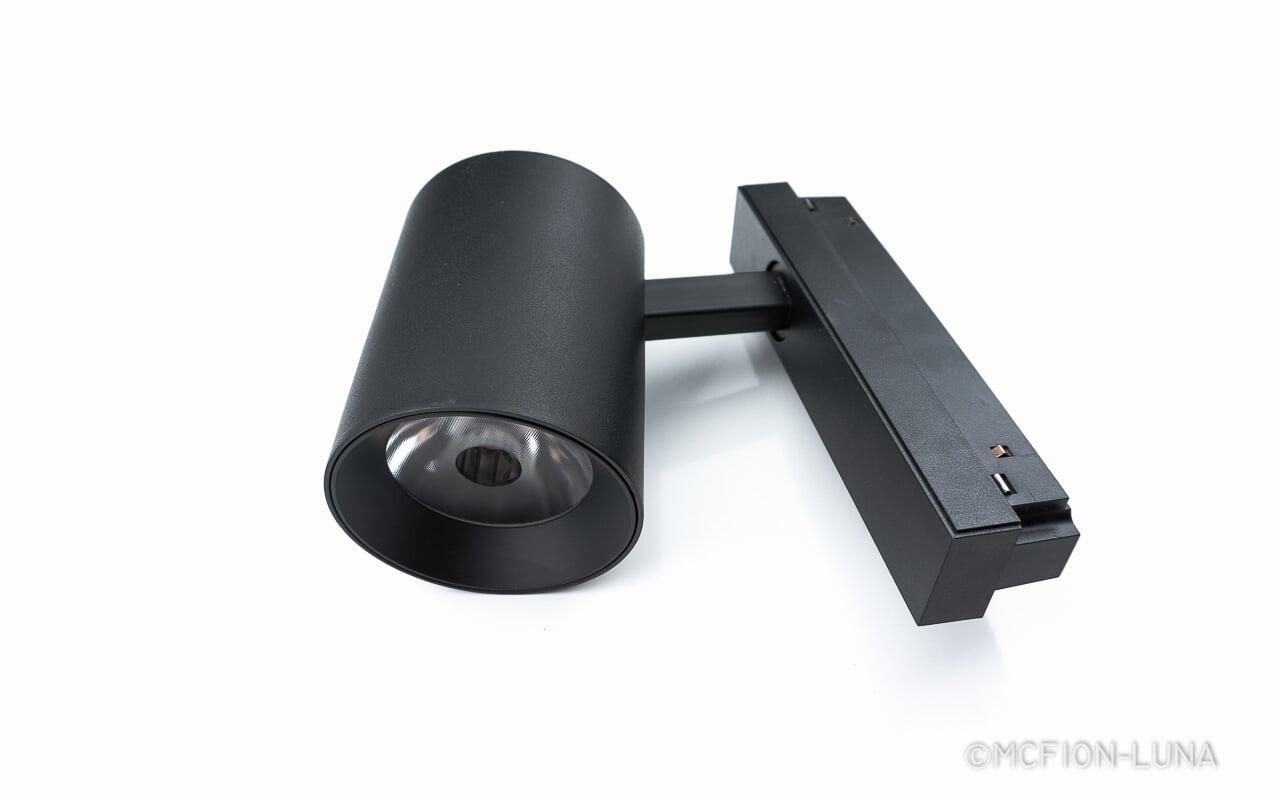

      LN-CMG-TS20

      • Max. 20W, 12-20W optional
      • CREE CRI93
      • Beam angle 15/24/36
      • Mesh control, 0/1-10V, DALI optional

      Need more help?

      Inquiry Now
      Electrical
      LEDs
      Optical
      Materials
      Downloads
      On request
      Electrical

      Power:*

      20W Max.  12-20W optional

      Input Voltage:

      DC48V

      Dimming:

      On/Off, 0/1-10V, DALI, Mesh wireless

      Class:

      III SELV

      Ambient Temperature:

      0 - 40℃

      Relative humidity:

      <85%

      LEDs

      LED Brand:

      CREE, OSRAM optional

      LED Chip Qty:

      1pcs

      LED Type:

      COB

      C.C.T.:

      3000K, 4000K, 6500K

      Color Randering Index:

      >80, or >90

      Lumen Maintenance:

      LM80

      SDCM:

      4 steps

      Optical

      Beam Angle:

      15°, 24°, 36°

      Luminous Flux (LED):*

      2200lm

      Lumen Efficiency(LED):*

      125lm/W(CRI90)

      Luminous Flux (Luminare):*

      1400lm (at 24°)

      Lumen Efficiency (Luminare):*

      70lm/W (at 24°)

      Materials

      Body & Heatsink:

      Die-casting Aluminum

      Optics:

      Optical PMMA

      Installation:

      M35 Magnetic Track

      Surface Treament:

      Powder-coated

      Housing Color:

      Matt Black

      IP Grade:

      IP20

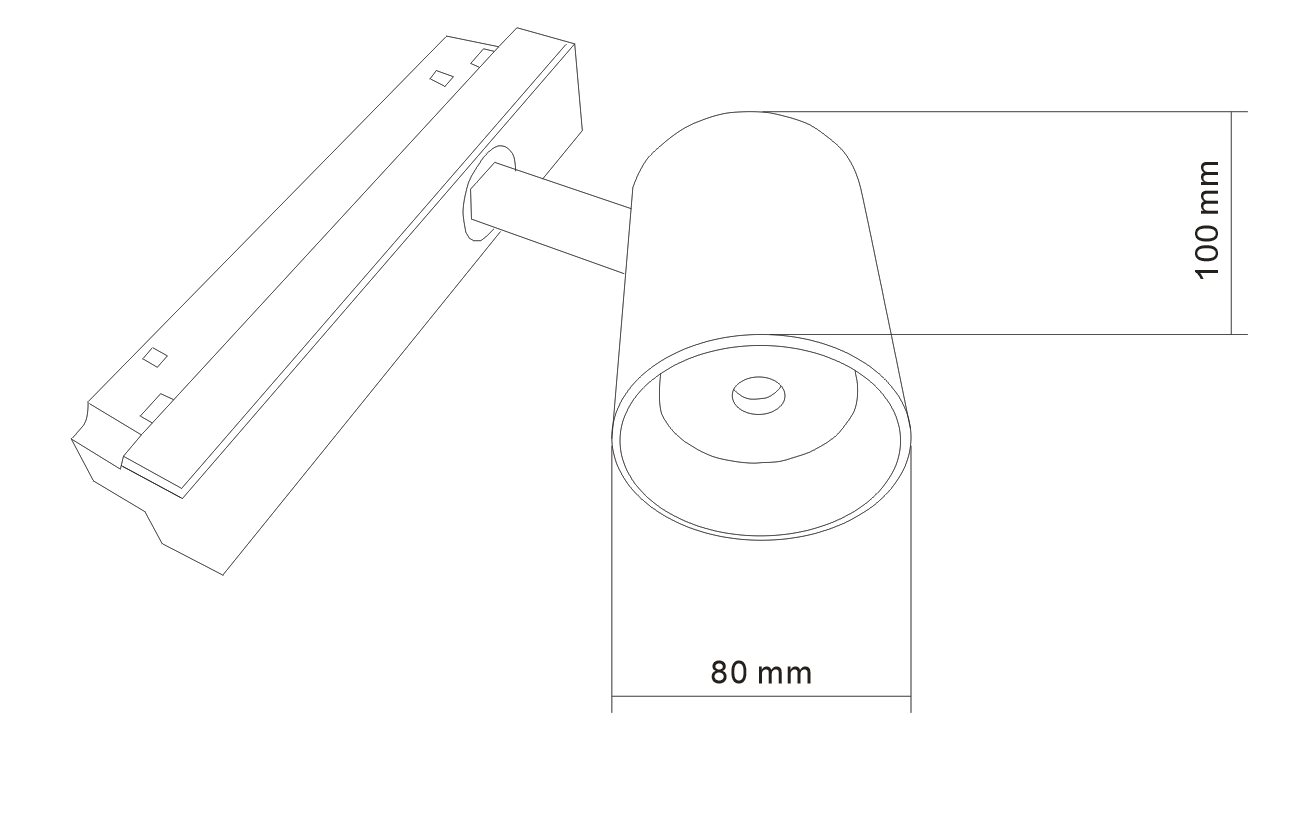

      Size:

      φ80mm, H100mm

      Cutout:

      N/A

      Certificates:

      CE

      Downloads
      Product Specification Download
      On request

      - different power, CRI, C.C.T..

      - other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.

      - other Drivers optional.

      - dimming functions:  0/1-10V, DALI, Mesh optional.

      - emergency kit with specific duration.

        *Due to the differences in test instruments and electronic components, the specific data may vary. Please confirm the specific parameters of the lamp before ordering to avoid misunderstanding. The luminous flux data and electrical data on the website will have  +/-10% tolerance and measured at Tc 25℃ indoors.

        *Dimensions and specifications subject to alterations without notice.
