CMG-TS Spotlight


LN-CR-RIM24

  • Max.  30W
  • OSRAM CRI80/90
  • Beam angle 20/34/48
  • UGR<17
  • Mesh control, 0-10V, DALI optional

Need more help?

Inquiry Now
Electrical
LEDs
Optical
Materials
Downloads
On request
Electrical

Power:*

30W

Input Voltage:

AC220-240V, or AC100-250V optional

Dimming:

On/Off, TRIAC, 0/1-10V, DALI optional

Class:

III SELV

Ambient Temperature:

0 - 40℃

Relative humidity:

<85%

LEDs

LED Brand:

OSRAM

LED Chip Qty:

24 pcs

LED Type:

SMD3030

C.C.T.:

3000K, 4000K, 6000K

Color Randering Index:

>80,>90

Lumen Maintenance:

LM80

SDCM:

4

Optical

Beam Angle:

20°, 34°, 48°

Luminous Flux (LED):*

3350lm

Lumen Efficiency(LED):*

120lm/W

Luminous Flux (Luminare):*

1960lm

Lumen Efficiency (Luminare):*

75lm/W

Materials

Body & Heatsink:

Die-casting Aluminum

Optics:

Optical PMMA

Installation:

Ceiling recessed

Surface Treament:

Powder-coated, Ring: sanded black

Housing Color:

white

IP Grade:

IP20

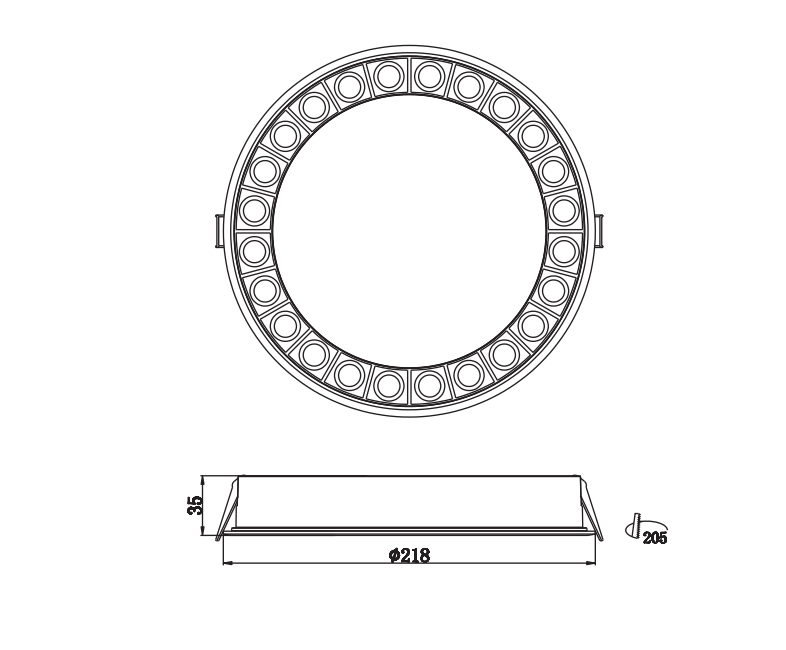

Size:

D218mm, Height: 35mm

Cutout:

D205mm

Certificates:

CE

Downloads
Product Specification Download
On request

- different power, CRI, C.C.T..

- other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.

- other Drivers, OSRAM, PHILIPS, Meanwell, KEGU, Lifud, etc.

- dimming functions: TRIAC, 0/1-10V, DALI, Mesh, 2.5G

- emergency kit with specific duration.

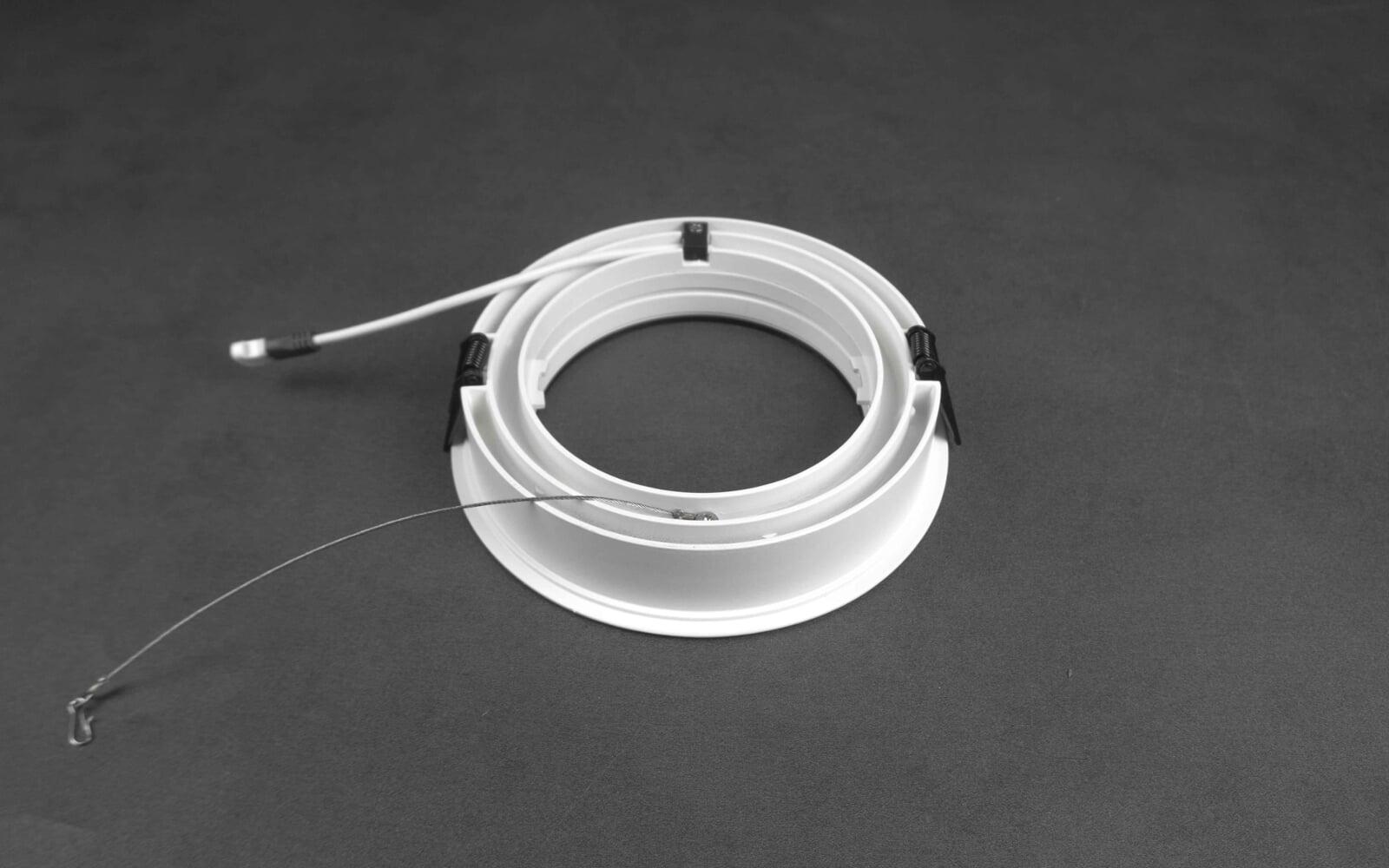

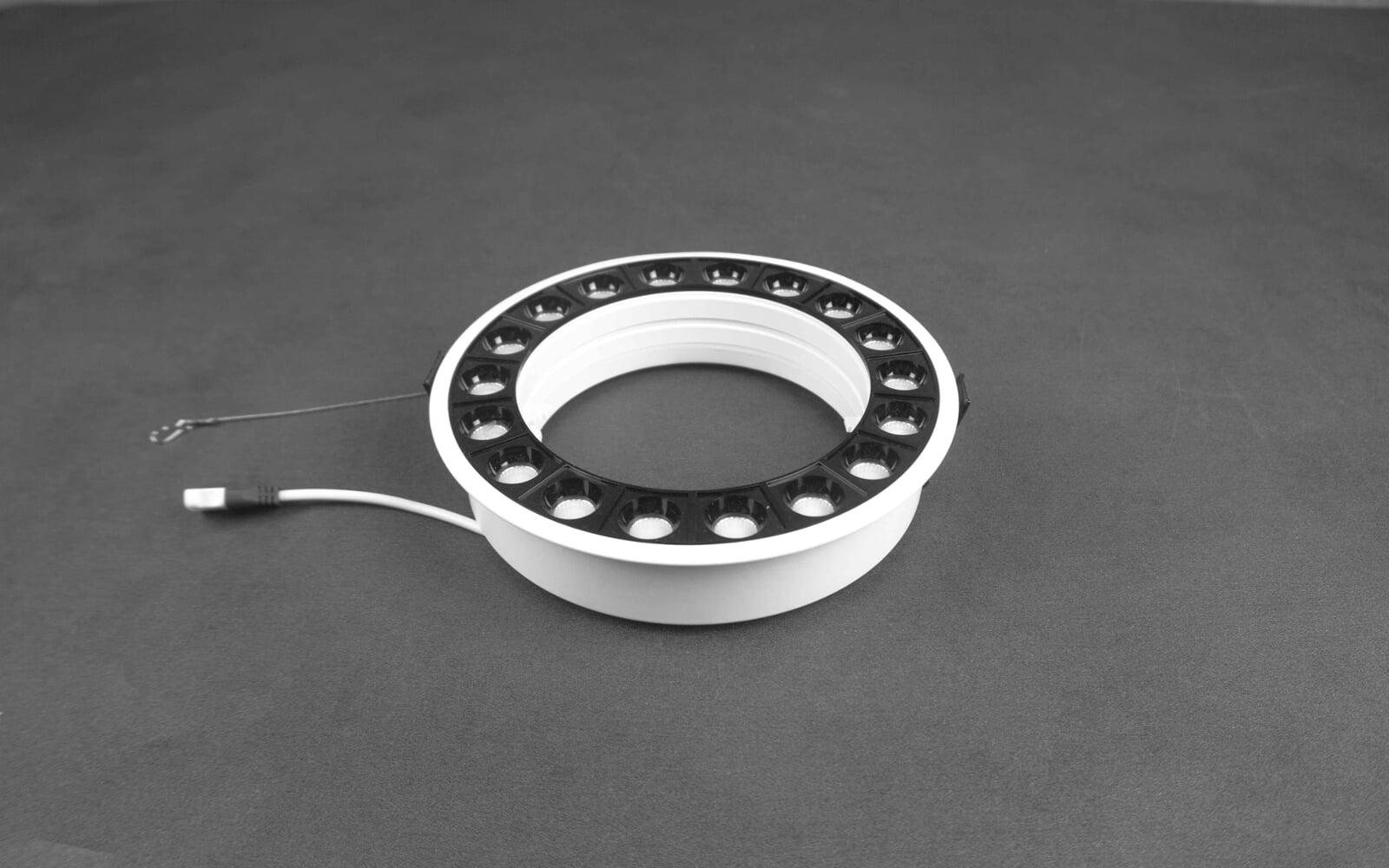

    LN-CR-RIM18

    • Max.  20W
    • OSRAM CRI80/90
    • Beam angle 20/34/48
    • URG <17
    • Mesh control, 0-10V, DALI optional

    Need more help?

    Inquiry Now
    Electrical
    LEDs
    Optical
    Materials
    Downloads
    On request
    Electrical

    Power:*

    20W

    Input Voltage:

    AC220-240V, or AC100-250V optional

    Dimming:

    On/Off, TRIAC, 0/1-10V, DALI optional

    Class:

    III SELV

    Ambient Temperature:

    0 - 40℃

    Relative humidity:

    <85%

    LEDs

    LED Brand:

    OSRAM

    LED Chip Qty:

    18 pcs

    LED Type:

    SMD3030

    C.C.T.:

    3000K, 4000K, 6000K

    Color Randering Index:

    >80,>90

    Lumen Maintenance:

    LM80

    SDCM:

    4

    Optical

    Beam Angle:

    20°, 34°, 48°

    Luminous Flux (LED):*

    2150lm

    Lumen Efficiency(LED):*

    120lm/W

    Luminous Flux (Luminare):*

    1500lm

    Lumen Efficiency (Luminare):*

    75lm/W

    Materials

    Body & Heatsink:

    Die-casting Aluminum

    Optics:

    Optical PMMA

    Installation:

    Ceiling recessed

    Surface Treament:

    Powder-coated, Ring: sanded black

    Housing Color:

    white

    IP Grade:

    IP20

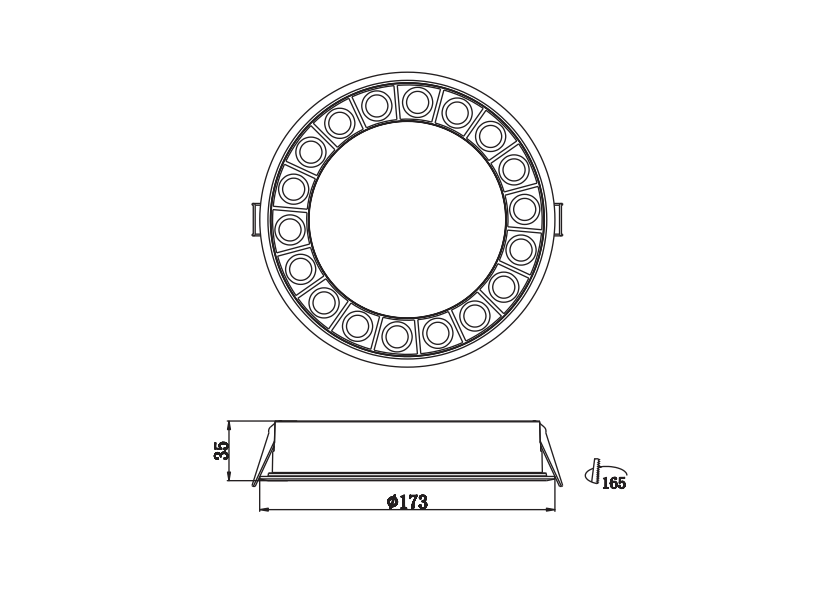

    Size:

    D173mm, Height: 35mm

    Cutout:

    D165mm

    Certificates:

    CE

    Downloads
    Product Specification Download
    On request

    - different power, CRI, C.C.T..

    - other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.

    - other Drivers, OSRAM, PHILIPS, Meanwell, KEGU, Lifud, etc.

    - dimming functions: TRIAC, 0/1-10V, DALI, Mesh, 2.5G

    - emergency kit with specific duration.

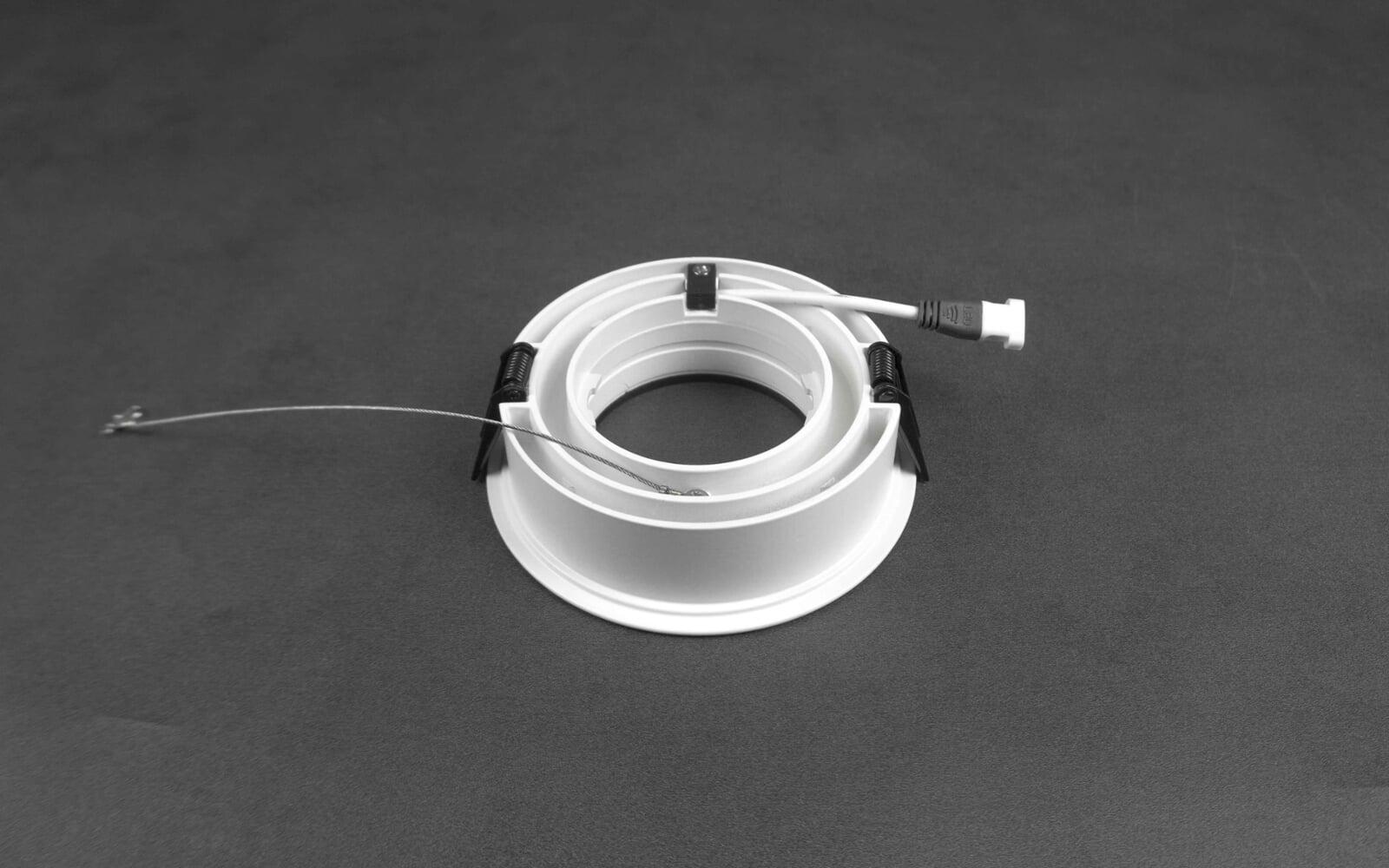

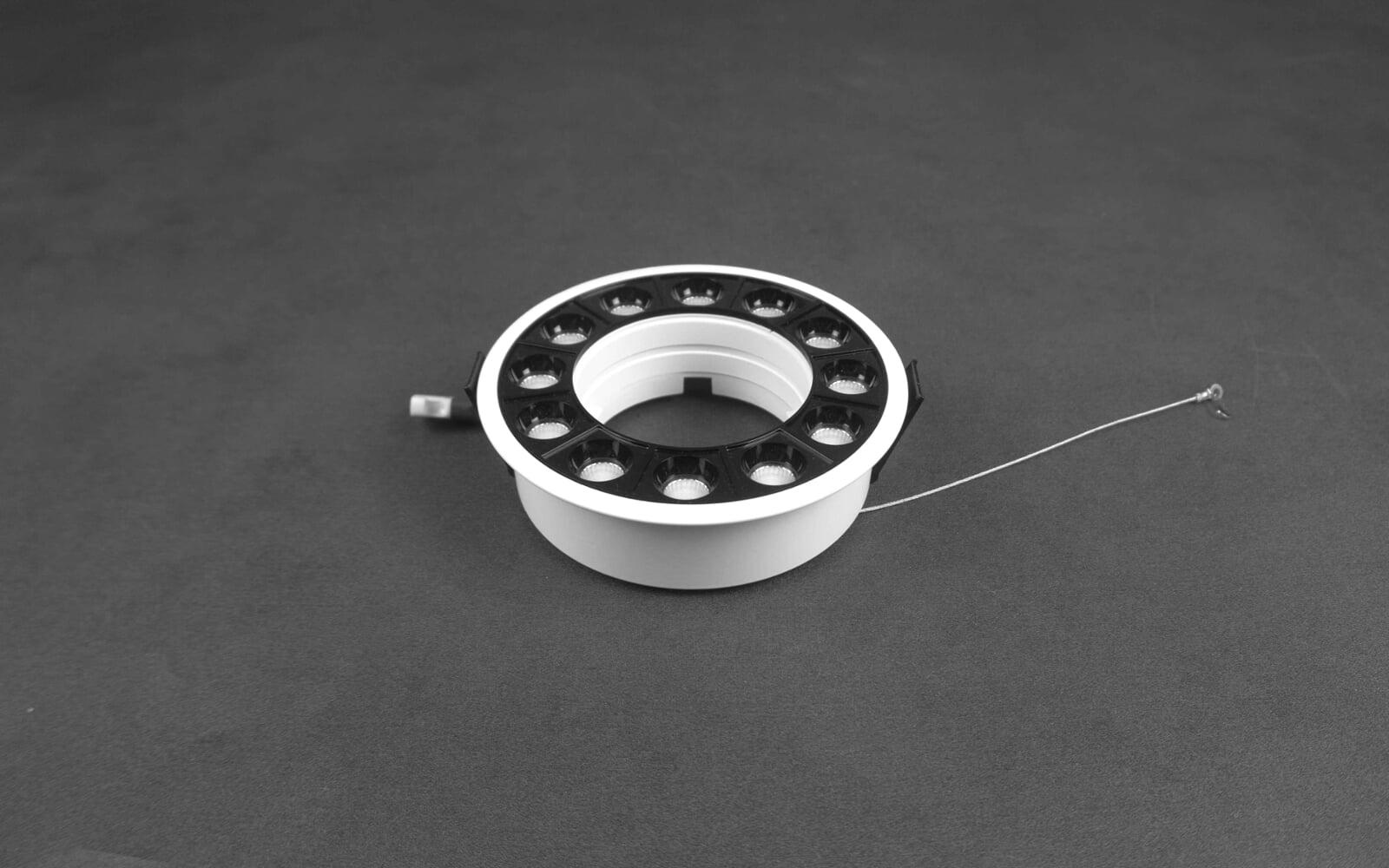

      LN-CR-RIM12

      • Max.  15W
      • OSRAM CRI80/90
      • Beam angle 20/34/48
      • UGR<17
      • Mesh control, 0-10V, DALI optional

      Need more help?

      Inquiry Now
      Electrical
      LEDs
      Optical
      Materials
      Downloads
      On request
      Electrical

      Power:*

      15W

      Input Voltage:

      AC220-240V, or AC100-250V optional

      Dimming:

      On/Off, TRIAC, 0/1-10V, DALI optional

      Class:

      III SELV

      Ambient Temperature:

      0 - 40℃

      Relative humidity:

      <85%

      LEDs

      LED Brand:

      OSRAM

      LED Chip Qty:

      12 pcs

      LED Type:

      SMD3030

      C.C.T.:

      3000K, 4000K, 6000K

      Color Randering Index:

      >80,>90

      Lumen Maintenance:

      LM80

      SDCM:

      4

      Optical

      Beam Angle:

      20°, 34°, 48°

      Luminous Flux (LED):*

      1450lm

      Lumen Efficiency(LED):*

      120lm/W

      Luminous Flux (Luminare):*

      1000lm

      Lumen Efficiency (Luminare):*

      75lm/W

      Materials

      Body & Heatsink:

      Die-casting Aluminum

      Optics:

      Optical PMMA

      Installation:

      Ceiling recessed

      Surface Treament:

      Powder-coated, Ring: sanded black

      Housing Color:

      white

      IP Grade:

      IP20

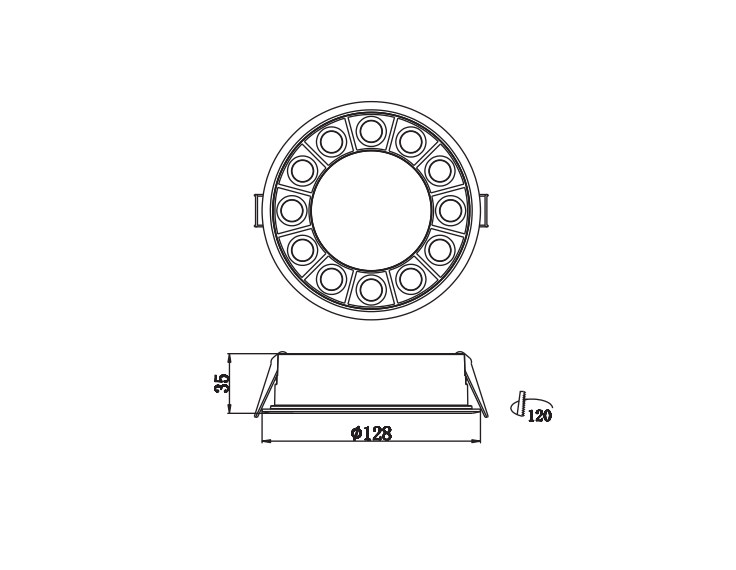

      Size:

      D128mm, Height: 35mm

      Cutout:

      D120mm

      Certificates:

      CE

      Downloads
      Product Specification Download
      On request

      - different power, CRI, C.C.T..

      - other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.

      - other Drivers, OSRAM, PHILIPS, Meanwell, KEGU, Lifud, etc.

      - dimming functions: TRIAC, 0/1-10V, DALI, Mesh, 2.5G

      - emergency kit with specific duration.

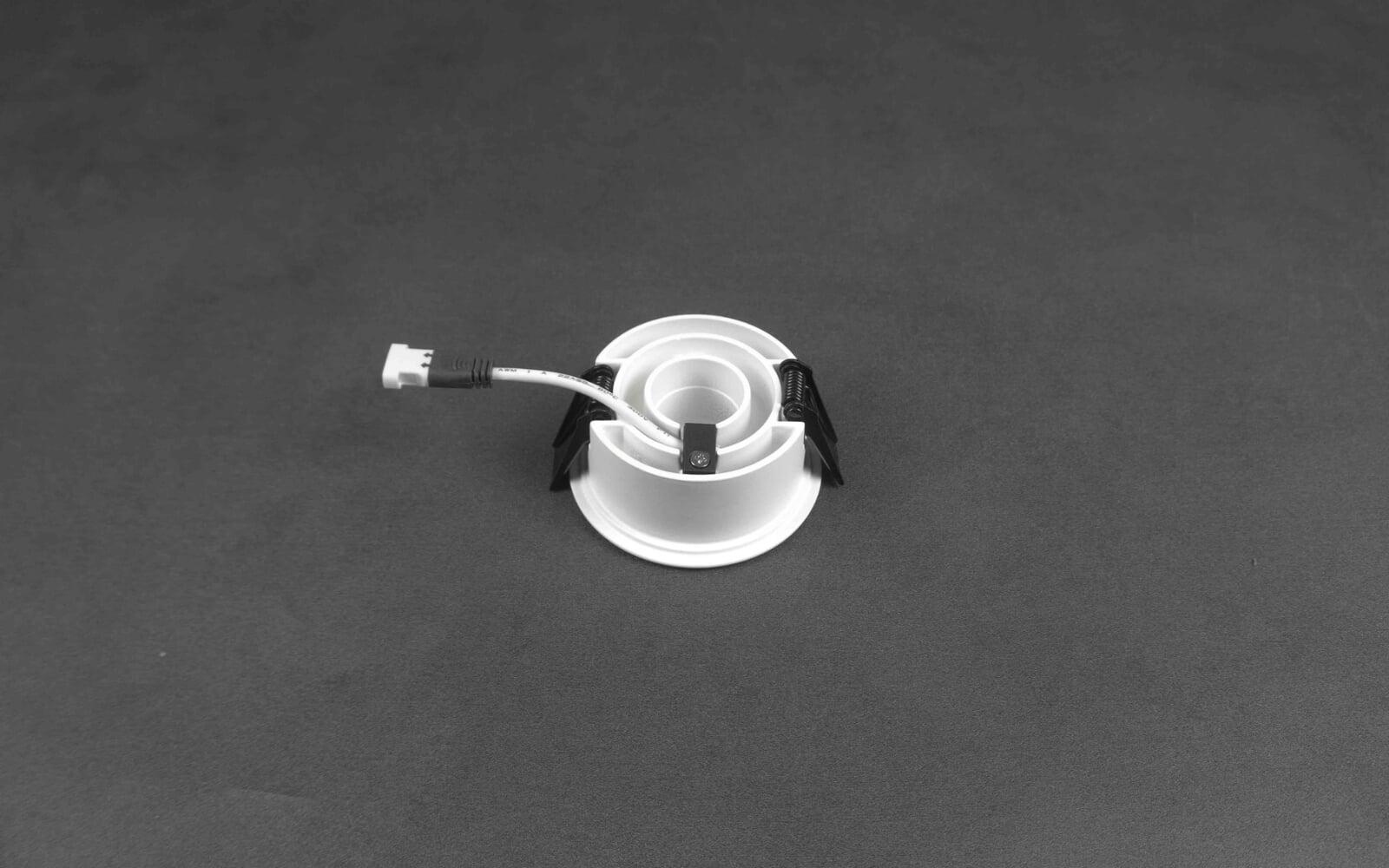

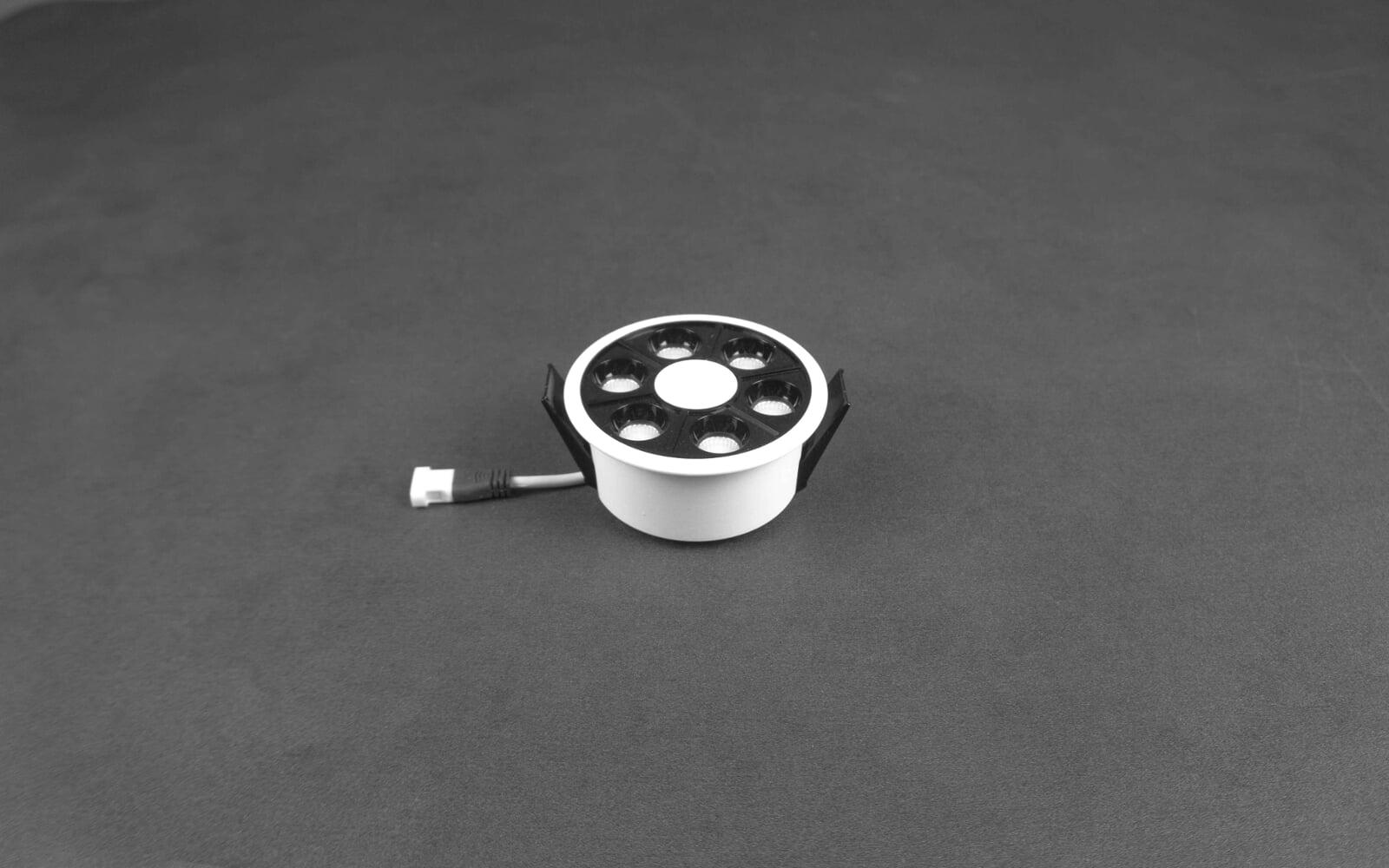

        LN-CR-RIM6

        • Max.  8W
        • OSRAM CRI80/90
        • Beam angle 20/34/48
        • UGR<17
        • Mesh control, 0-10V, DALI optional

        Need more help?

        Inquiry Now
        Electrical
        LEDs
        Optical
        Materials
        Downloads
        On request
        Electrical

        Power:*

        8W Max.

        Input Voltage:

        AC220-240V, or AC100-250V optional

        Dimming:

        On/Off, TRIAC, 0/1-10V, DALI optional

        Class:

        III SELV

        Ambient Temperature:

        0 - 40℃

        Relative humidity:

        <85%

        LEDs

        LED Brand:

        OSRAM

        LED Chip Qty:

        6 pcs

        LED Type:

        SMD3030

        C.C.T.:

        3000K, 4000K, 6000K

        Color Randering Index:

        >80,>90

        Lumen Maintenance:

        LM80

        SDCM:

        4

        Optical

        Beam Angle:

        20°, 34°, 48°

        Luminous Flux (LED):*

        850lm

        Lumen Efficiency(LED):*

        120lm/W

        Luminous Flux (Luminare):*

        580lm

        Lumen Efficiency (Luminare):*

        75lm/W

        Materials

        Body & Heatsink:

        Die-casting Aluminum

        Optics:

        Optical PMMA

        Installation:

        Ceiling recessed

        Surface Treament:

        Powder-coated, Ring: sanded black

        Housing Color:

        white

        IP Grade:

        IP20

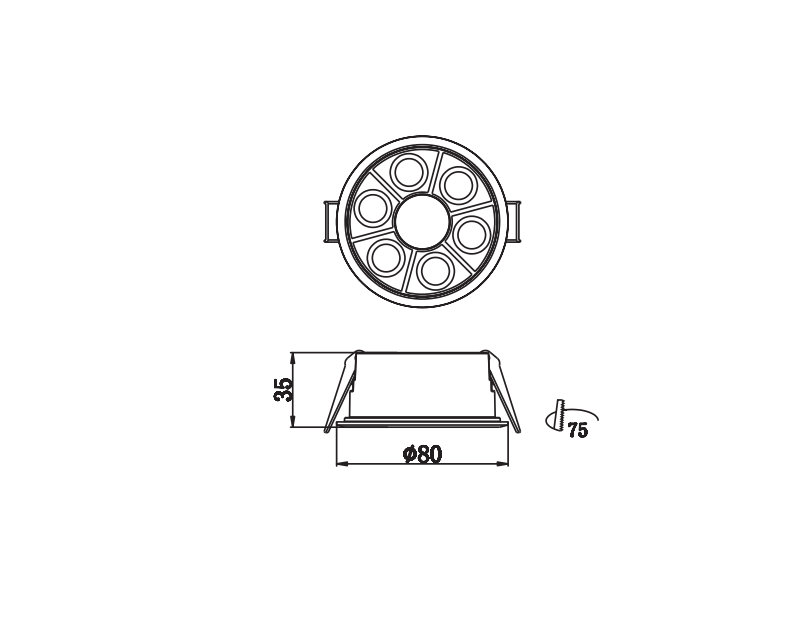

        Size:

        D80mm, Height: 35mm

        Cutout:

        D75mm

        Certificates:

        CE

        Downloads
        Product Specification Download
        On request

        - different power, CRI, C.C.T..

        - other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.

        - other Drivers, OSRAM, PHILIPS, Meanwell, KEGU, Lifud, etc.

        - dimming functions: TRIAC, 0/1-10V, DALI, Mesh, 2.5G

        - emergency kit with specific duration.

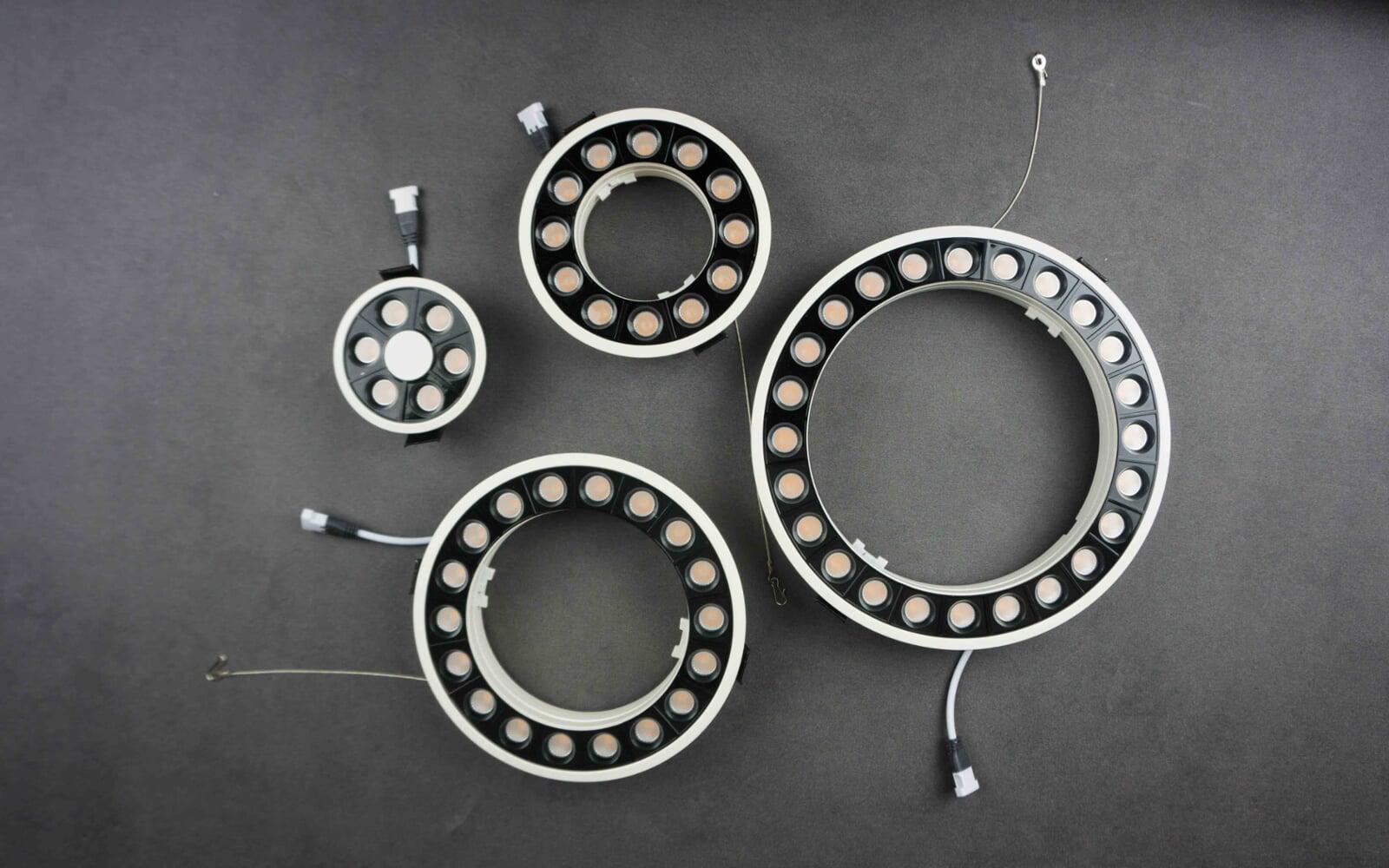

          In the same series

          RIM

          LN-CR-RIM24

          Check Now

          LN-CR-RIM18

          Check Now

          LN-CR-RIM12

          Check Now

          LN-CR-RIM6

          Check Now

          LN-CR-RIM-I24

          Check Now

          LN-CR-RIM-I18

          Check Now

          LN-CR-RIM-I12

          Check Now

          LN-CR-RIM-D24

          Check Now

          LN-CR-RIM-D18

          Check Now

          LN-CR-RIM-D12

          Check Now

          LN-CR-RIM-TS24

          Check Now

          LN-CR-RIM-TS18

          Check Now

          LN-CR-RIM-TS12

          Check Now

          LN-CR-RIM-S24

          Check Now

          LN-CR-RIM-S18

          Check Now

          LN-CR-RIM-S12

          Check Now

          LN-CR-RIM-C24

          Check Now

          LN-CR-RIM-C18

          Check Now

          LN-CR-RIM-C12

          Check Now
          *Due to the differences in test instruments and electronic components, the specific data may vary. Please confirm the specific parameters of the lamp before ordering to avoid misunderstanding. The luminous flux data and electrical data on the website will have  +/-10% tolerance and measured at Tc 25℃ indoors.

          *Dimensions and specifications subject to alterations without notice.
