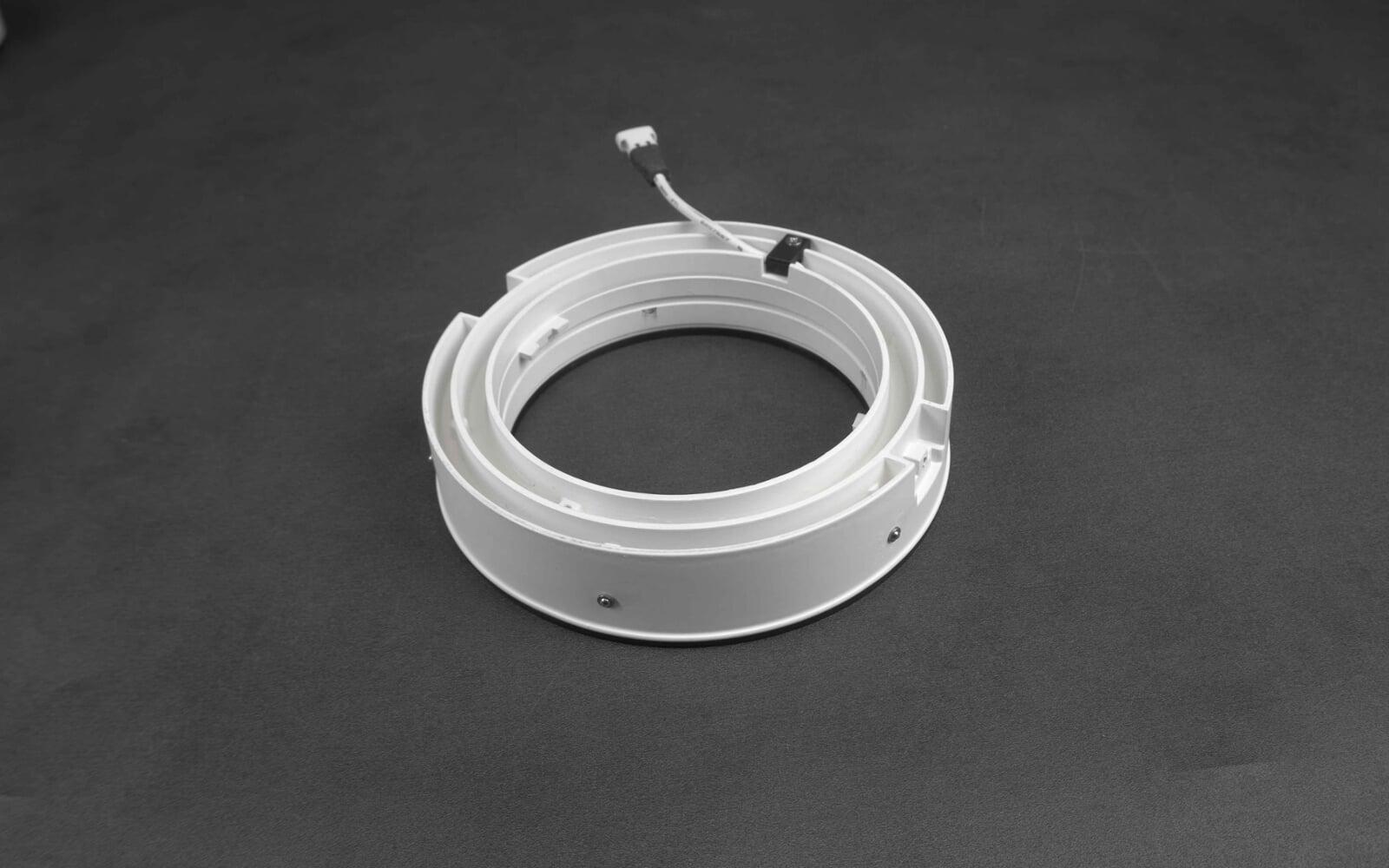

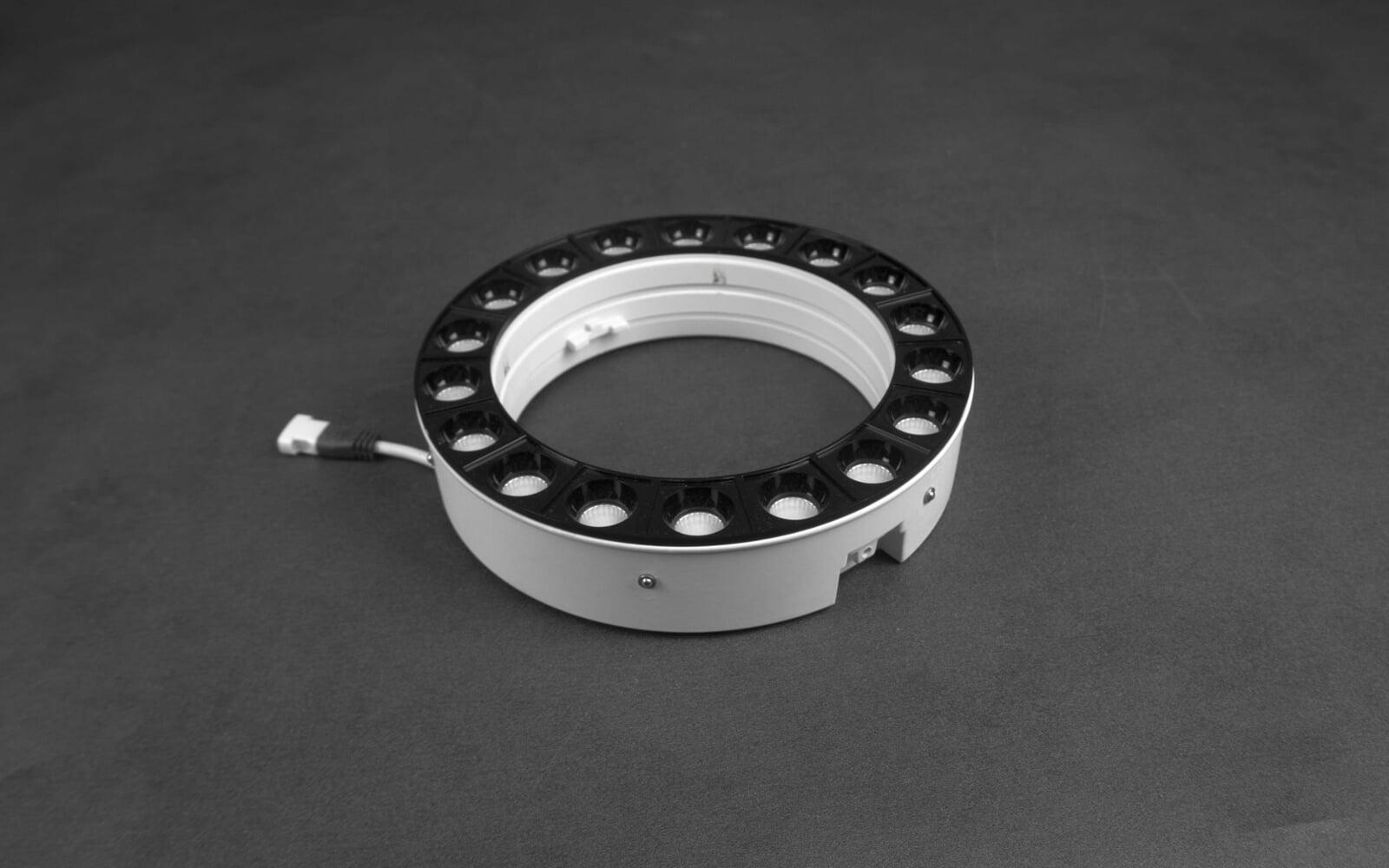

LN-CR-RIM-I24
- Max. 20W
- OSRAM CRI80/90
- Beam angle 20/34/48
- URG <17
- Mesh control, 0-10V, DALI optional
Need more help？
Power:*
20W
Input Voltage:
AC220-240V, or AC100-250V optional
Dimming：
On/Off, TRIAC, 0/1-10V, DALI optional
Class：
III SELV
Ambient Temperature：
0 - 40℃
Relative humidity：
<85%
LED Brand:
OSRAM
LED Chip Qty:
18 pcs
LED Type:
SMD3030
C.C.T.：
3000K, 4000K, 6000K
Color Randering Index:
>80,>90
Lumen Maintenance:
LM80
SDCM:
4
Beam Angle:
20°, 34°, 48°
Luminous Flux (LED):*
2150lm
Lumen Efficiency(LED)：*
120lm/W
Luminous Flux (Luminare):*
1500lm
Lumen Efficiency (Luminare):*
75lm/W
Body & Heatsink:
Die-casting Aluminum
Optics:
Optical PMMA
Installation:
Ceiling recessed
Surface Treament:
Powder-coated, Ring: sanded black
Housing Color:
white
IP Grade:
IP20

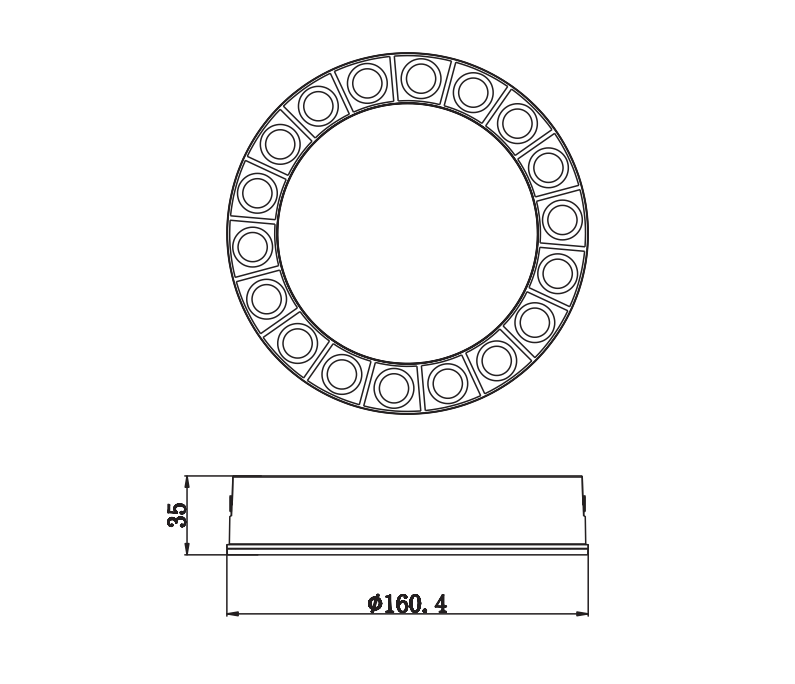

Size:
D160mm, Height: 35mm
Cutout:
fit for RIM24
Certificates:
CE
- different power, CRI, C.C.T..
- other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.
- other Drivers, OSRAM, PHILIPS, Meanwell, KEGU, Lifud, etc.
- dimming functions: TRIAC, 0/1-10V, DALI, Mesh, 2.5G
- emergency kit with specific duration.

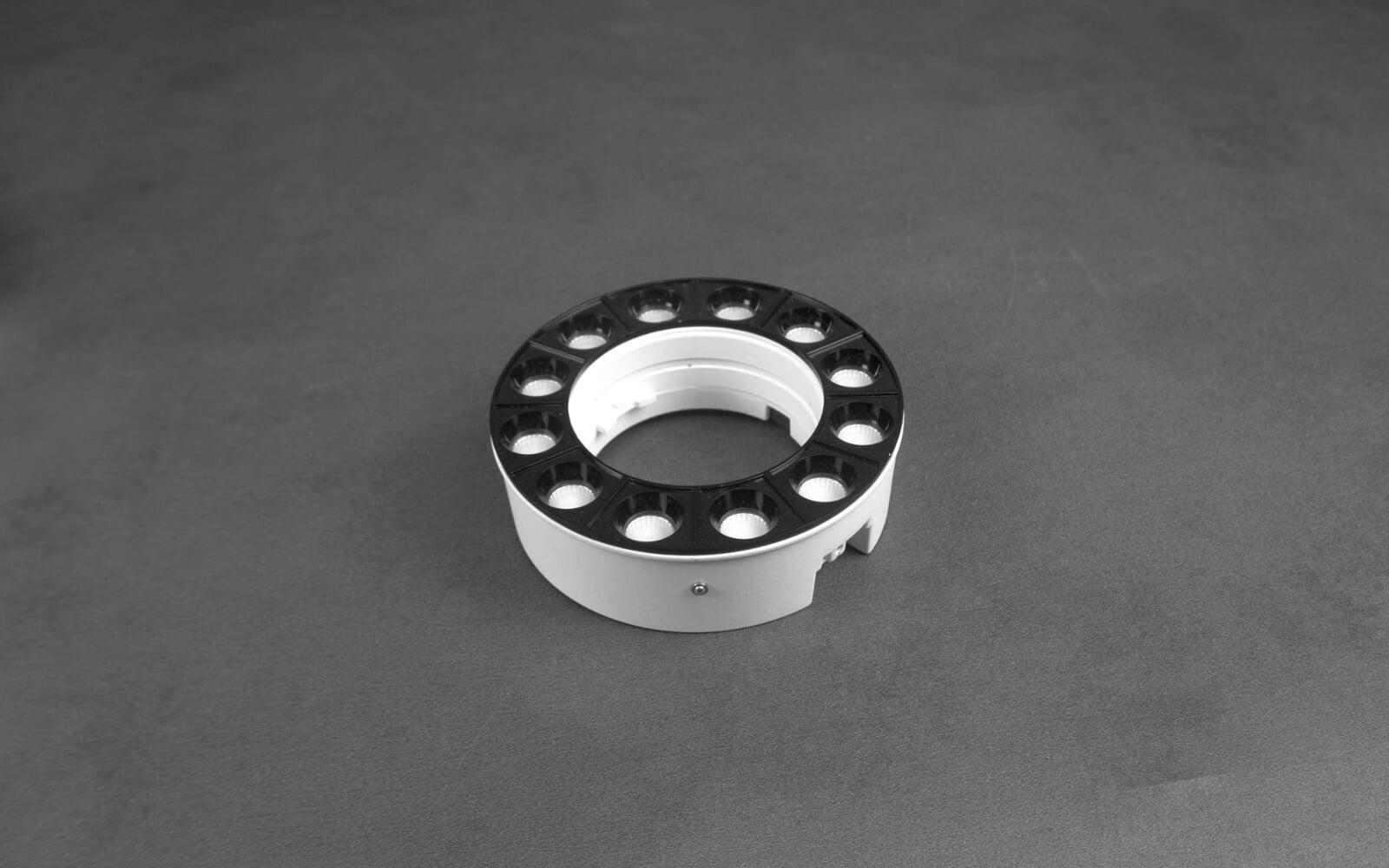

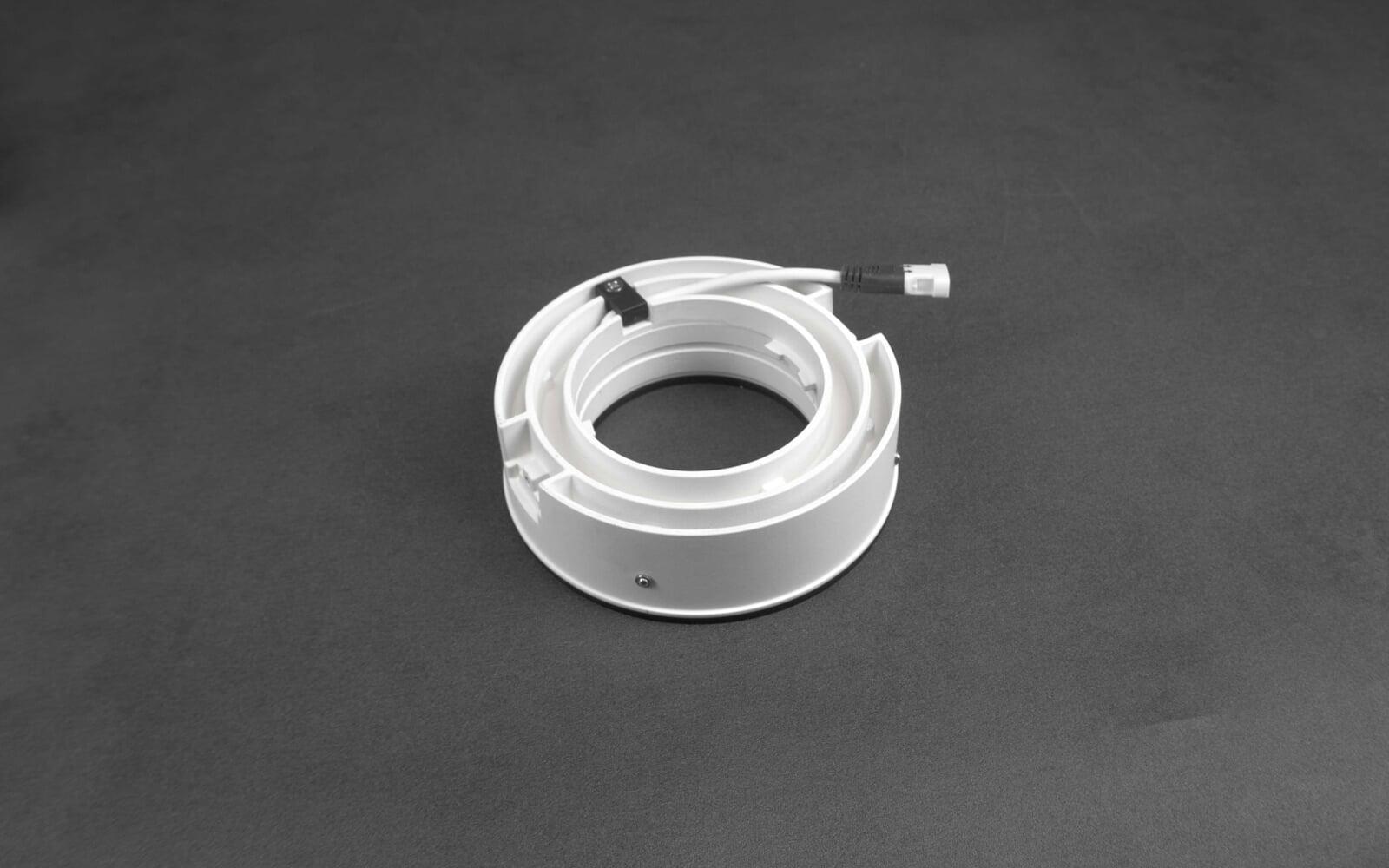

LN-CR-RIM-I18
- Max. 15W
- OSRAM CRI80/90
- Beam angle 20/34/48
- UGR<17
- Mesh control, 0-10V, DALI optional
Need more help？
Power:*
15W
Input Voltage:
AC220-240V, or AC100-250V optional
Dimming：
On/Off, TRIAC, 0/1-10V, DALI optional
Class：
III SELV
Ambient Temperature：
0 - 40℃
Relative humidity：
<85%
LED Brand:
OSRAM
LED Chip Qty:
12 pcs
LED Type:
SMD3030
C.C.T.：
3000K, 4000K, 6000K
Color Randering Index:
>80,>90
Lumen Maintenance:
LM80
SDCM:
4
Beam Angle:
20°, 34°, 48°
Luminous Flux (LED):*
1450lm
Lumen Efficiency(LED)：*
120lm/W
Luminous Flux (Luminare):*
1000lm
Lumen Efficiency (Luminare):*
75lm/W
Body & Heatsink:
Die-casting Aluminum
Optics:
Optical PMMA
Installation:
Ceiling recessed
Surface Treament:
Powder-coated, Ring: sanded black
Housing Color:
white
IP Grade:
IP20

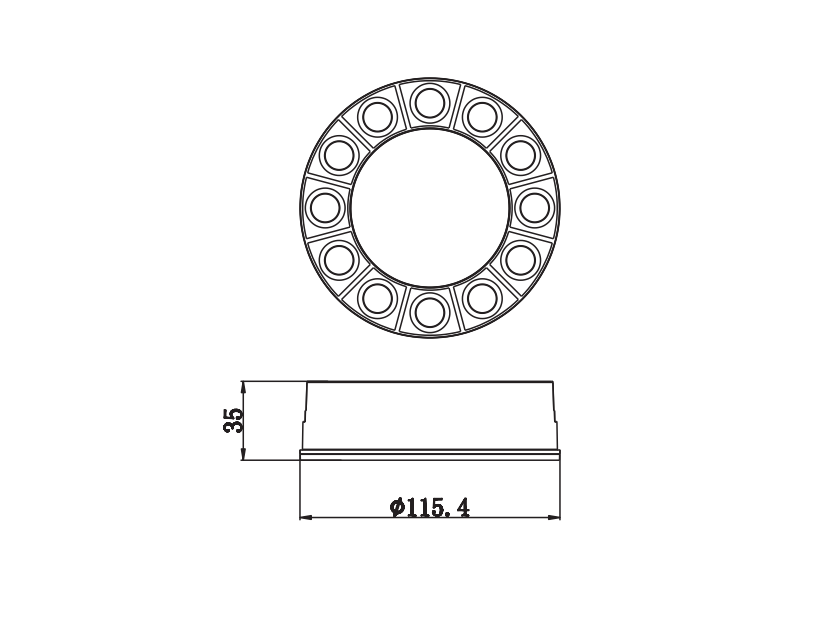

Size:
D115mm, Height: 35mm
Cutout:
fit for RIM18
Certificates:
CE
- different power, CRI, C.C.T..
- other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.
- other Drivers, OSRAM, PHILIPS, Meanwell, KEGU, Lifud, etc.
- dimming functions: TRIAC, 0/1-10V, DALI, Mesh, 2.5G
- emergency kit with specific duration.

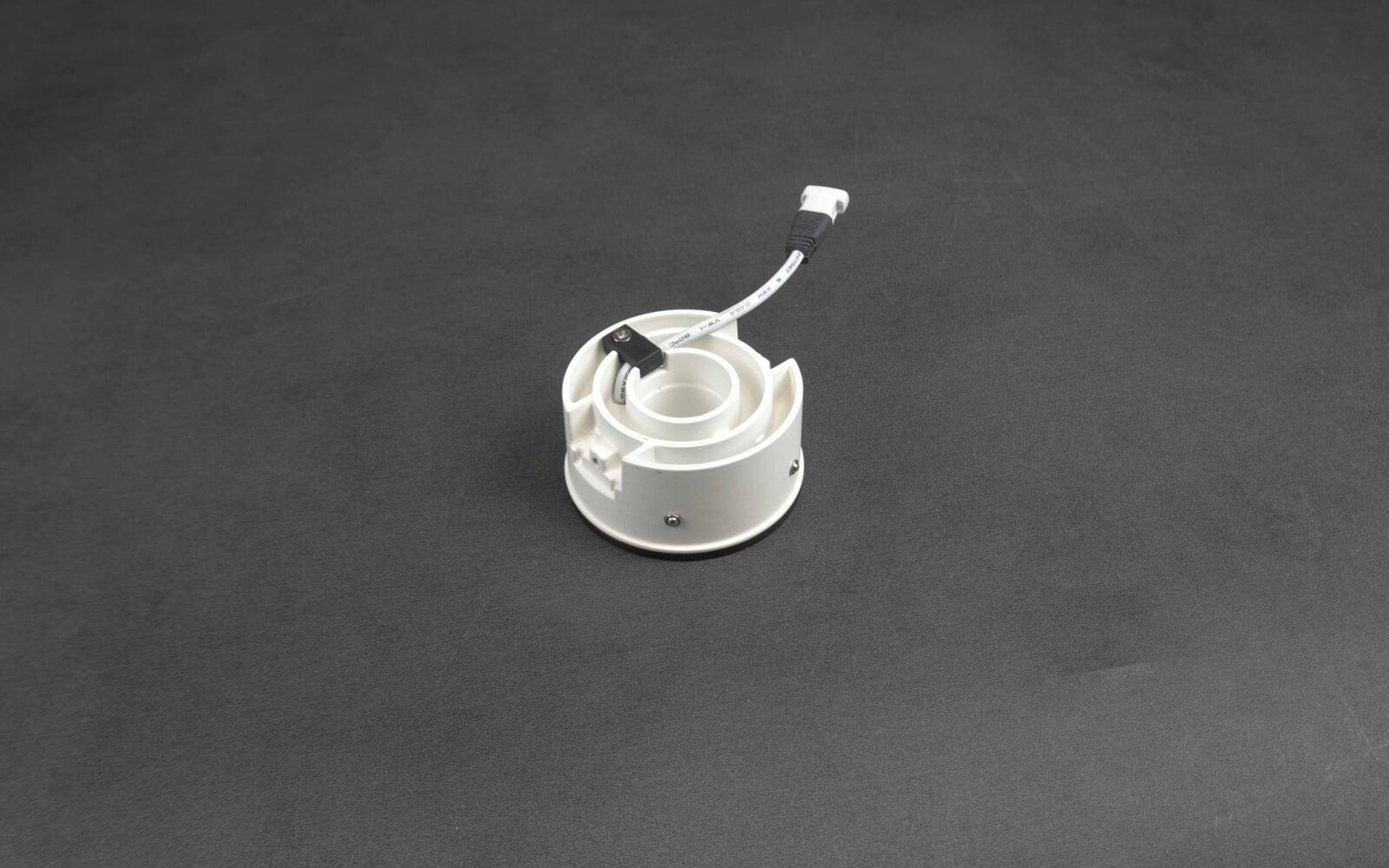

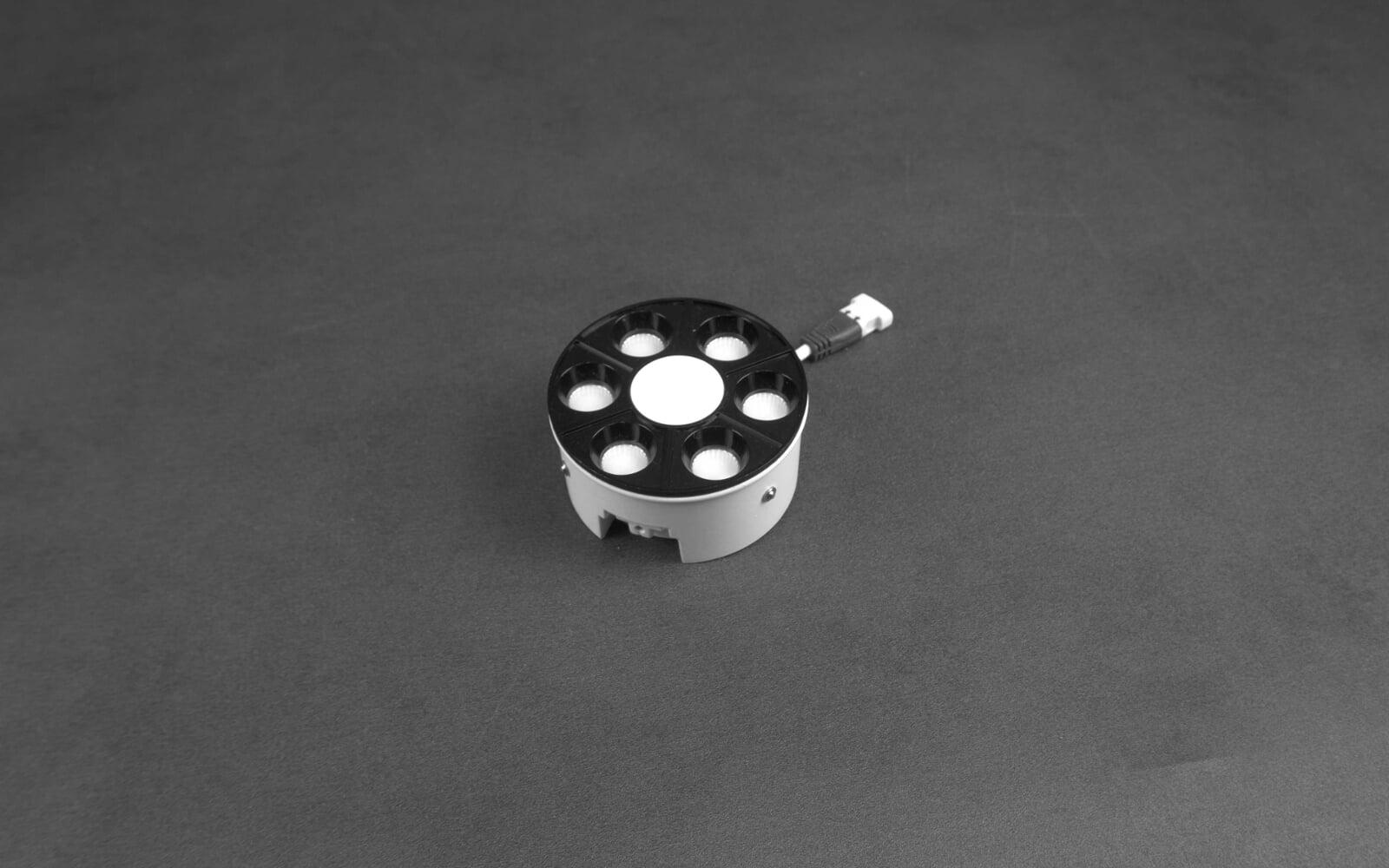

LN-CR-RIM-I12
- Max. 8W
- OSRAM CRI80/90
- Beam angle 20/34/48
- UGR<17
- Mesh control, 0-10V, DALI optional
Need more help？
Power:*
8W Max.
Input Voltage:
AC220-240V, or AC100-250V optional
Dimming：
On/Off, TRIAC, 0/1-10V, DALI optional
Class：
III SELV
Ambient Temperature：
0 - 40℃
Relative humidity：
<85%
LED Brand:
OSRAM
LED Chip Qty:
6 pcs
LED Type:
SMD3030
C.C.T.：
3000K, 4000K, 6000K
Color Randering Index:
>80,>90
Lumen Maintenance:
LM80
SDCM:
4
Beam Angle:
20°, 34°, 48°
Luminous Flux (LED):*
850lm
Lumen Efficiency(LED)：*
120lm/W
Luminous Flux (Luminare):*
580lm
Lumen Efficiency (Luminare):*
75lm/W
Body & Heatsink:
Die-casting Aluminum
Optics:
Optical PMMA
Installation:
Ceiling recessed
Surface Treament:
Powder-coated, Ring: sanded black
Housing Color:
white
IP Grade:
IP20

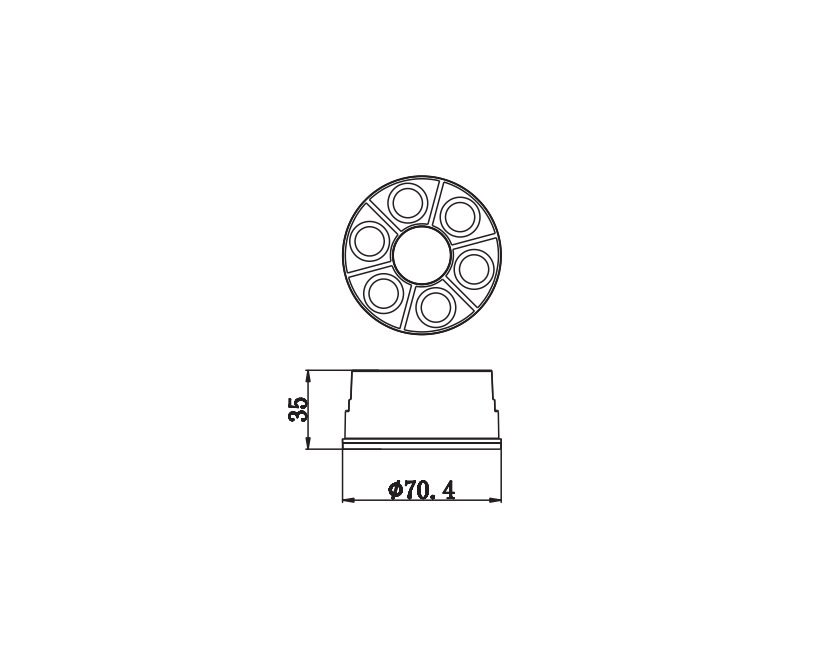

Size:
D70mm, Height: 35mm
Cutout:
fit for RIM12
Certificates:
CE
- different power, CRI, C.C.T..
- other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.
- other Drivers, OSRAM, PHILIPS, Meanwell, KEGU, Lifud, etc.
- dimming functions: TRIAC, 0/1-10V, DALI, Mesh, 2.5G
- emergency kit with specific duration.
