Recessed Spotlight CRH Series 10W

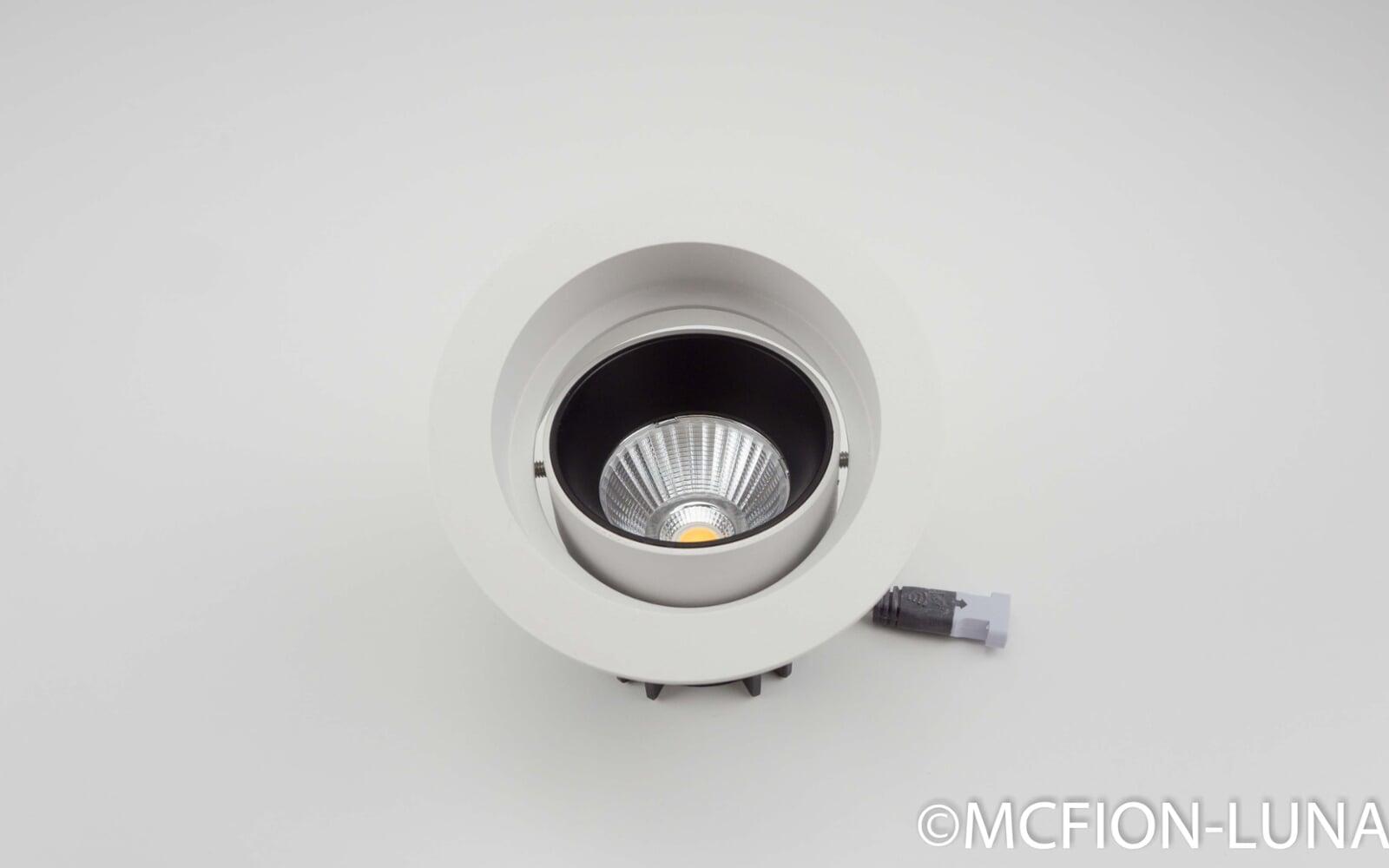

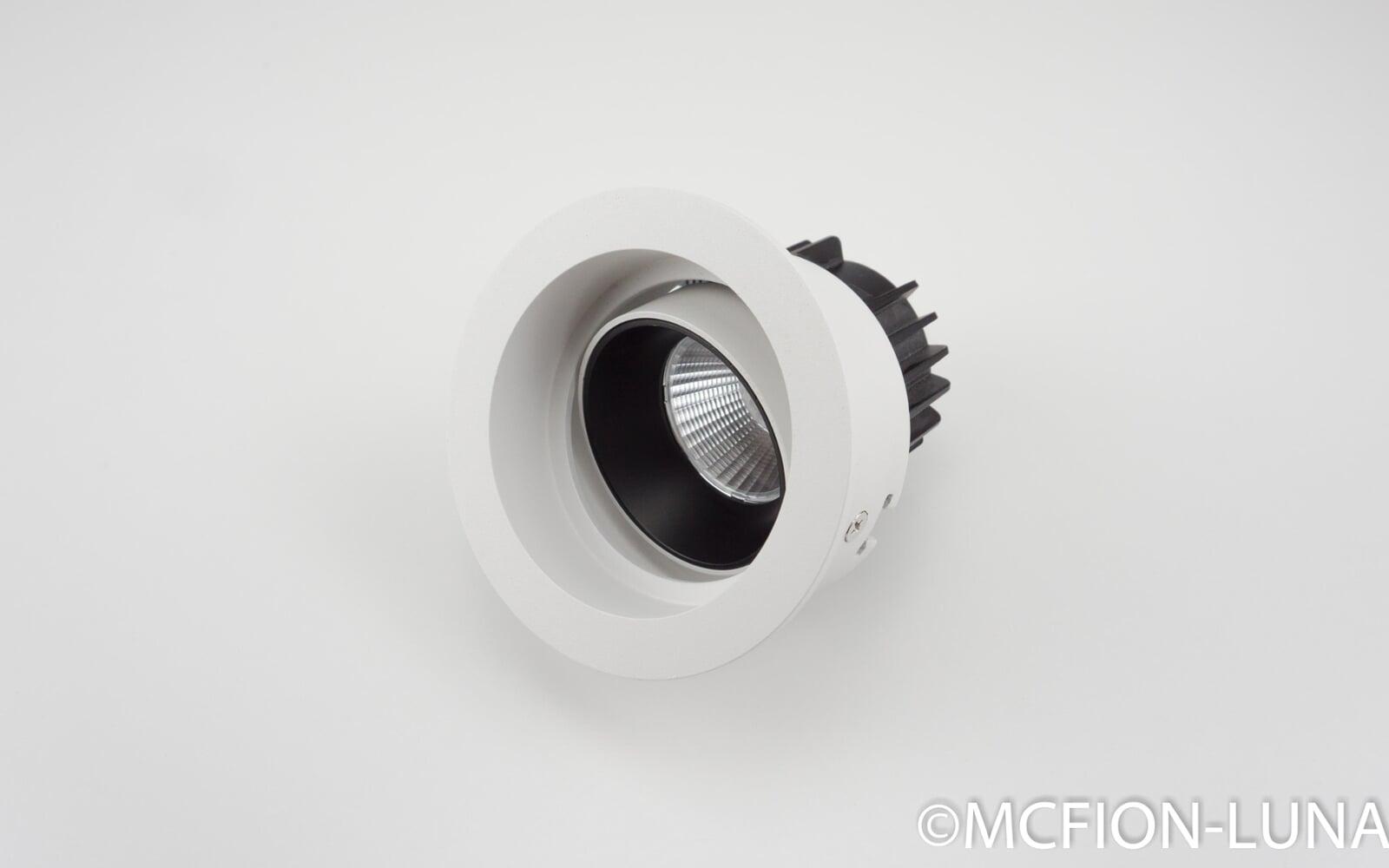

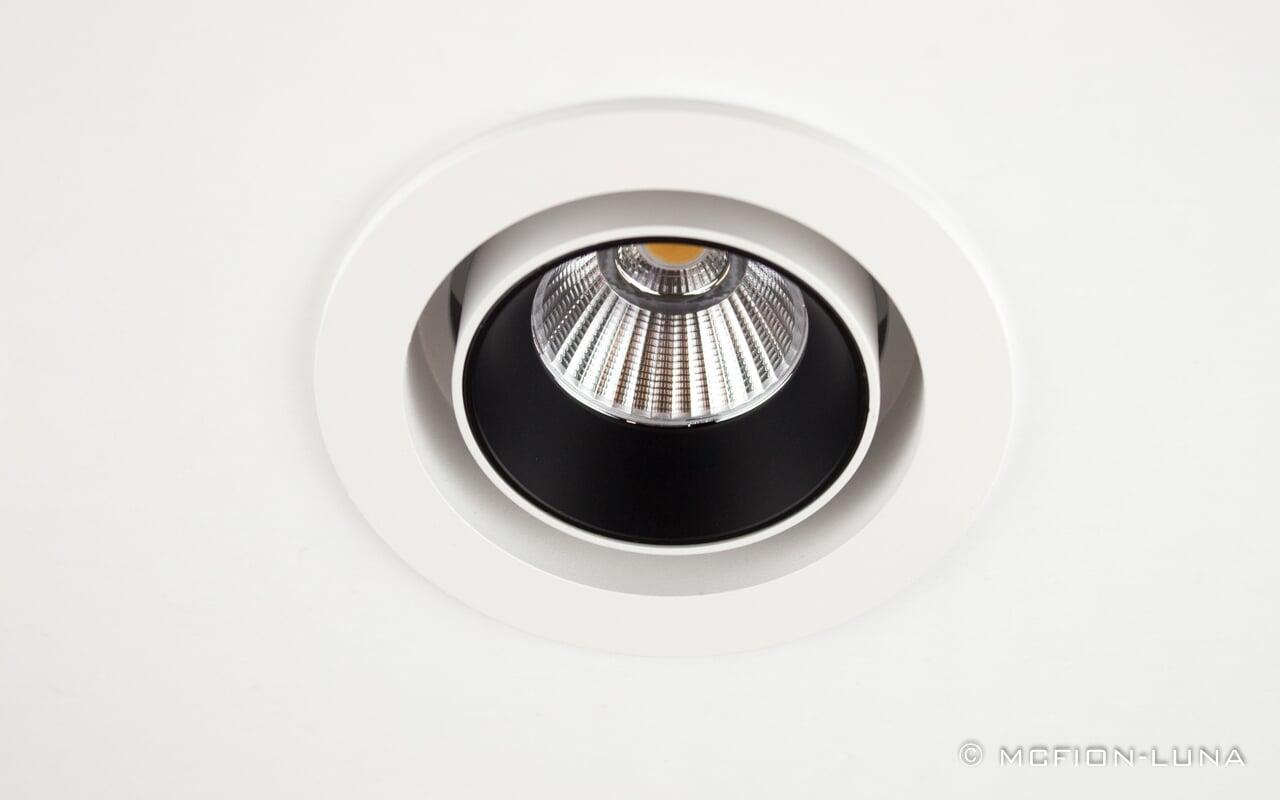

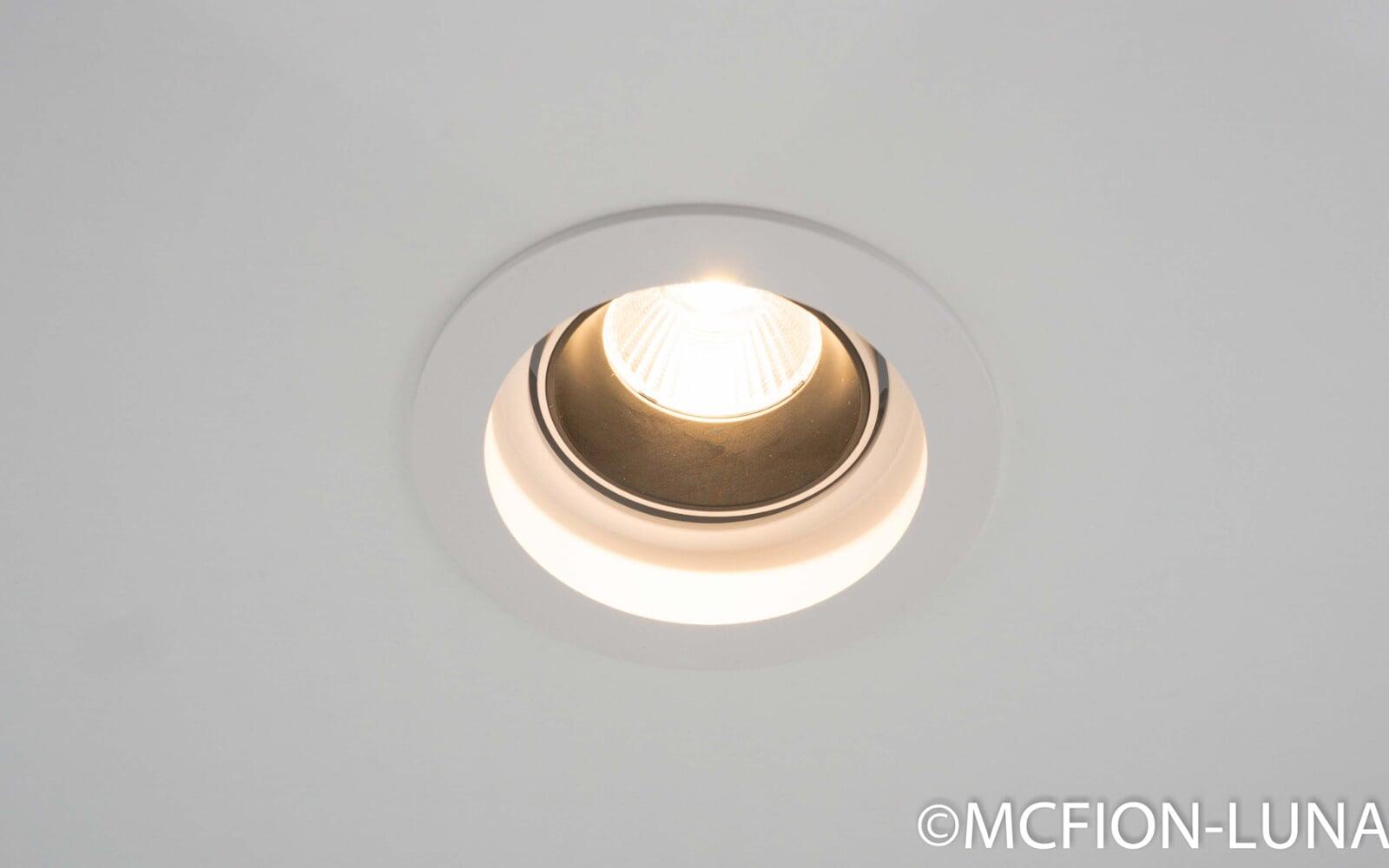

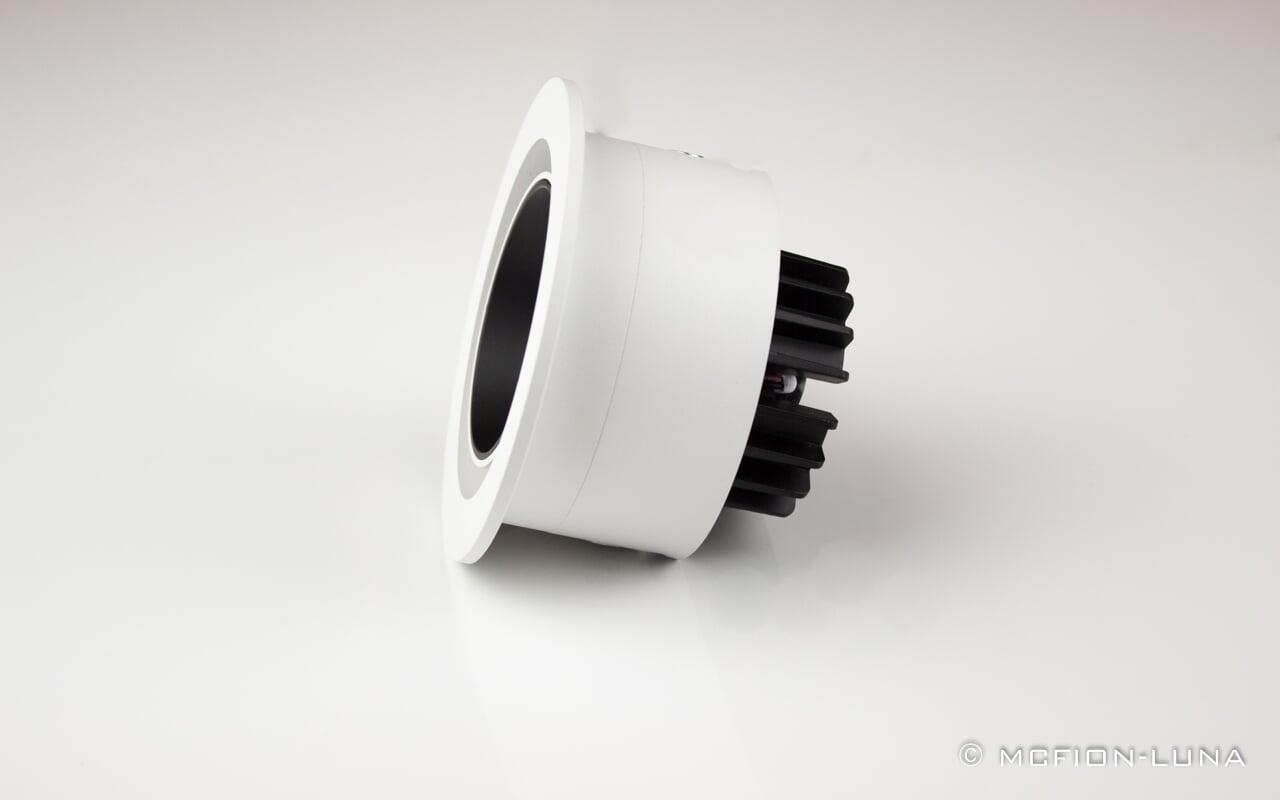

CRH Recessed Spotlight 10W CRH10-7

LUNA Magnetic Track System is a new comprehensive and flexible system to design light in space.

48VDC low-voltage safe power supply, allowing customers to safely put their hands into the track to disassemble and assemble the lamps.

Customers pre-installed the track: Extruded aluminum housing slots, and then matched different surface lighting, spotlights, chandeliers, wall washer and other lamps according to the actual application scene. The light elements snap in place and connect automatically though the magic of magnets.


Applications

architectural, commercial, exhibition areas, transit areas, corridors, shops, display windows, service areas, offices, staterooms, schools, halls, households, etc

LN-CRH10-7

  • Max. 10W, 5-10W optional
  • CREE CRI93
  • Beam angle 0-45
  • Mesh control, 0-10V, DALI optional

Need more help?

Electrical
LEDs
Optical
Materials
Downloads
On request
Electrical

Power:*

10W Max.  5-10W optional

Input Voltage:

AC220-240V, or AC100-250V optional

Dimming:

On/Off, TRIAC, 0/1-10V, DALI optional

Class:

III SELV

Ambient Temperature:

0 - 40℃

Relative humidity:

<85%

LEDs

LED Brand:

CREE, OSRAM optional

LED Chip Qty:

1pcs

LED Type:

COB

C.C.T.:

3000K, 4000K, 6500K

Color Randering Index:

>90

Lumen Maintenance:

LM80

SDCM:

4

Optical

Beam Angle:

0°-45°

Luminous Flux (LED):*

1250lm

Lumen Efficiency(LED):*

125lm/W

Luminous Flux (Luminare):*

875lm (at 24°)

Lumen Efficiency (Luminare):*

70lm/W (at 24°)

Materials

Body & Heatsink:

Die-casting Aluminum

Optics:

Optical PMMA

Installation:

Ceiling recessed, Thickness, Max. 25mm.

Surface Treament:

Powder-coated, Ring: sanded white

Housing Color:

Sanded black

IP Grade:

IP20

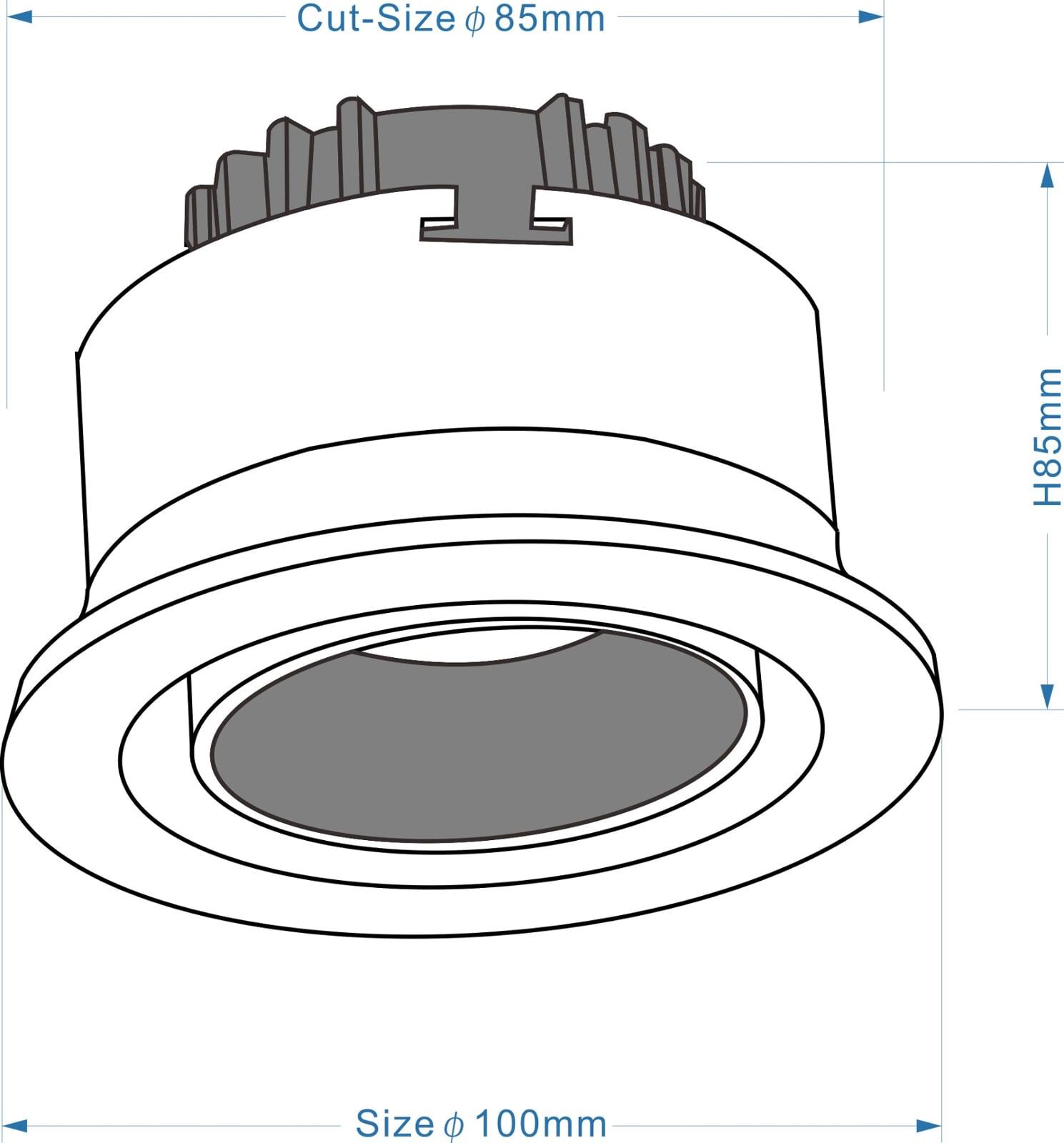

Size:

φ100mm, H85mm

Cutout:

φ85mm

Certificates:

CE

Downloads
On request

- different power, CRI, C.C.T..

- other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.

- other Drivers, OSRAM, PHILIPS, Meanwell, KEGU, Lifud, etc.

- dimming functions: TRIAC, 0/1-10V, DALI, Mesh, 2.5G

- emergency kit with specific duration.

    In the same series

    LN-CRH10-1

    Angle adjustable  D76mm φ60mm

    LN-CRH10-2

    Straight adjustable D108mm φ95mm

    LN-CRH10-3

    High curve fixed D85mm φ70mm

    LN-CRH10-4

    Black ring fixed D80mm φ65mm

    LN-CRH10-5

    Black ring adjustable D92mm φ80mm

    LN-CRH10-6

    Curve edge fixed D86mm φ68mm

    LN-CRH10-7

    Deep black adjustable D100mm φ85mm

    LN-CRH10-8

    Tiny white fixed D75mm φ60mm

    LN-CRH10-9

    Tiny white adjustable D86mm φ75mm

    LN-CRH10-10

    Big white adjustable D100 φ90mm

    *Due to the differences in test instruments and electronic components, the specific data may vary. Please confirm the specific parameters of the lamp before ordering to avoid misunderstanding. The luminous flux data and electrical data on the website will have  +/-10% tolerance and measured at Tc 25℃ indoors.

    *Dimensions and specifications subject to alterations without notice.
