CMG-TS Spotlight
SPECIFICATIONS FOR " CTYLB TRACK LIGHT 12W 20W 35W "

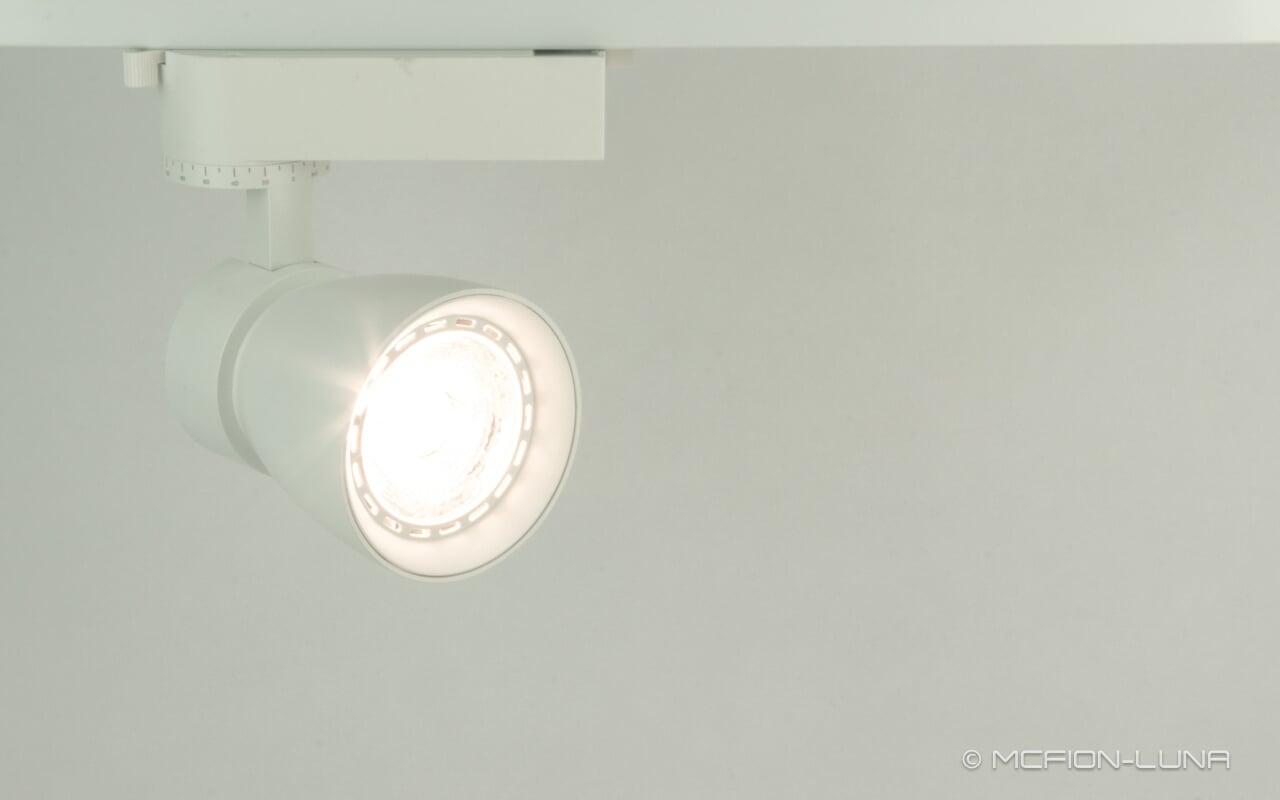

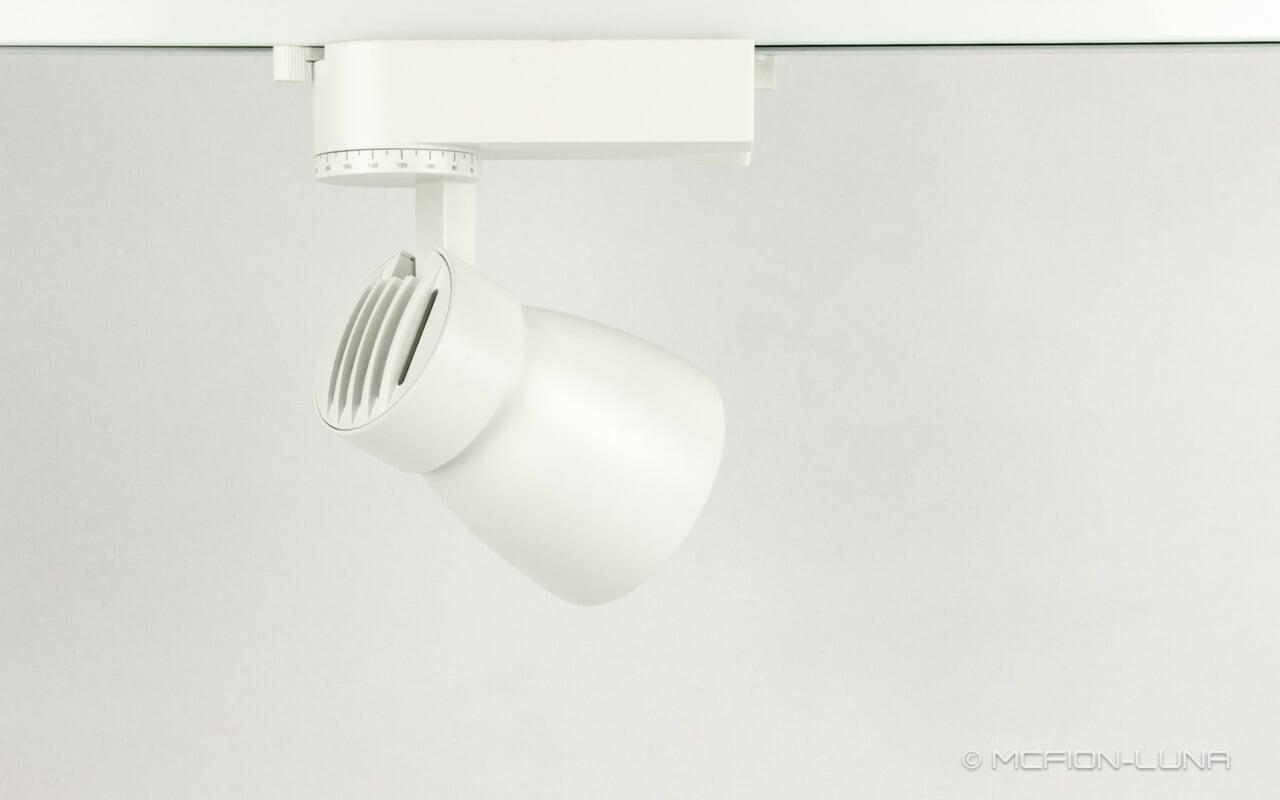

Indoor adjustable spotlight with adapter for installation on a three-phase/DALI track. Device made of die-cast aluminium and a frontpart made of a thermoplastic material. Spotlight double adjustability allows a 360° rotation about the vertical axis and 90° tiltingrelative to the horizontal plane. Optical assembly consisting of Neutral White tone 4000K LEDs with OPTIBEAM LENS technologyand a well-defined spot light beam. Dimmable driver built-in to box with a semi-hidden system on track. Option of installing a rangeof flat accessories including an OPTIBEAM REFRACTOR for varying light distribution, an elliptical distribution refractor, a louver, asoft lens and an outdoor accessory like an asymmetric visor for eliminating stray light dispersion on the ceiling.

LN-CT-YLB-W

  • Max. 20W,12-25W optional
  • CREE CRI93
  • Beam angle 15/24/40
  • Mesh control, 0-10V, DALI optional

Need more help?

Electrical
LEDs
Optical
Materials
Downloads
On request
Electrical

Power:*

20W Max.  12-25W optional

Input Voltage:

AC220-240V, or AC100-250V optional

Dimming:

On/Off, TRIAC, 0/1-10V, DALI optional

Class:

III SELV

Ambient Temperature:

0 - 40℃

Relative humidity:

<85%

LEDs

LED Brand:

COB

LED Chip Qty:

1pcs

LED Type:

COB

C.C.T.:

3000K, 4000K, 6000K

Color Randering Index:

>80,>90

Lumen Maintenance:

LM80

SDCM:

4

Optical

Beam Angle:

0°-36°

Luminous Flux (LED):*

2000lm

Lumen Efficiency(LED):*

100lm/W

Luminous Flux (Luminare):*

2000lm (at 24°)

Lumen Efficiency (Luminare):*

100lm/W(at 24°)

Materials

Body & Heatsink:

Die-casting Aluminum

Optics:

Optical PMMA

Installation:

Ceiling recessed, Thickness, Max. 25mm.

Surface Treament:

Powder-coated, Ring: sanded white

Housing Color:

Sanded white

IP Grade:

IP20

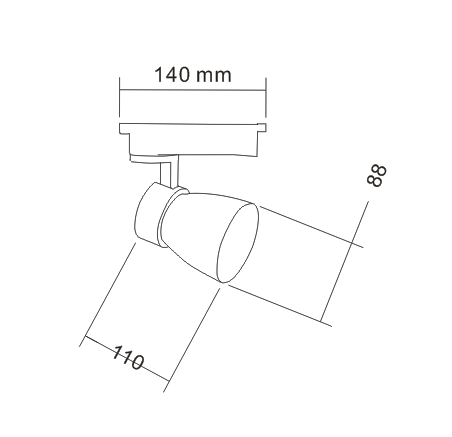

Size:

D73*L90mm; D88*110mm; D100*L120mm

Cutout:


Certificates:

CE

Downloads
On request

- different power, CRI, C.C.T..

- other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.

- other Drivers, OSRAM, PHILIPS, Meanwell, KEGU, Lifud, etc.

- dimming functions: TRIAC, 0/1-10V, DALI, Mesh, 2.5G

- emergency kit with specific duration.

    In the same series

    LN-CT-ZTOUGH-W

    D70*L108mm; D95*L125mm

    LN-CT-ZGEAR-B

    D93*L138mm

    LN-CT-ZCOLUMN-W

    D60*L160mm; D80*L180mm

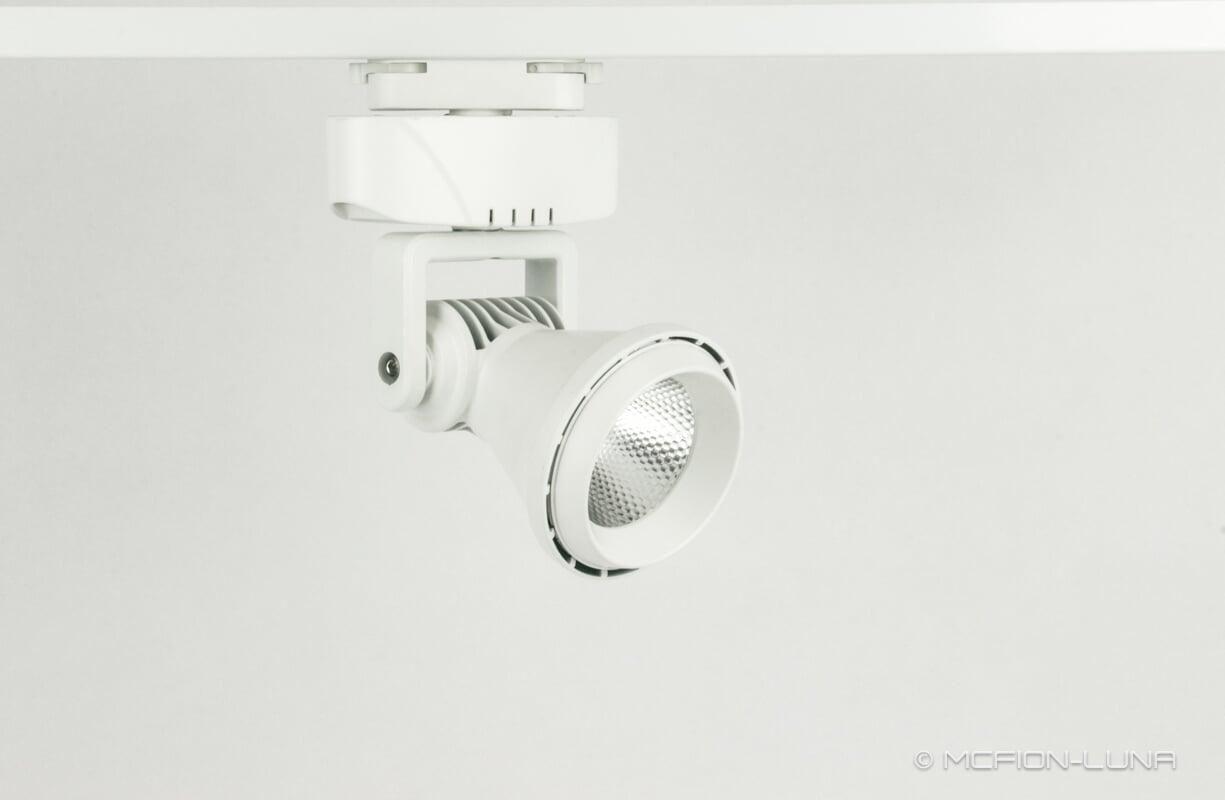

    LN-CT-YSPECAIAL-B

    D100*L160mm; D120*L170mm

    LN-CT-YLB-W

    D73*L90mm; D88*110mm

    LN-CT-YCOMPACT-W

    D60*L75mm; D78*L100mm

    LN-CT-YCOLUMNC-W

    D78*L135mm; D90*L168mm

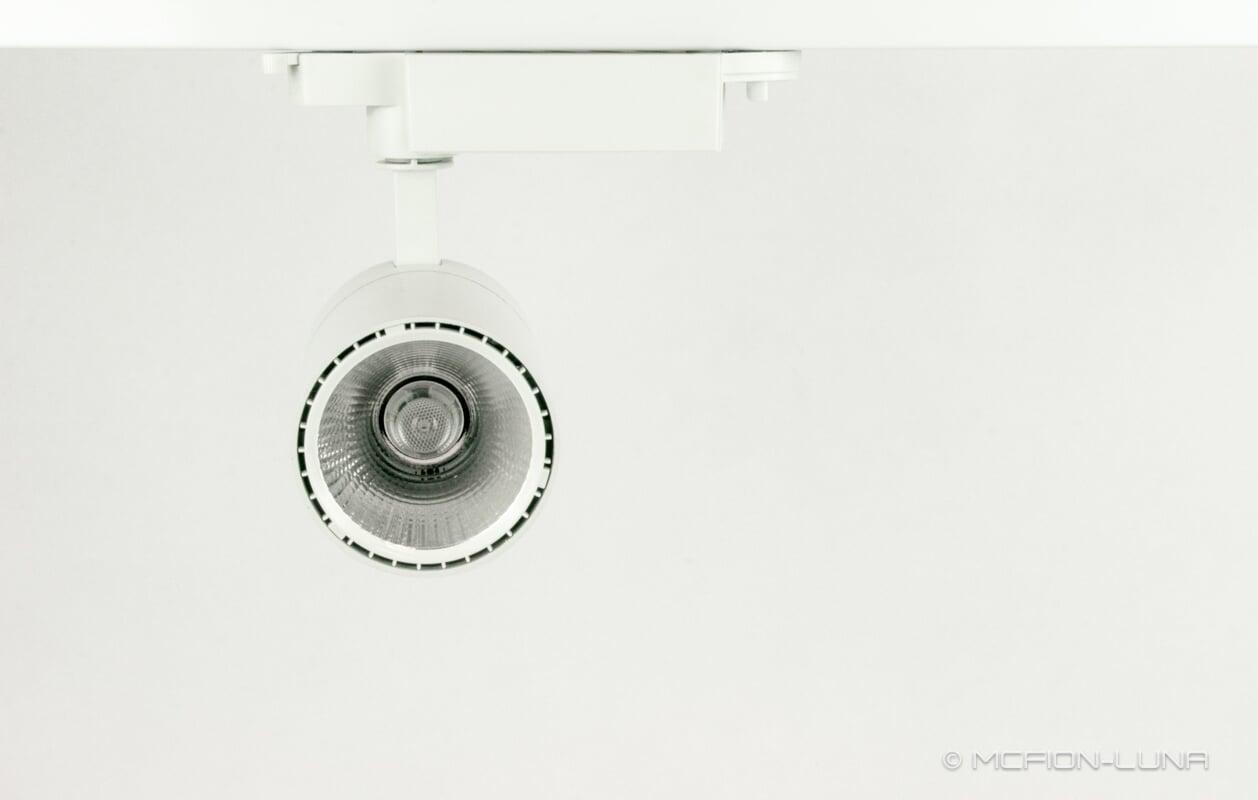

    LN-CT-XSIMPLE-W

    D70*L95mm; D82*L130mm

    LN-CT-M815-B

    D80*L150mm

    LN-CT-DSMALL02-B

    D40*L92mm

    LN-CT-DSMALL01-B

    D53*L100mm

    LN-CT-DLEN-W

    D65*L145mm; D75*L165mm

    LN-CT-ZRIM-W

    D93mm, L150mm

    *Due to the differences in test instruments and electronic components, the specific data may vary. Please confirm the specific parameters of the lamp before ordering to avoid misunderstanding. The luminous flux data and electrical data on the website will have  +/-10% tolerance and measured at Tc 25℃ indoors.

    *Dimensions and specifications subject to alterations without notice.
