CMG-TS Spotlight

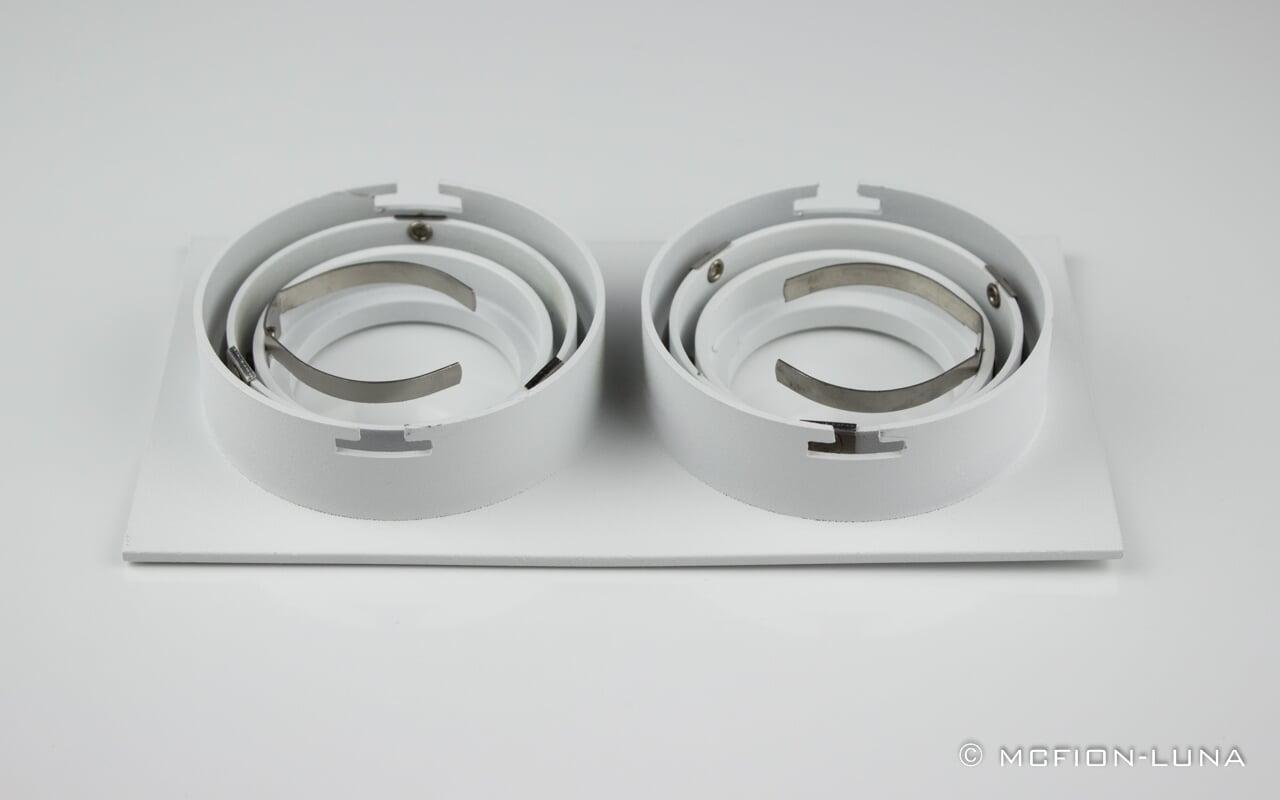

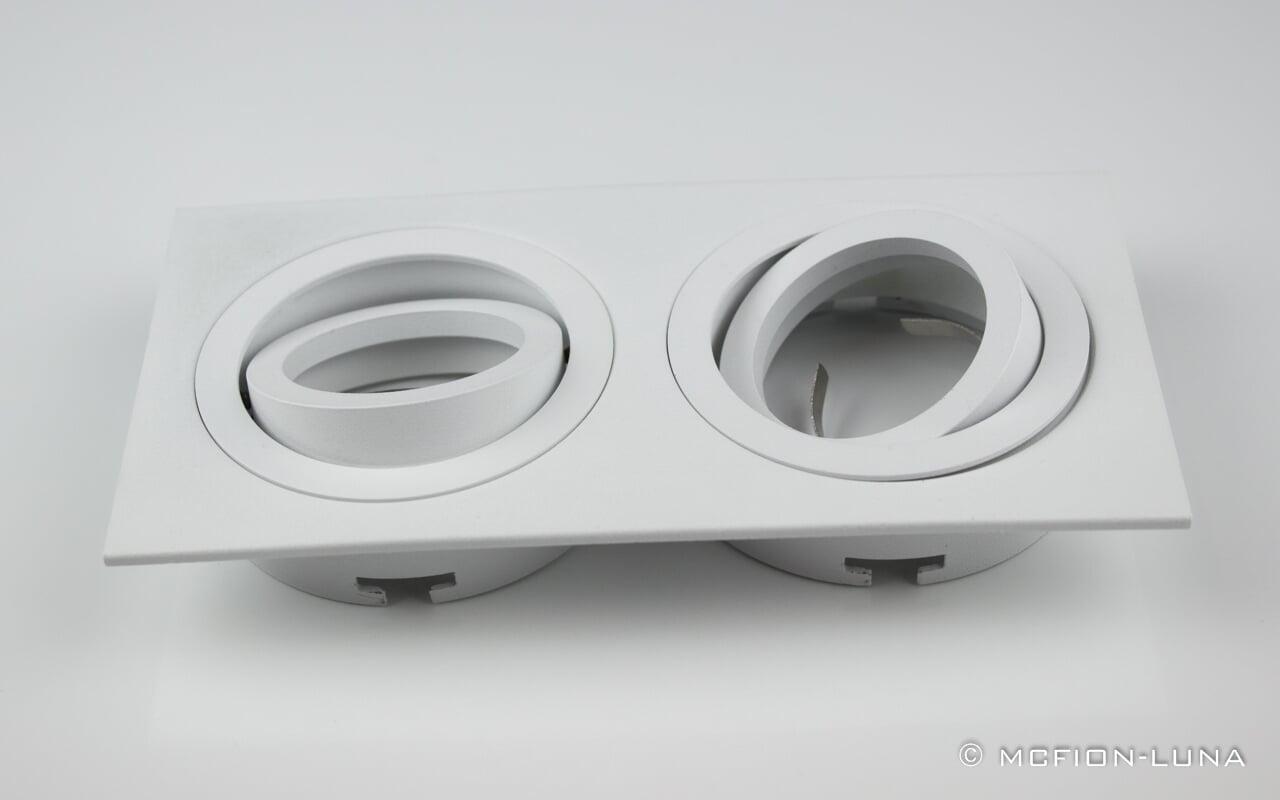

SPECIFICATIONS FOR " CMH-LXT27-2-W COMMERCIAL LIGHT MODULES HOUSING WHITE SQUARE ADJUSTABLE ANGLE DOUBLE "
Indoor adjustable spotlight with adapter for installation on a three-phase/DALI track. Device made of die-cast aluminium and a frontpart made of a thermoplastic material. Spotlight double adjustability allows a 360° rotation about the vertical axis and 90° tiltingrelative to the horizontal plane. Optical assembly consisting of Neutral White tone 4000K LEDs with OPTIBEAM LENS technologyand a well-defined spot light beam. Dimmable driver built-in to box with a semi-hidden system on track. Option of installing a rangeof flat accessories including an OPTIBEAM REFRACTOR for varying light distribution, an elliptical distribution refractor, a louver, asoft lens and an outdoor accessory like an asymmetric visor for eliminating stray light dispersion on the ceiling.

LN-CMH-LXT27-2-W

  • Max.
  • CREE CRI93
  • Beam angle 15/24/40
  • Mesh control, 0-10V, DALI optional

Need more help？

Inquiry Now
Electrical
LEDs
Optical
Materials
Downloads
On request
Electrical

Power:*


Input Voltage:

AC220-240V, or AC100-250V optional

Dimming：

On/Off, TRIAC, 0/1-10V, DALI optional

Class：

III SELV

Ambient Temperature：

0 - 40℃

Relative humidity：

<85%

LEDs

LED Brand:


LED Chip Qty:


LED Type:


C.C.T.：

3000K, 4000K, 6000K

Color Randering Index:

>80,>90

Lumen Maintenance:

LM80

SDCM:


Optical

Beam Angle:

0°-24°

Luminous Flux (LED):*


Lumen Efficiency(LED)：*


Luminous Flux (Luminare):*


Lumen Efficiency (Luminare):*


Materials

Body & Heatsink:

Die-casting Aluminum

Optics:

Optical PMMA

Installation:

Ceiling recessed, Thickness, Max. 25mm.

Surface Treament:

Powder-coated, Ring: sanded white

Housing Color:

Sanded white

IP Grade:

IP20

Size:

L175xW91mm

Cutout:


Certificates:

CE

Downloads
Product Specification Download
On request

- different power, CRI, C.C.T..

- other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.

- other Drivers, OSRAM, PHILIPS, Meanwell, KEGU, Lifud, etc.

- dimming functions: TRIAC, 0/1-10V, DALI, Mesh, 2.5G

- emergency kit with specific duration.
