CMG-TS Spotlight
EMBEDDED TELESCOPIC SPOTLIGHTS 25W
 EMBEDDED TELESCOPIC SPOTLIGHTS CRXLS-LY1
The lamp shell is made of efficient aluminum die-casting aluminum material, , the surface is white spray treatment, fadeless, corrosion resistant, minimalist appearance design, large light range, no dead Angle of light beam 360° rotating irradiation goods expansion, horizontal rotation, expansion at will.
This product uses CREE/OSRAM SMD high-power LED chip and high quality isolation circuit power supply drive to ensure reliable quality.
The series offers a variety of optical effects :12/24/38/ corner, wall wash effect, anti-glare design, LUNA LED strobe control to invisible category, making the light more delicate and even, making the visual experience of human eyes more soft and natural, making families comfortable and at ease.
Application
This series of products can be used in shopping malls, shopping centers, exhibition halls, offices and other places, with high CRI, soft, warm, comfortable lighting effects.

LN-CRXLS-LY1

  • Max. 25W, 15-25W optional
  • CREE CRI93
  • Beam angle 12/24/38
  • Mesh control, 0-10V, DALI optional

Need more help?

Electrical
LEDs
Optical
Materials
Downloads
On request
Electrical

Power:*

25W Max.  15-25W optional

Input Voltage:

AC220-240V

Dimming:

On/Off, TRIAC, 0/1-10V, DALI Mesh

Class:

III SELV

Ambient Temperature:

0 - 40℃

Relative humidity:

<85%

LEDs

LED Brand:

CREE, OSRAM PHILIPS

LED Chip Qty:

1pcs

LED Type:

COB

C.C.T.:

3000K, 4000K, 6500K

Color Randering Index:

>80>90

Lumen Maintenance:

LM80

SDCM:

4

Optical

Beam Angle:

12°/24°/38°

Luminous Flux (LED):*

3000lm

Lumen Efficiency(LED):*

120lm/W

Luminous Flux (Luminare):*

1875lm (at 24°)

Lumen Efficiency (Luminare):*

75lm/W (at 24°)

Materials

Body & Heatsink:

Die-casting Aluminum

Optics:

Optical PMMA

Installation:

Ceiling recessed, Thickness, Max. 25mm.

Surface Treament:

Powder-coated

Housing Color:

Sanded White

IP Grade:

IP20

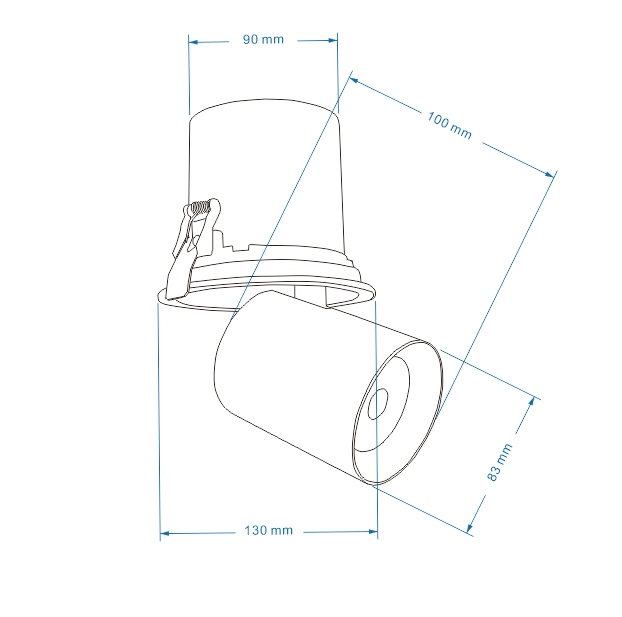

Size:

φ130mm H135mm

Cutout:

φ120mm

Certificates:

CE

Downloads
On request

- different power, CRI, C.C.T..

- other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.

- other Drivers, OSRAM, PHILIPS, Meanwell, KEGU, Lifud, etc.

- dimming functions: TRIAC, 0/1-10V, DALI, Mesh, 2.5G

- emergency kit with specific duration.

    25W Big Series

    LN-CRXLS-FL1

    Angle adjustable 25W φ120mm

    LN-CRXLS-FL2

    Angle adjustable 25*2W φ120*230mm

    LN-CRXLS-FL3

    Angle adjustable 25*3W φ120*335mm

    LN-CRXFL-YL1

    Angle adjustable 25W φ120*335mm

    12W Small Series

    LN-CRXLS-FS1

    Angle adjustable 12W φ90mm

    LN-CRXLS-FS2

    Angle adjustable 12*2W φ90*175mm

    LN-CRXLS-FS3

    Angle adjustable 12*3W φ90*260mm

    *Due to the differences in test instruments and electronic components, the specific data may vary. Please confirm the specific parameters of the lamp before ordering to avoid misunderstanding. The luminous flux data and electrical data on the website will have  +/-10% tolerance and measured at Tc 25℃ indoors.

    *Dimensions and specifications subject to alterations without notice.
