CMG-TS Spotlight

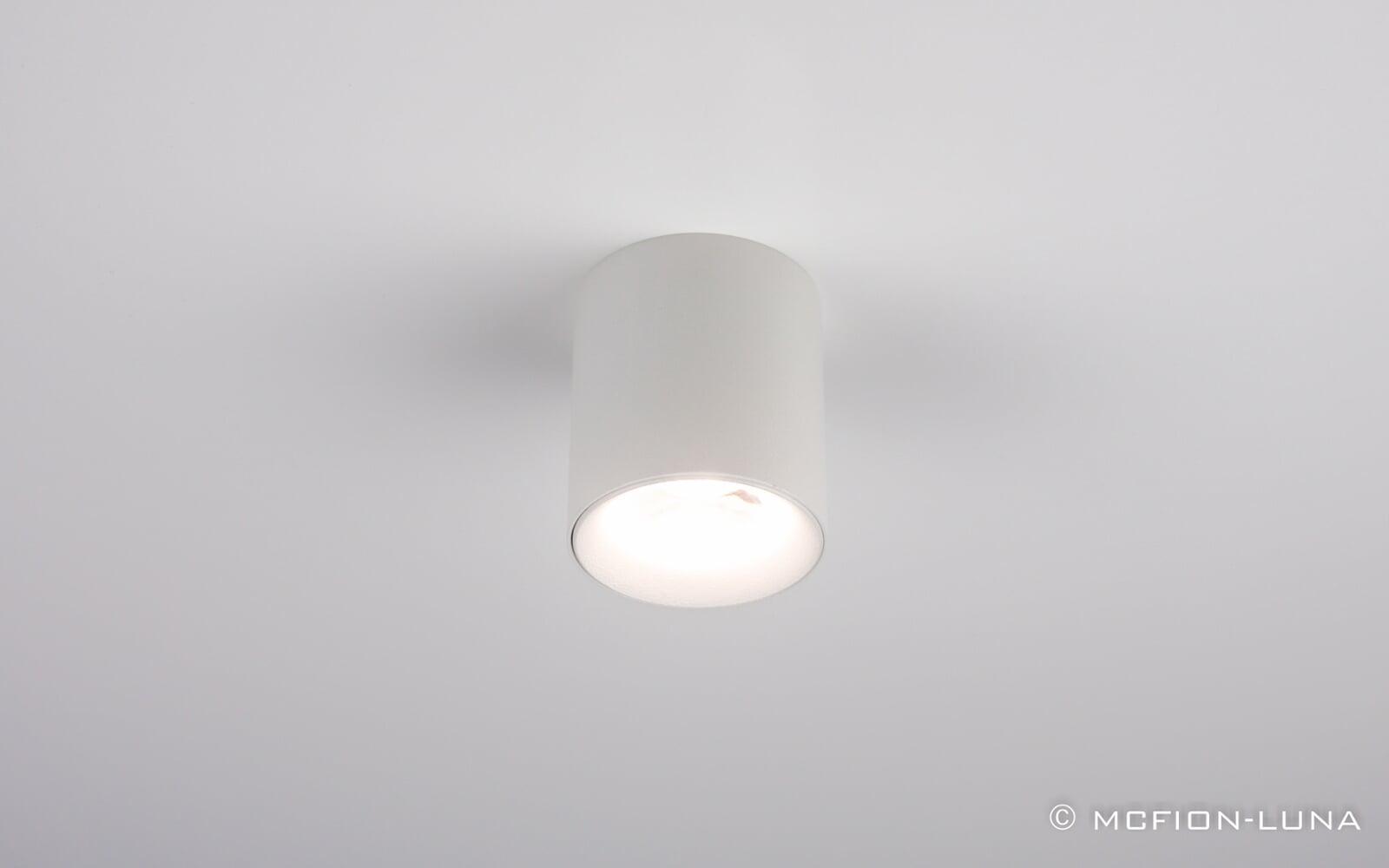

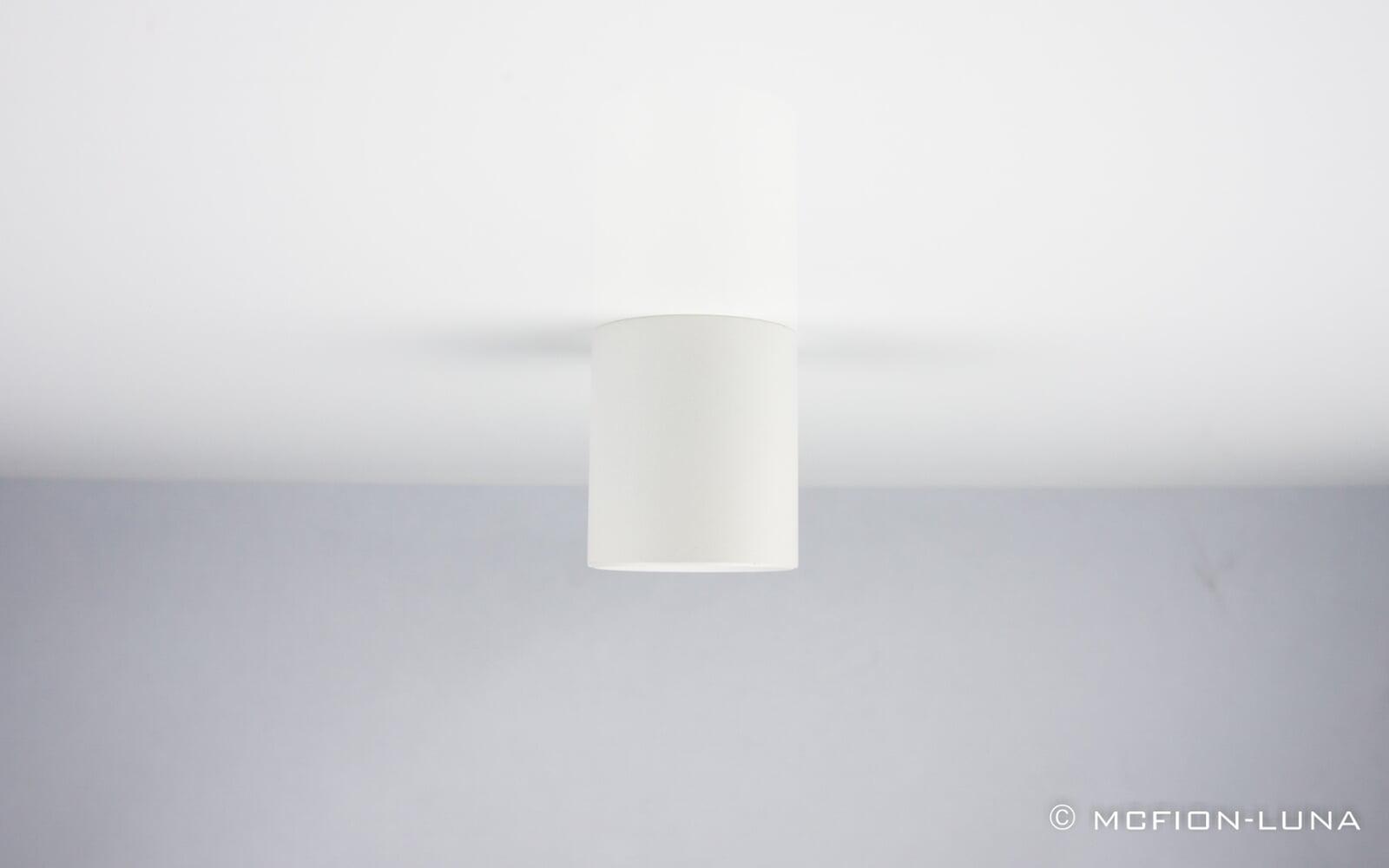

Surface Mounted Downlight 15W LN-CCM510-W
Lamp housing is using high efficient heat dissipation aluminum material,, color temperature is not drift, and the light will keep all its natural color.
with famous CREE manufacture's LED chip, and high quality power driver, to make sure its quality's stablility.
Use the whole aluminum materail structure, to make it sufficient heat dissiption, and temperature rise low.
working stable, good heat dissipation, LED's economic life is greater than 30,000 hours.
wide range of application, suitable for offices, retails shops, malls, exibitions, and so on...


Applications

architectural, commercial, exhibition areas, transit areas, corridors, shops, display windows, service areas, offices, staterooms, schools, halls, households, etc

LN-CCM510-W

  • Max. 5W
  • CREE CRI>80
  • Beam angle 15/24/36 /60

Need more help?

Electrical
LEDs
Optical
Materials
Downloads
On request
Electrical

Power:*

5W

Input Voltage:

220-240V

Dimming:

On/Off

Class:

III SELV

Ambient Temperature:

0 - 40℃

Relative humidity:

<85%

LEDs

LED Brand:

COB

LED Chip Qty:

1pcs

LED Type:

COB

C.C.T.:

3000K, 4000K, 6000K

Color Randering Index:

> 80

Lumen Maintenance:

LM90

SDCM:

4

Optical

Beam Angle:

0°-60°

Luminous Flux (LED):*

450lm

Lumen Efficiency(LED):*

90lm/W

Luminous Flux (Luminare):*

400lm (at 24°)

Lumen Efficiency (Luminare):*

80lm/W (at 24°)

Materials

Body & Heatsink:

Die-casting Aluminum

Optics:

Optical PMMA

Installation:

Ceiling surface decoration

Surface Treament:

Powder-coated, Ring: sanded white

Housing Color:

Sanded white

IP Grade:

IP20

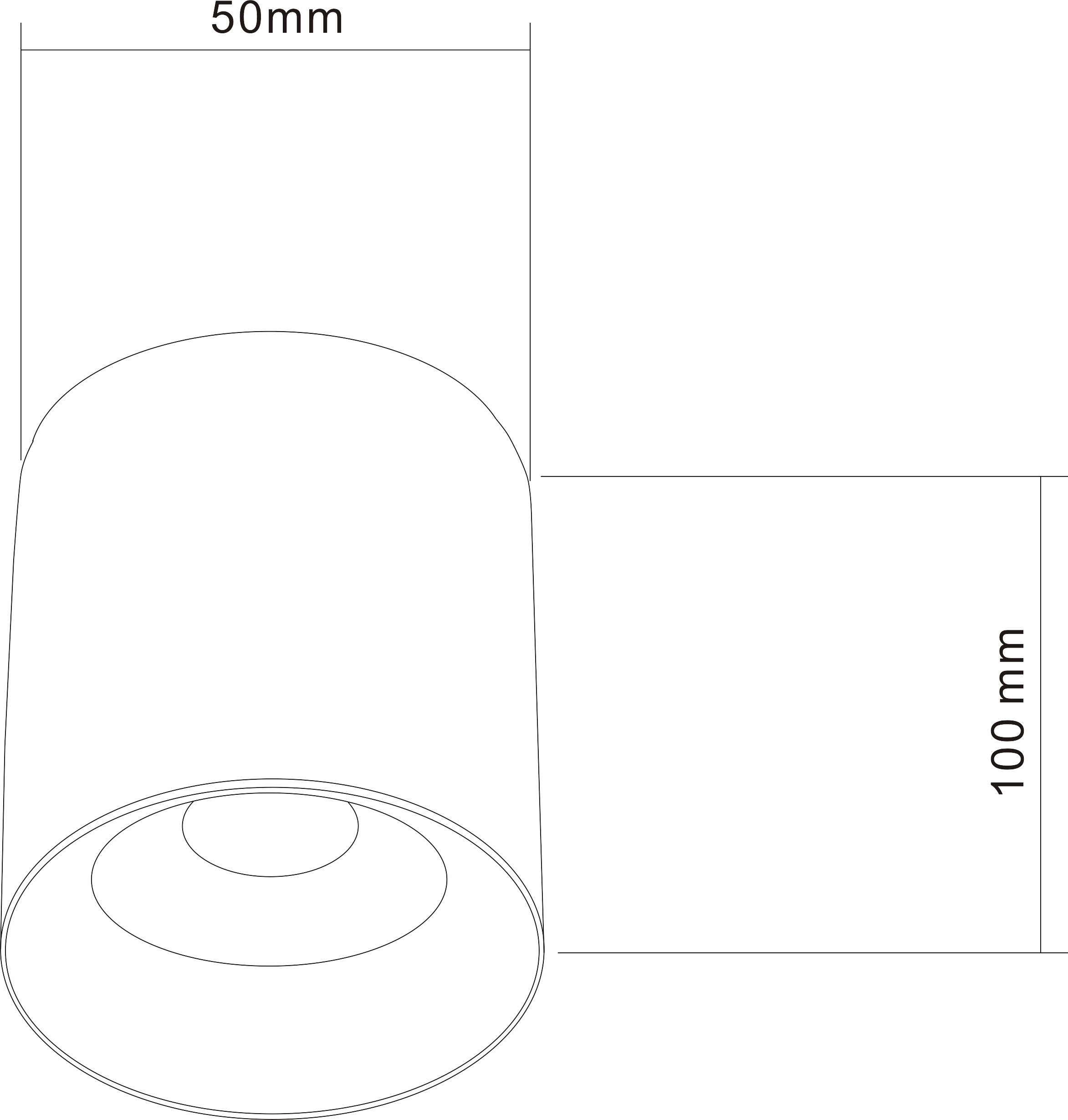

Size:


Cutout:


Certificates:

CE

Downloads
On request

- different power, CRI, C.C.T..

- other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.

- other Drivers, OSRAM, PHILIPS, Meanwell, KEGU, Lifud, etc.

- dimming functions: TRIAC, 0/1-10V, DALI, Mesh, 2.5G

- emergency kit with specific duration.

    In the same series

    LN-CCM510-W

    5W

    LN-CCM510-B

    5W

    LN-CCM810

    15W

    LN-CCM610-FG

    6W

    LN-CC610C-YG

    6W

    *Due to the differences in test instruments and electronic components, the specific data may vary. Please confirm the specific parameters of the lamp before ordering to avoid misunderstanding. The luminous flux data and electrical data on the website will have  +/-10% tolerance and measured at Tc 25℃ indoors.

    *Dimensions and specifications subject to alterations without notice.
