CMG-TS Spotlight

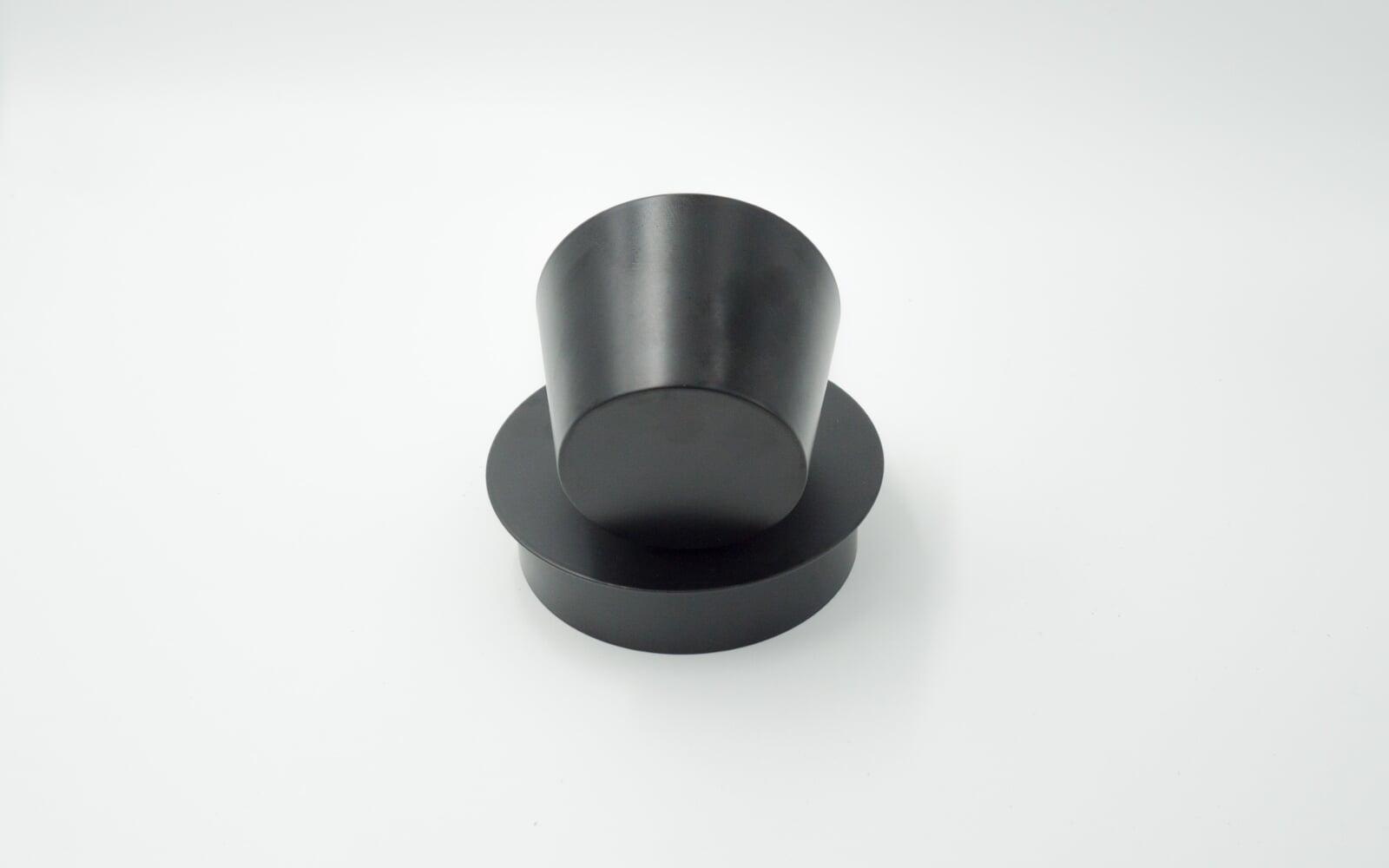

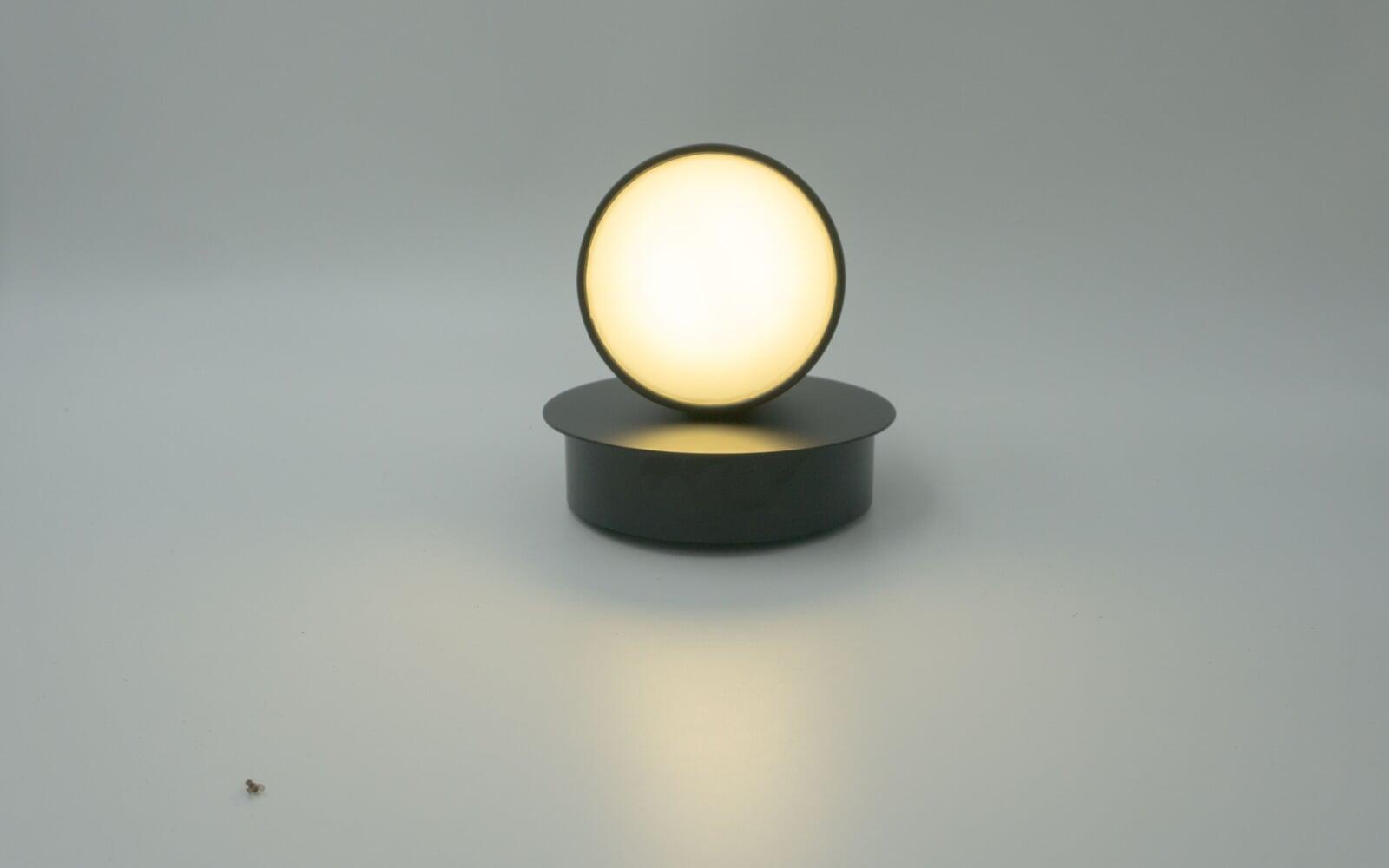

Luna lighting design hotel bedroom living room wall led hat single head black white round wall lamp
Modern fashion wall lamp, wall lamp can have a very good adornment effect, make the room more stylish and bright. The material that wall lamp place uses is the high-quality goods aluminium meterail that passes factroy strictly to choose to come out.PMMA lens, CSRAM/SANAN chips optional, long lifespan, let customers use more peace of mind. style and colortemperature is optional, can use in the living room, corridor, study room, bedroom, office etc.

LN-WZ-Circular-B1

  • Max. 7W
  • CREE CRI93
  • Beam angle 15/24/36 /60
  • Mesh control, 0-10V, DALI optional

Need more help?

Electrical
LEDs
Optical
Materials
Downloads
On request
Electrical

Power:*

7W Max

Input Voltage:

AC220-240V, or AC100-250V optional

Dimming:

On/Off, TRIAC, 0/1-10V, DALI optional

Class:

III SELV

Ambient Temperature:

0 - 40℃

Relative humidity:

<85%

LEDs

LED Brand:

San'an

LED Chip Qty:

1pcs

LED Type:

SMD

C.C.T.:

3000K, 4000K, 6000K

Color Randering Index:

>80,>90

Lumen Maintenance:

LM80

SDCM:

4

Optical

Beam Angle:

0°-45°

Luminous Flux (LED):*


Lumen Efficiency(LED):*


Luminous Flux (Luminare):*


Lumen Efficiency (Luminare):*


Materials

Body & Heatsink:

Die-casting Aluminum

Optics:

Optical PMMA

Installation:

Ceiling recessed, Thickness, Max. 25mm.

Surface Treament:

Powder-coated, Ring: sanded black

Housing Color:

Sanded black

IP Grade:

IP20

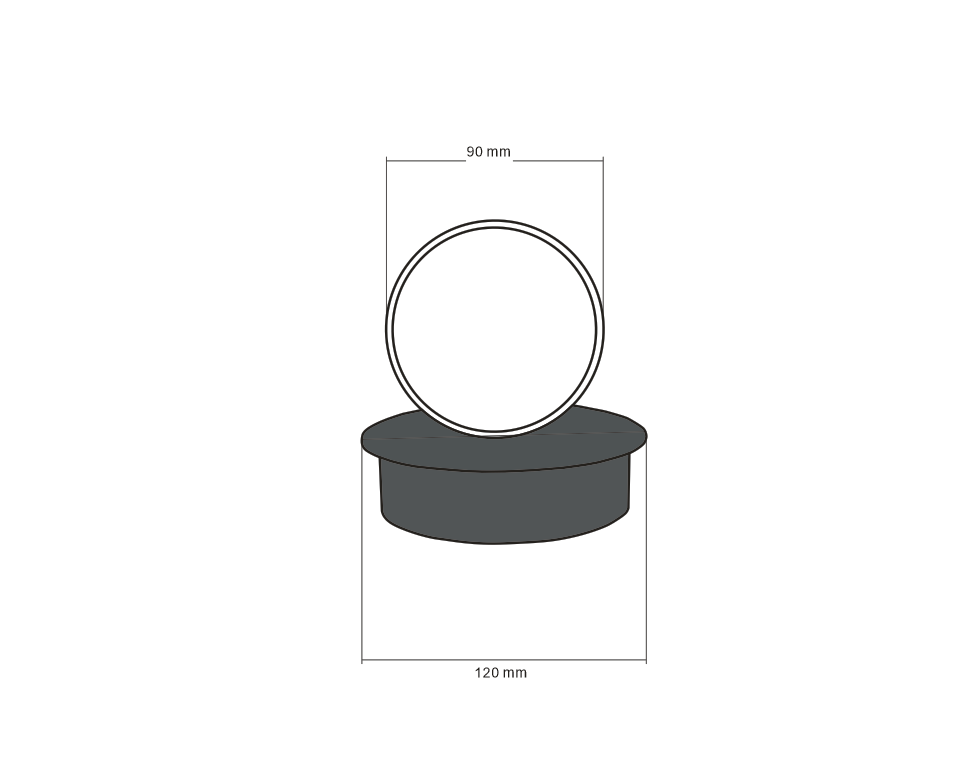

Size:

D120x90mm

Cutout:


Certificates:

CE

Downloads
On request

- different power, CRI, C.C.T..

- other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.

- other Drivers, OSRAM, PHILIPS, Meanwell, KEGU, Lifud, etc.

- dimming functions: TRIAC, 0/1-10V, DALI, Mesh, 2.5G

- emergency kit with specific duration.

    In the same series

    *Due to the differences in test instruments and electronic components, the specific data may vary. Please confirm the specific parameters of the lamp before ordering to avoid misunderstanding. The luminous flux data and electrical data on the website will have  +/-10% tolerance and measured at Tc 25℃ indoors.

    *Dimensions and specifications subject to alterations without notice.
