CMG-TS Spotlight

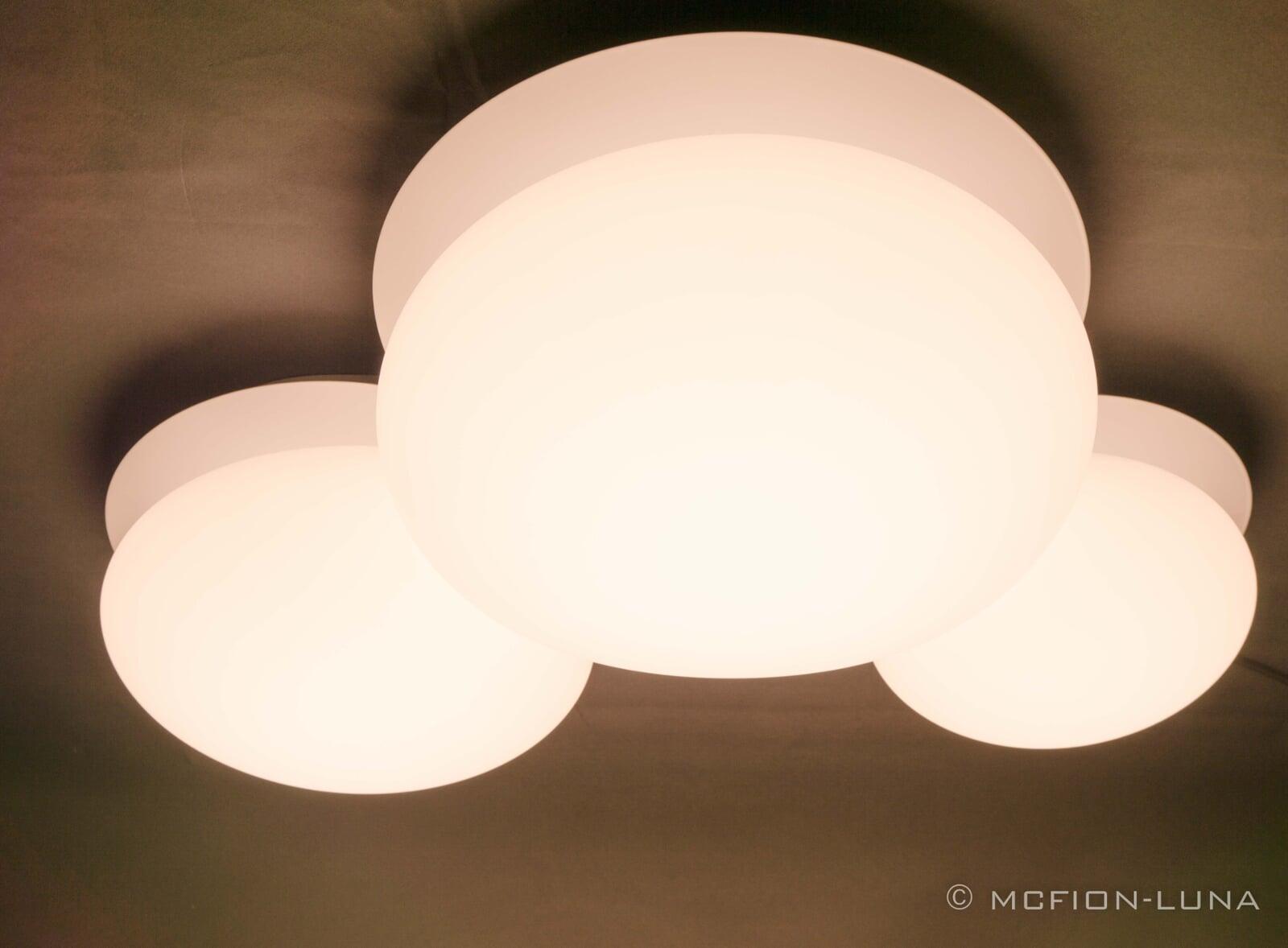

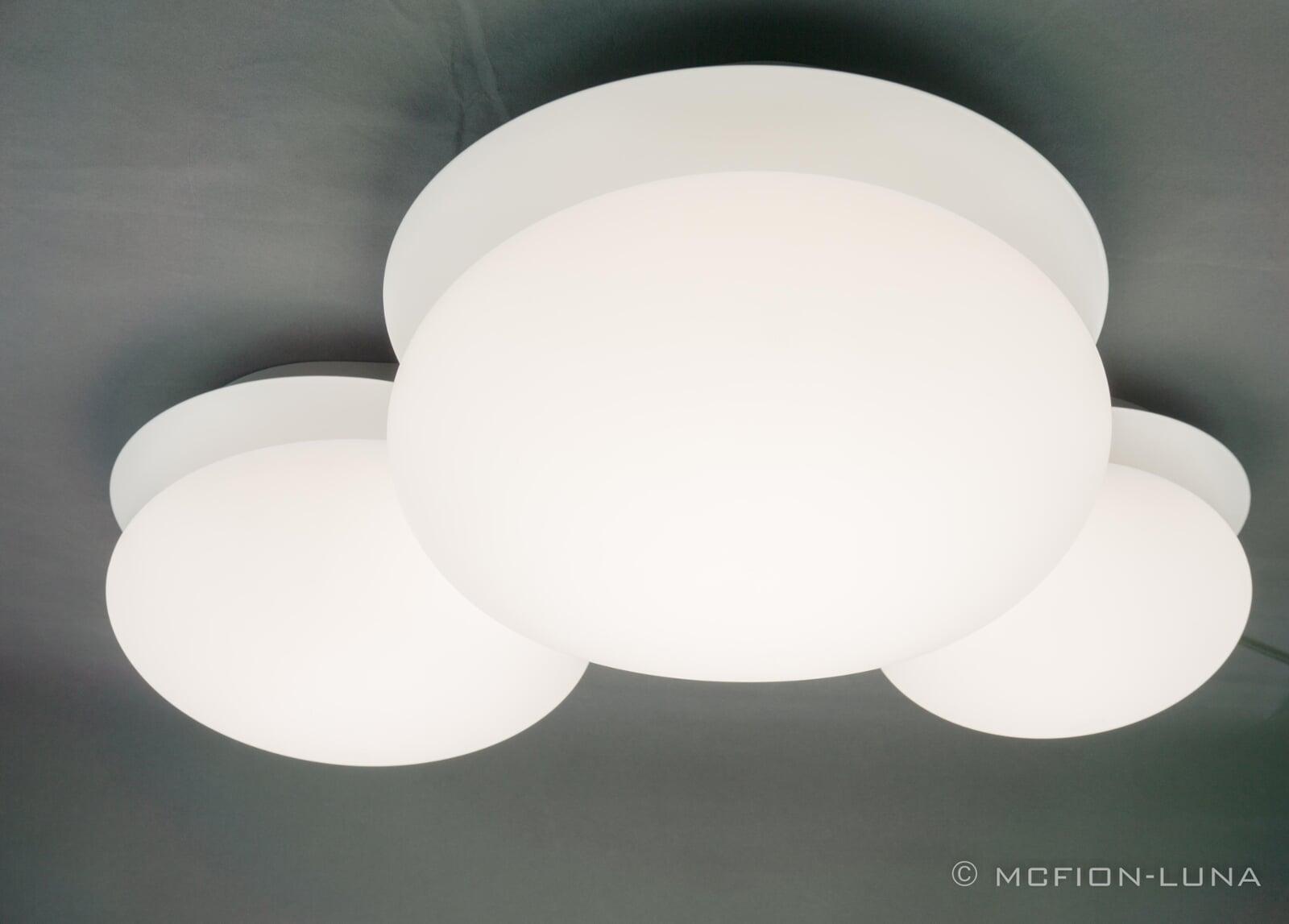

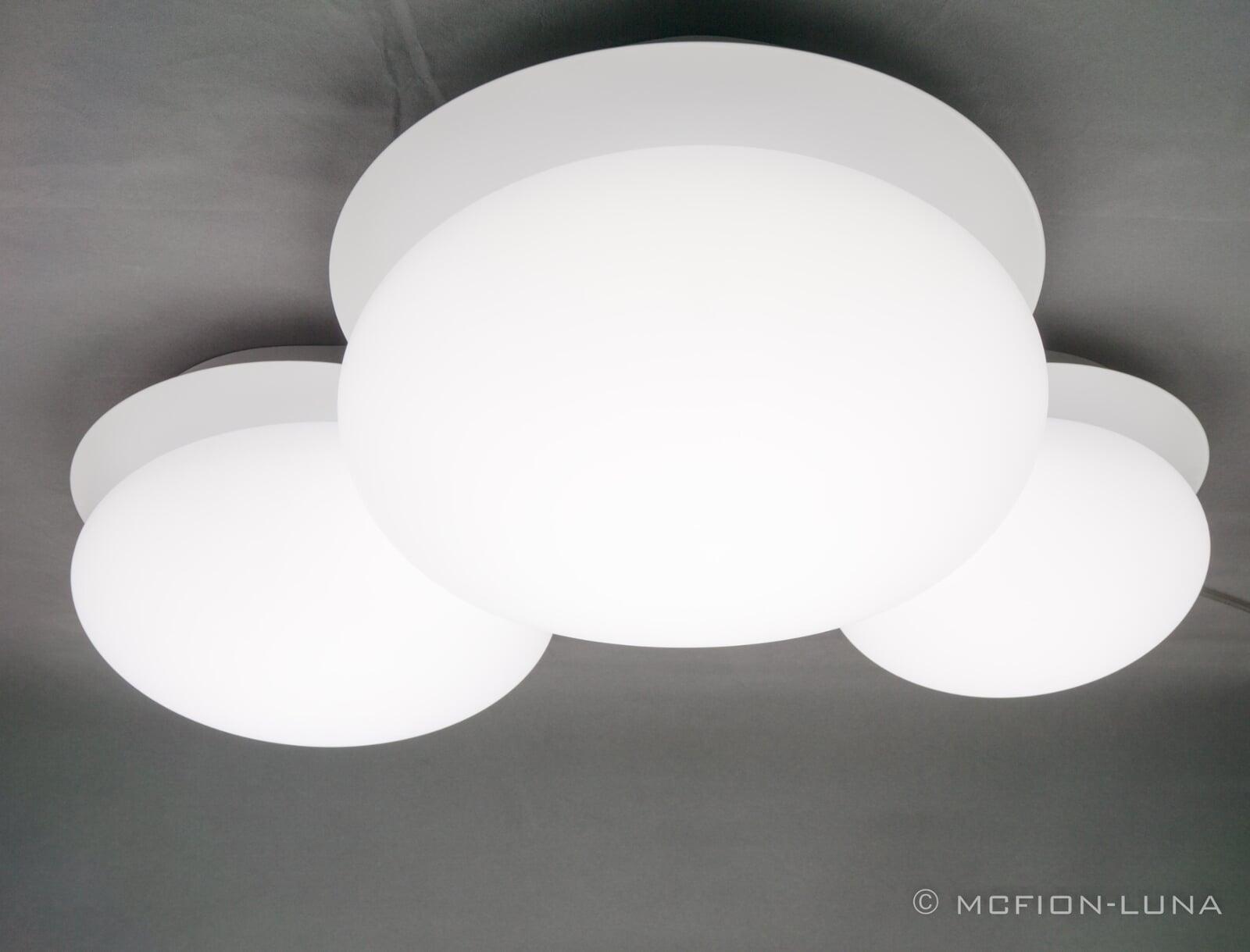

Luna lighting design hotel bedroom living room dining room dining room decorative Chandelier


LN-YAY-3RCL

  • Max. 18W, 10-18W optional
  • CREE CRI93
  • Beam angle 15/24/36

Need more help?

Electrical
LEDs
Optical
Materials
Downloads
On request
Electrical

Power:*

18W Max.  10-18W optional

Input Voltage:

AC220-240V, or AC100-250V optional

Dimming:

On/Off, TRIAC, 0/1-10V, DALI optional

Class:

III SELV

Ambient Temperature:

0 - 40℃

Relative humidity:

<85%

LEDs

LED Brand:

Light belt

LED Chip Qty:

2pcs

LED Type:

Light belt

C.C.T.:

3000K, 4000K, 6500K

Color Randering Index:

>80, or >90

Lumen Maintenance:

LM80

SDCM:

4 steps

Optical

Beam Angle:

15°, 24°, 36°

Luminous Flux (LED):*

750lm

Lumen Efficiency(LED):*

125lm/W (CRI90)

Luminous Flux (Luminare):*

390lm (at 24°)

Lumen Efficiency (Luminare):*

65lm/W (at 24°)

Materials

Body & Heatsink:

Die-casting Aluminum

Optics:

Optical PMMA

Installation:

Hoisting

Surface Treament:

silica gel

Housing Color:

golden

IP Grade:

IP20

Size:

L1250  L3400mm

Cutout:

N/A

Certificates:

CE

Downloads
On request

- different power, CRI, C.C.T..

- other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.

- other Drivers optional.

- dimming functions:  0/1-10V, DALI, Mesh optional.

- emergency kit with specific duration.
