DIY your style by Luna Climbing series
18mm diameter silicone, a perfect proportion. A 360-degree strip of light shines evenly through the bronzed metal bars. You can also customize your look to suit your tastes. Osram LED chips and drives bring stability, and good light color, will be a good choice for many leisure places.
LN-PMSC-L13-20
- Max. 25W, 15-35W optional
- CREE CRI90
- Beam angle 360°
Need more help？
Power:*
25W Max. 15-25W optional
Input Voltage:
AC220-240V, or AC100-250V optional
Dimming：
On/Off, TRIAC, 0/1-10V, DALI optional
Class：
III SELV
Ambient Temperature：
0 - 40℃
Relative humidity：
<85%
LED Brand:
OSRAM
LED Chip Qty:
768pcs
LED Type:
SMD2835
C.C.T.：
2700K, 3000K, 4000K, 6500K
Color Randering Index:
>80, or >90
Lumen Maintenance:
LM80
SDCM:
4 steps
Beam Angle:
360°
Luminous Flux (LED):*
2800lm
Lumen Efficiency(LED)：*
125lm/W (CRI90)
Luminous Flux (Luminare):*
2000lm (at 24°)
Lumen Efficiency (Luminare):*
80lm/W (at 24°)
Body & Heatsink:
Metal
Optics:
Optical Silicon
Installation:
Hanging
Surface Treament:
Electroplating
Housing Color:
IP Grade:
IP20
Size:

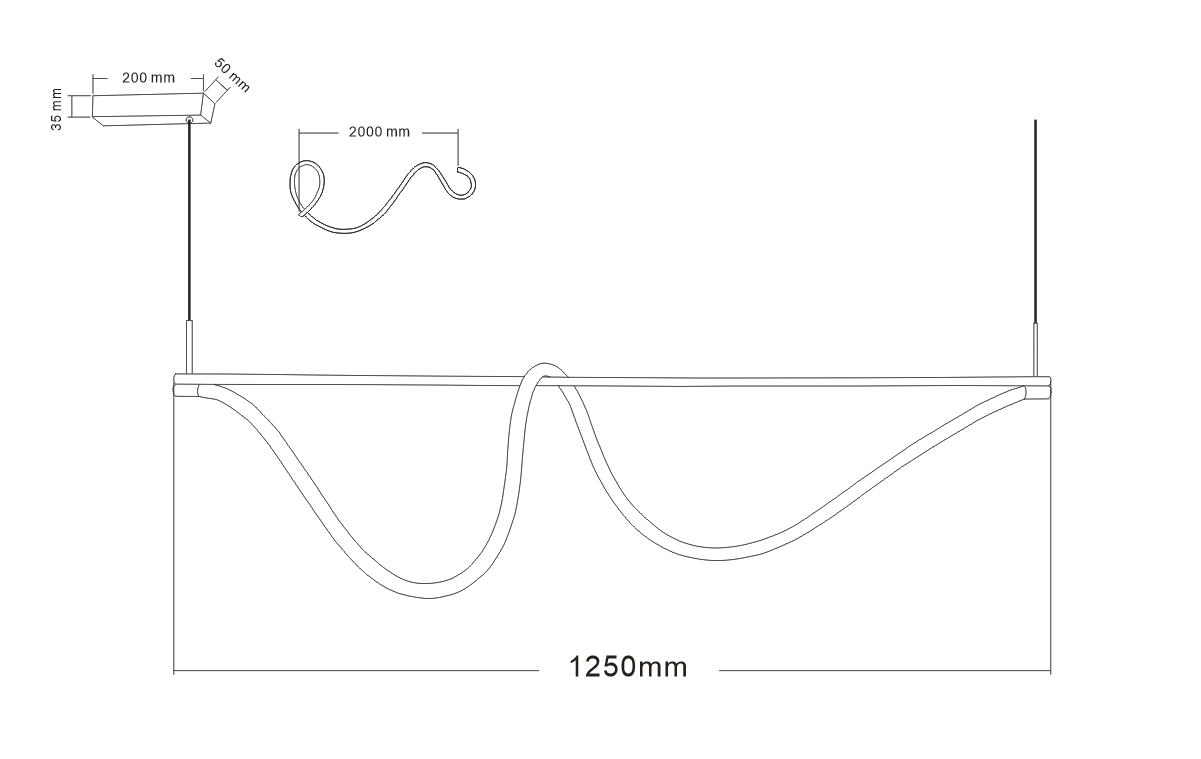

metal: L1250mm; tube; L2000mm
Cutout:
N/A
Certificates:
CE
- different power, CRI, C.C.T..
- other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.
- other Drivers optional.
- dimming functions: 0/1-10V, DALI, Mesh optional.
- emergency kit with specific duration.
