CMG-TS Spotlight
Ceiling Mounted Square Linear Spotlight
Ceiling Mounted Square Linear Spotlight
The lamp shell is made of efficient aluminum die-casting aluminum material,
with a slim black housing and a sharp square frame design , giving people a sense of modern and fashion.
This product uses CREE/OSRAM SMD high power LED chip and high quality isolated circuit power supply driver,
high heat efficiency die-casting aluminum housing, colorfast surface treatment, corrosion resistance, ensuring reliable quality.
This series of products offer various optical effect options: 15/30/45 spot angles, wall washer effect,
and all come with anti-glare design, an inheritance of LUNA‘s professional commercial lighting ideas.

Applications

By rendering high CRI, gentle, warm and satisfied lighting effects, this product line can be used in stores, shopping centers, exhibition halls, offices, etc

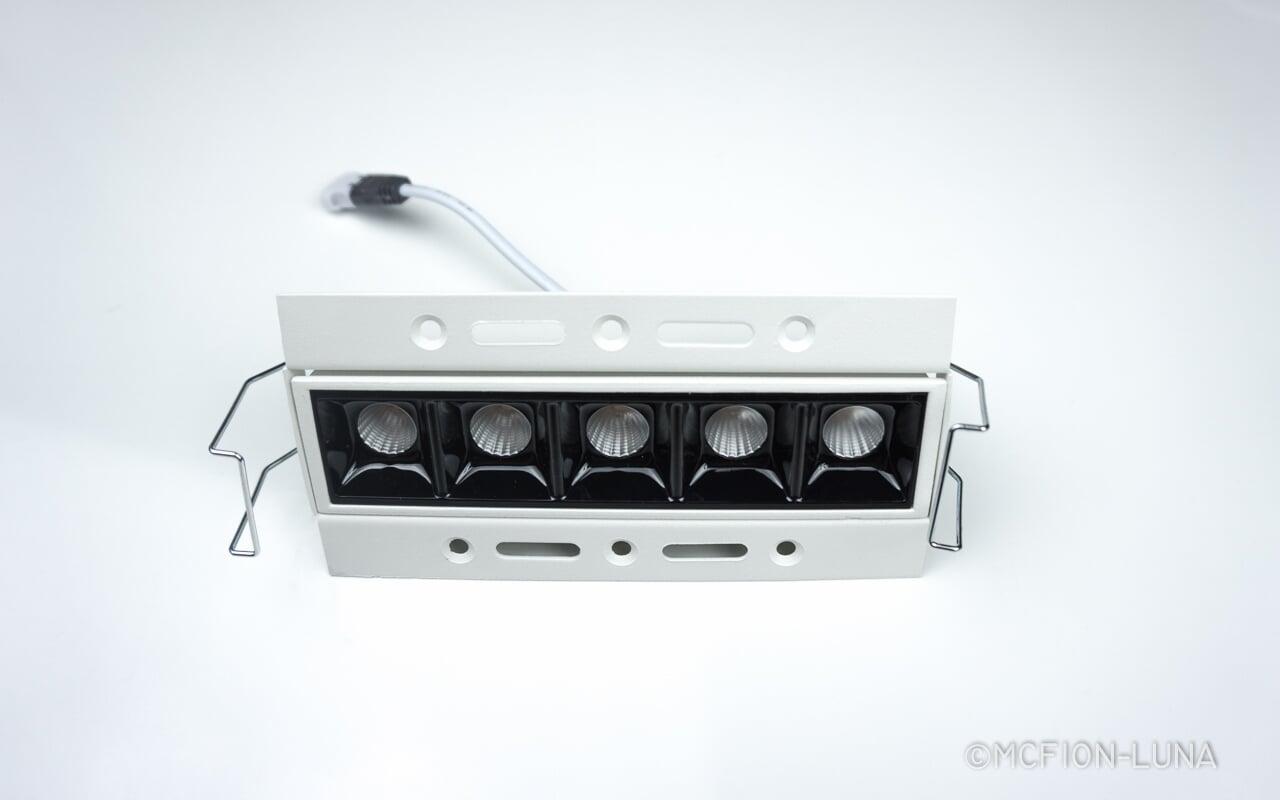

CROLINE-F-M5

  • Max. 10W. 5-10Woptional
  • CREE CRI90
  • Beam angle 15/30/45
  • TRIAC, 0/1-10V, DALI optional

Need more help?

Electrical
LEDs
Optical
Materials
Downloads
On request
Electrical

Power:*

10W Max.  5-10W optional

Input Voltage:

AC220-240V, or AC100-250V optional

Dimming:

On/Off, TRIAC, 0/1-10V, DALI optional

Class:

III SELV

Ambient Temperature:

0 - 40℃

Relative humidity:

<85%

LEDs

LED Brand:

CREE, OSRAM optional

LED Chip Qty:

5pcs

LED Type:

SMD3030

C.C.T.:

3000K, 4000K, 6500K

Color Randering Index:

>90

Lumen Maintenance:

LM80

SDCM:

4

Optical

Beam Angle:

15°, 30°, 45°

Luminous Flux (LED):*

1088lm

Lumen Efficiency(LED):*

125lm/W

Luminous Flux (Luminare):*

650lm (at 24°)

Lumen Efficiency (Luminare):*

65m/W (at 24°)

Materials

Body & Heatsink:

Die-casting Aluminum

Optics:

Optical PMMA

Installation:

Ceiling mounted

Surface Treament:

Powder-coated, sanded black

Housing Color:

Sanded black

IP Grade:

IP20

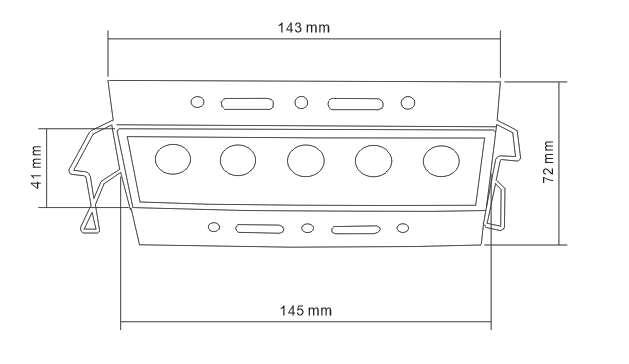

Size:

L141mm. W36mm. H50mm

Cutout:

L145mm. W40mm

Certificates:

CE

Downloads
On request

- different power, CRI, C.C.T..

- other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.

- other Drivers, OSRAM, PHILIPS, Meanwell, KEGU, Lifud, etc.

- dimming functions: TRIAC, 0/1-10V, DALI, Mesh, 2.5G

- emergency kit with specific duration.

    *Due to the differences in test instruments and electronic components, the specific data may vary. Please confirm the specific parameters of the lamp before ordering to avoid misunderstanding. The luminous flux data and electrical data on the website will have  +/-10% tolerance and measured at Tc 25℃ indoors.

    *Dimensions and specifications subject to alterations without notice.
