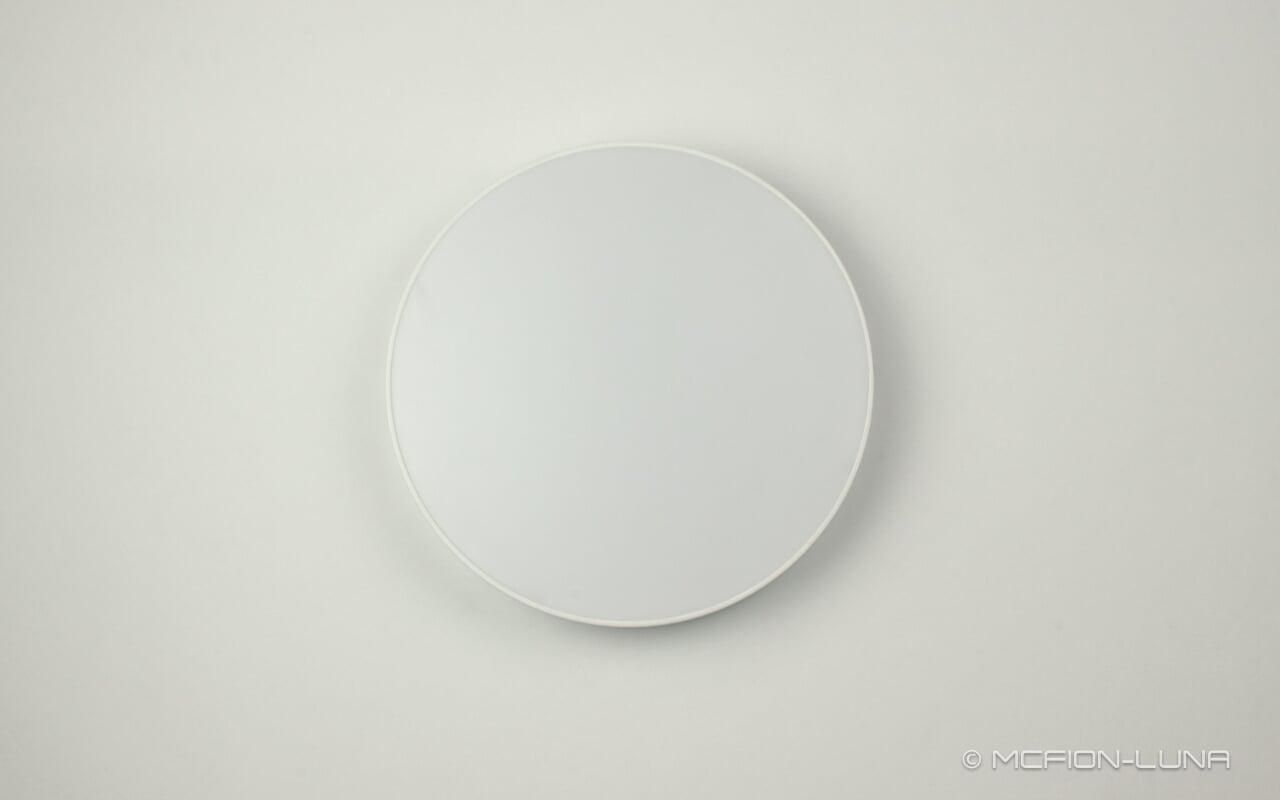

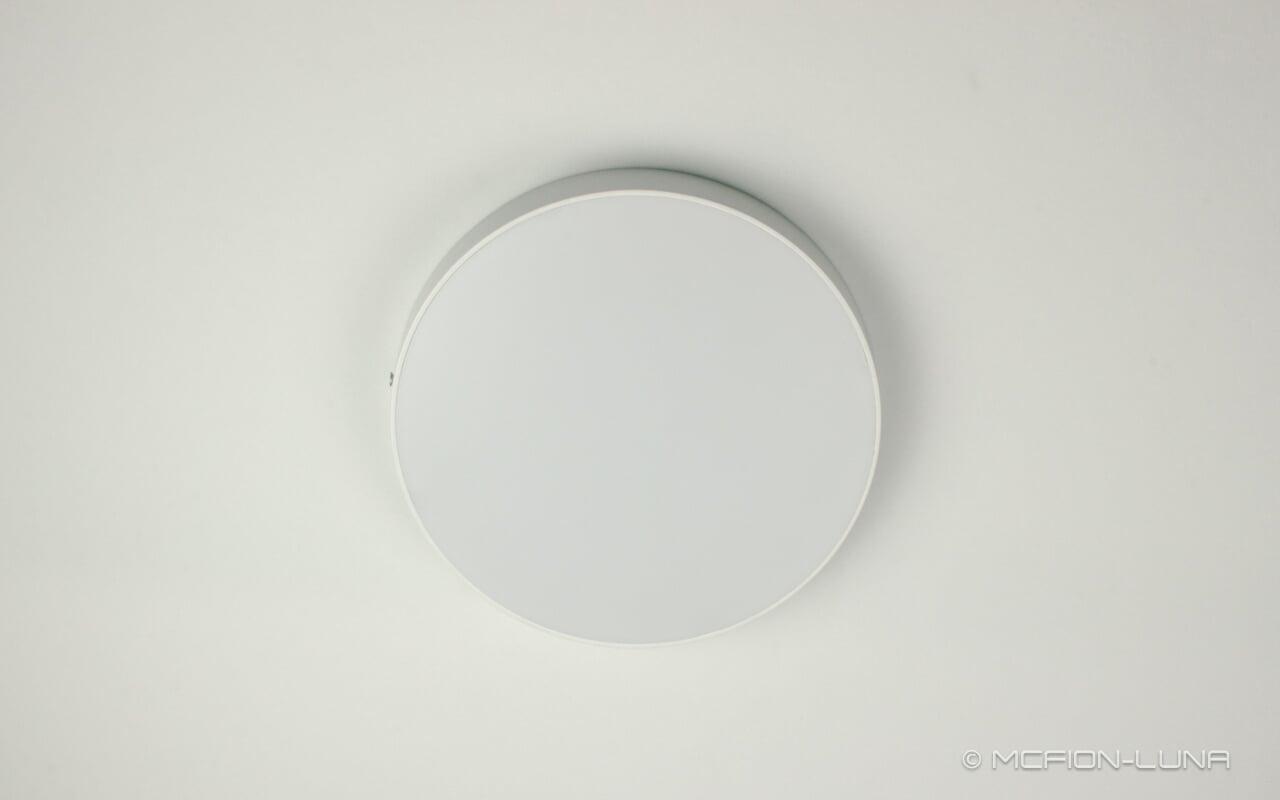

Surface Mounted Downlight   15W LN-CCLFP-Y
This series of lamp using a chess concept. It's a single cylinder shape. Using aluminum body and PMMA cover, and have total four difference shapes in a series, in black & white housing, easy installation, using Samsung/LG SMD chips.


Applications

architectural, commercial, exhibition areas, transit areas, corridors, shops, display windows, service areas, offices, staterooms, schools, halls, households, etc

LN-CCLFP-Y

  • Max. 15W
  • CREE CRI>80
  • Beam angle 15/24/36 /60

Need more help?

Electrical
LEDs
Optical
Materials
Downloads
On request
Electrical

Power:*

15W

Input Voltage:

220-240V

Dimming:

On/Off

Class:

III SELV

Ambient Temperature:

0 - 40℃

Relative humidity:

<85%

LEDs

LED Brand:

SMD5630

LED Chip Qty:

1pcs

LED Type:

SMD

C.C.T.:

3000K, 4000K, 6000K

Color Randering Index:

> 80

Lumen Maintenance:

LM80

SDCM:

4

Optical

Beam Angle:

0°-45°

Luminous Flux (LED):*

1250lm

Lumen Efficiency(LED):*

125lm/W

Luminous Flux (Luminare):*

875lm (at 24°)

Lumen Efficiency (Luminare):*

70lm/W (at 24°)

Materials

Body & Heatsink:

Die-casting Aluminum

Optics:

Optical PMMA

Installation:

Ceiling surface decoration

Surface Treament:

Powder-coated, Ring: sanded white

Housing Color:

Sanded white

IP Grade:

IP20

Size:

φD120mm, H55mm

Cutout:


Certificates:

CE

Downloads
On request

- different power, CRI, C.C.T..

- other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.

- other Drivers, OSRAM, PHILIPS, Meanwell, KEGU, Lifud, etc.

- dimming functions: TRIAC, 0/1-10V, DALI, Mesh, 2.5G

- emergency kit with specific duration.

    In the same series

    LN-CCM125-C1

    15W φ D(123-136)*55mm

    LN-CCM125-C2

    15W φ D(120-135)*55mm

    LN-CCM125-C3

    15W φ D126*55mm

    LN-CCM125-C4

    15W φ D120*55mm

    *Due to the differences in test instruments and electronic components, the specific data may vary. Please confirm the specific parameters of the lamp before ordering to avoid misunderstanding. The luminous flux data and electrical data on the website will have  +/-10% tolerance and measured at Tc 25℃ indoors.

    *Dimensions and specifications subject to alterations without notice.
